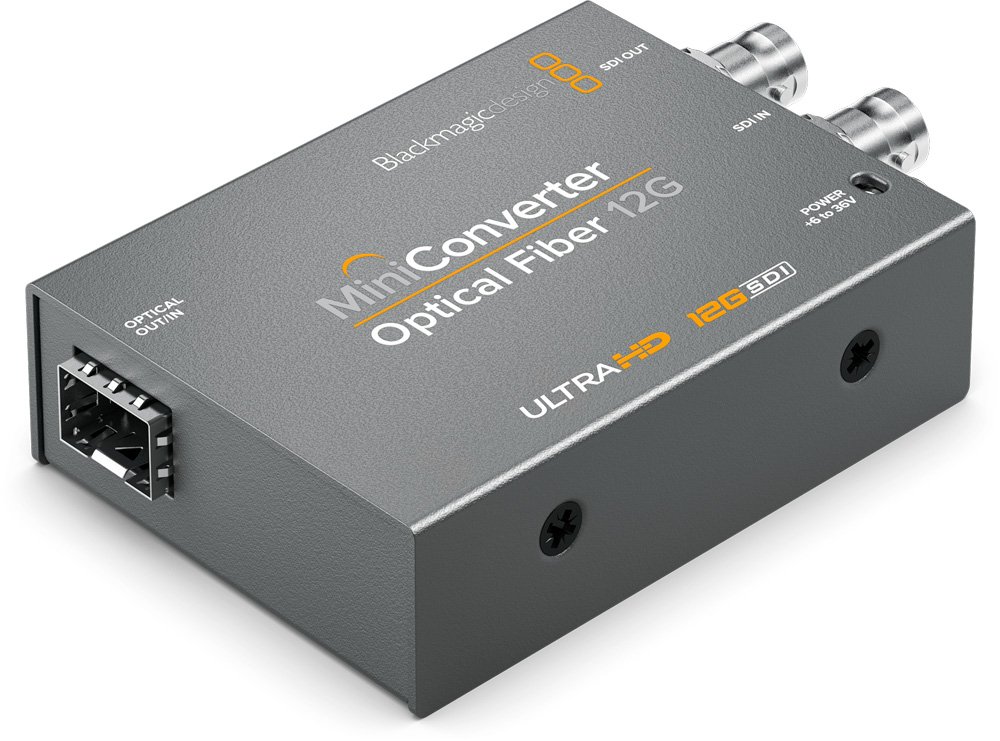

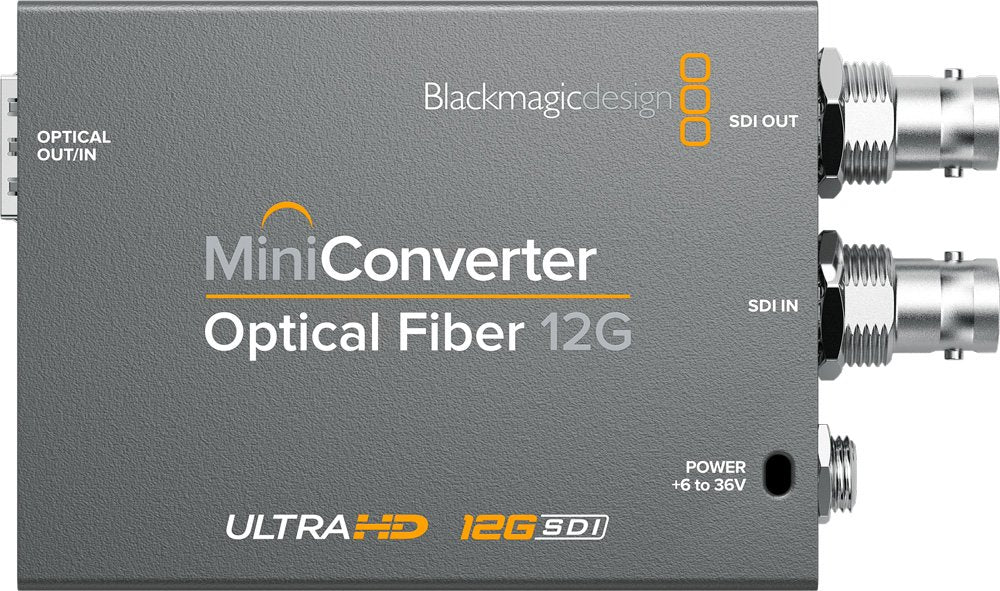

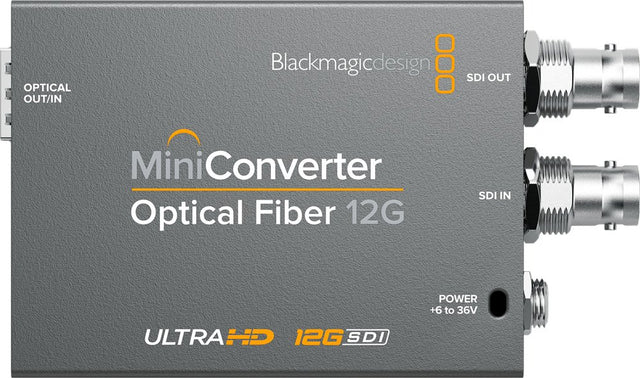

Blackmagic Design Mini Converter - Optical Fiber 12G
UPC/EAN #9338716005400
MPN #CONVMOF12G
Broadcast video converter for 12G-SDI conversion to optical fiber in both directions compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60
The world?s smallest USB powered broadcast converters!
The new Blackmagic Micro Converters are incredibly tiny broadcast video converters that let you connect between consumer HDMI and professional SDI equipment. The rugged and miniaturized design makes them small enough to be used anywhere! You get professional 3G-SDI or 12G-SDI connections, depending on the models, so you can work with SD, HD and Ultra HD formats up to 2160p60. Micro Converters use USB for power, so they can be powered directly from televisions or laptop computers. You can even purchase them without power supplies! Only Blackmagic Micro Converters feature custom electronics that conform to global broadcast specifications, and can be updated to new standards in the future.
Pocket sized broadcast quality converters!
Blackmagic Micro Converters are so small you can use them anywhere! That means it?s always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them to turn any computer display, television or video projector into a high quality color calibrated broadcast monitor. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending HDMI long distances using SDI.
Precision engineered broadcast grade converters!
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has the highest quality broadcast industry standard SDI and HDMI connectors. Blackmagic Micro Converters include a USB connection for power, as well as for changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.
Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction! The 12G-SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. You can install any standard 3G, 6G or 12G-SDI SFP optical fiber module so you can send SDI using the same low cost optical fiber cables that are commonly used for computer networks.
Features
Compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60Converts SDI to optical fiber and optical fiber to SDI in both directions at the same timeCompatible with any standard 3G, 6G or 12G-SDI SFP optical fiber moduleAutomatically matches the SD, HD and 12G-SDI video input on the Optical FiberAuto detection of SD, HD or 12G-SDI
Specifications
SDI Video Inputs
1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
SDI Video Outputs
Automatically matches the SD, HD and 12G-SDI video input on the Optical Fiber.
Optical Fiber Connection (optional)
1 x SMPTE optical fiber SFP socket.
Optical fiber SFP module sold separately.
Optical Fiber Video Inputs
1 x 10 bit SD/HD/12G-SDI switchable.
Optical Fiber Video Outputs
Automatically matches the SD, HD and 12G-SDI video input.
Optical Fiber Audio Inputs
16 channel embedded.
Optical Fiber Audio Outputs
16 channel embedded.
Multi Rate Support
Auto detection of SD, HD or 12G-SDI.
Reclocking
Yes
