Blackmagic Design MultiView 16
UPC/EAN #9338716002850
MPN #HDL-MULTIP6G/16
Multi-view monitoring box with 10-bit SD-SDI, HD-SDI and 6G'SDI I/O, full frame re-sync on each input, router style controls on the front panel, LCD, and SRC/VIEW buttons
Now you can monitor multiple SDI sources on an HD or Ultra HD display or TV!
Blackmagic MultiViews are the world's first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re'synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!
MultiView 16
Simultaneously view up to 16 independent SD, HD and Ultra HD sources!

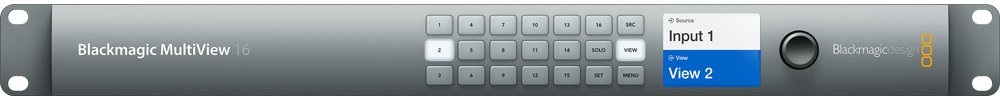

MultiView 16 is perfect for larger installations because it has 16 independent 6G-SDI inputs so you can connect any combination of SD, HD or Ultra HD sources and monitor them all simultaneously on a single display! Router style controls on the front panel, along with the LCD and spin knob, let you adjust settings, route sources to different views, add overlays and more. Output can be set to a 2x2, 3x3 or 4x4 grid, and you can even SOLO any source full screen!
Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.
Studio or Live Use!
Multi source monitoring designed for broadcasters
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don't have room for multiple monitors. With Blackmagic MultiViews you don't need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!
Independent Monitoring
Mix any combination of SD, HD and Ultra HD sources
Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re'synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one!
High Resolution Monitoring
The world's highest resolution multi viewer!
All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!
Advanced Monitoring Tools
Custom labels, tally, audio meters and more!
Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.
Multi Rate SDI Connections
Supports all of your SD, HD and Ultra HD equipment!
Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment. The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.
Features
Display up to 16 SDI sources on a single HD or Ultra HD display via SDI or HDMI.16 multi rate 6G-SDI inputs with loop thru, compatible with all SD, HD and Ultra HD equipment.Automatic frame re-synchronization allows simultaneous display of mixed SD, HD and Ultra HD formats.Choose from solo, 2x2, 3x3 or 4x4 grid views.Supported output resolutions: 1920 x 1080 and 3840 x 2160.
Specifications

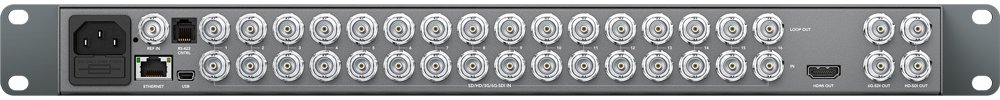

Connections
SDI Video Inputs
16 x 10-bit SD-SDI, HD-SDI and 6G'SDI.
SDI Video Outputs
16 x 10-bit SD-SDI, HD-SDI and 6G'SDI.
SDI Rates
270Mb, 1.5G, 3G, 6G.
SDI Video Multi View Outputs
2 x 10-bit HD-SDI, 2 x 10 bit 6G'SDI.
HDMI Video Multi View Outputs
1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G'SDI video.
Reference Input
Black Burst and Tri-Sync for SD, HD and 4K.
Multi Rate Support
Auto detection of SD, HD or 6G'SDI. Simultaneous viewing of 4K, HD and SD video.
Updates
USB 2.0 high speed (480Mb/s) interface or via Ethernet.
Configuration
Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
What's Included:
Blackmagic MultiView 16
Welcome wallet with QR code for software download
