UPC/EAN #9338716005424     MPN #HDL-MULTIP3G/04HD


Free shipping in Canada. Conditions

Multi-view monitoring box with 4 x 10-bit SD-SDI and HD-SDI inputs, both SDI and HDMI outputs, and SDI reclocking

Now you can monitor multiple SDI sources on an HD or Ultra HD display or TV!
Blackmagic MultiViews are the world's first native Ultra HD multi viewers that let you monitor completely independent SDI video sources on a single HD or Ultra HD display! With full frame re'synchronization on every input, you can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time, on the same display. When used with an Ultra HD television, the quad split view gives you four full resolution 1080 HD monitors on a single screen! You also get on screen audio meters, custom view labels and much more!

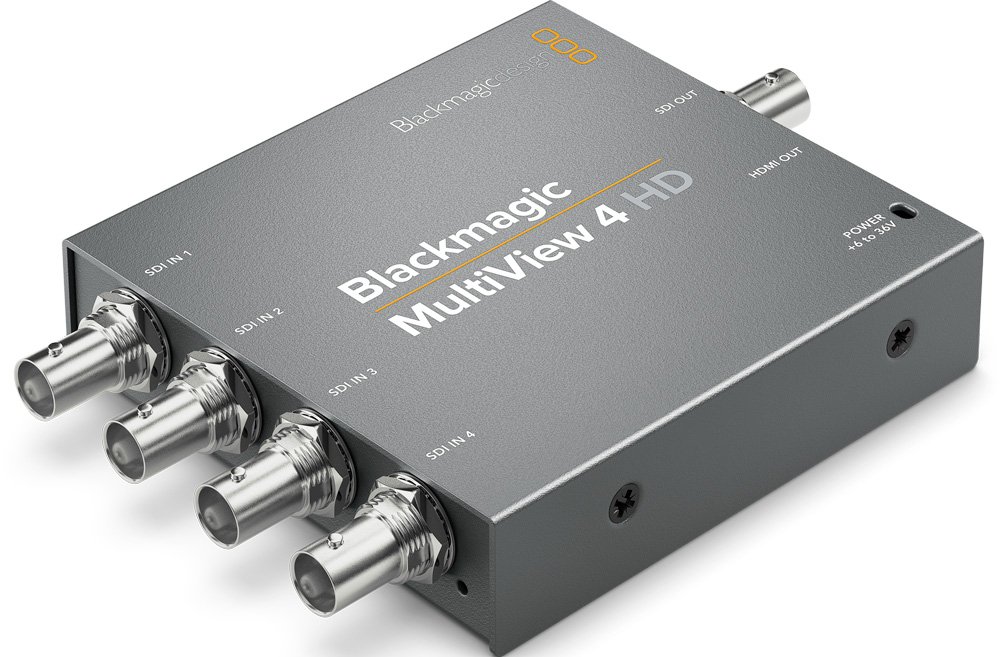

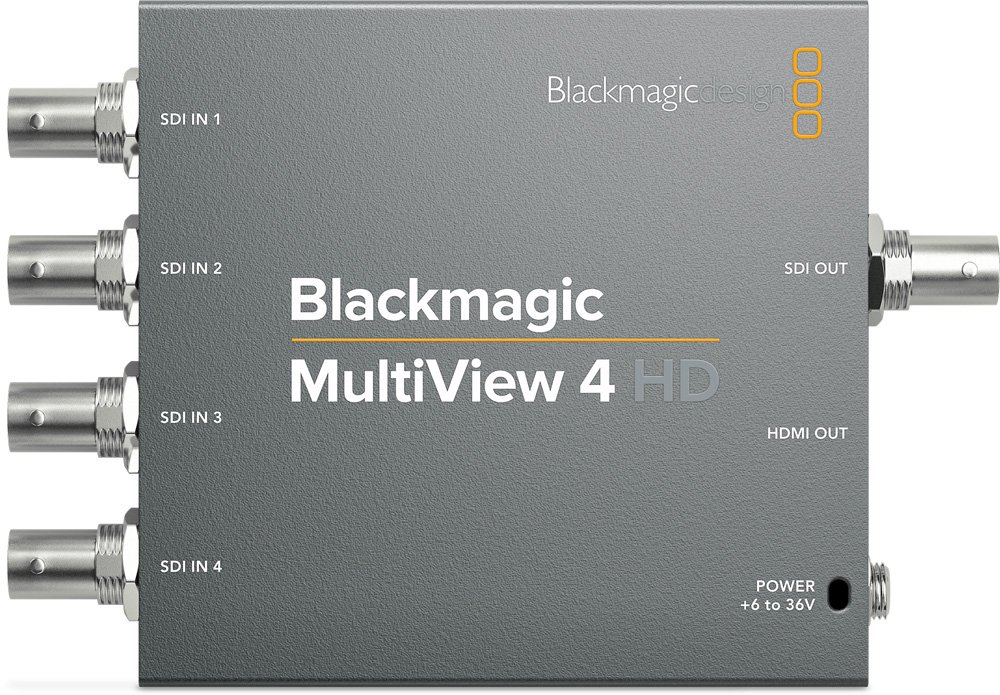

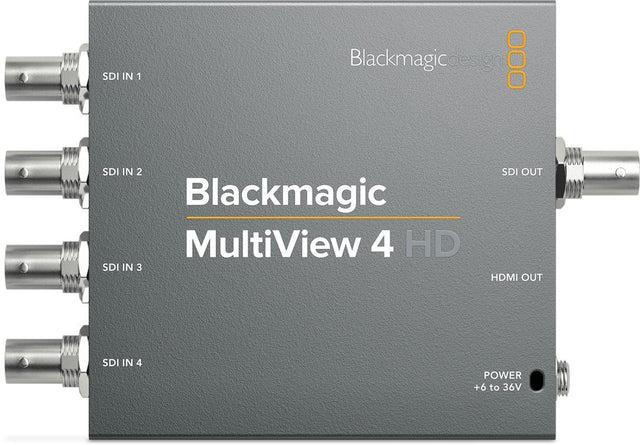

MultiView 4 HD
Monitor up to four different SD and HD sources on the same display at the same time!
The Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display! Each view is a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more. Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates. The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices. Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions!

Studio or Live Use!
Multi view monitoring is perfect for massive control rooms with lots of incoming feeds, for live multi camera production or for use on location and in tight spaces that don't have room for multiple monitors. With Blackmagic MultiViews you don't need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers and routers into the SDI connections to see everything with amazing clarity and detail on a single HD or Ultra HD monitor!

Independent Monitoring
Each view on a Blackmagic MultiView works as a completely independent video monitor. You get full frame re'synchronization on all SDI inputs, which means that they can be any video standard and frame rate, and each input is completely independent of the others. You can mix any combination of referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30 on some models, all on the same display at the same time! It's like getting 4 or 16 independent monitors in one!

High Resolution Monitoring
All Blackmagic MultiView models work with HD displays, while the 6G-SDI models also work with Ultra HD displays, so you get maximum compatibility with your existing equipment. That means you can use regular HD displays but you also have the choice to use an Ultra HD monitor for incredible sharpness! Ultra HD has four times the number of pixels of regular HD, so your video will look sharper and clearer than ever before! What this means is when displaying the 2x2 view on an Ultra HD monitor, each view is a full 1920 x 1080 HD resolution with no scaling! MultiView includes both SDI and HDMI outputs so you can connect to televisions, video projectors, broadcast monitors and more!

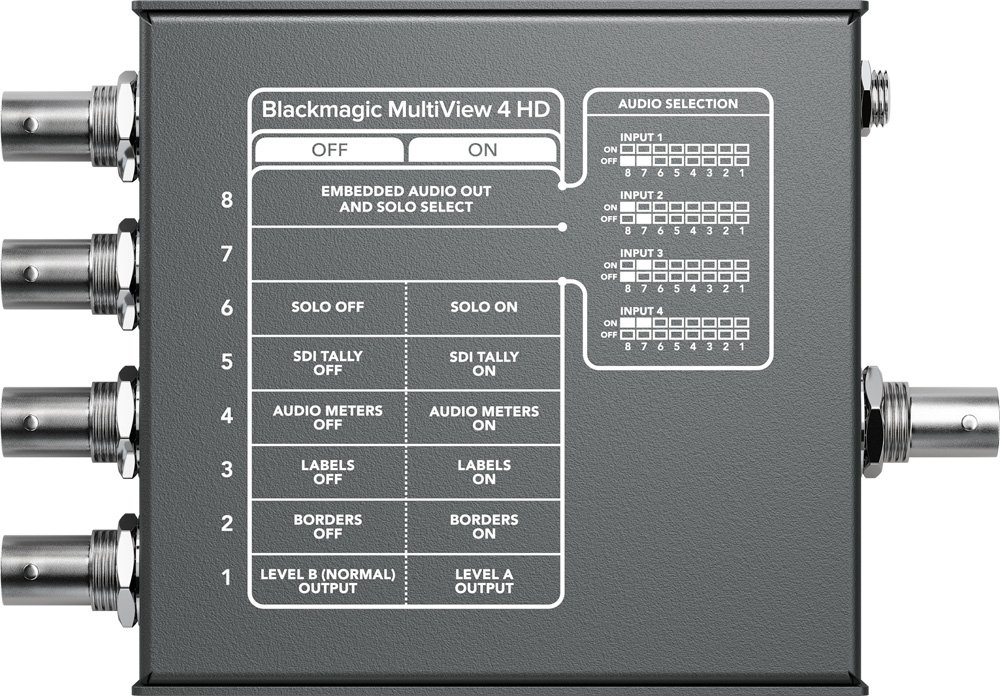

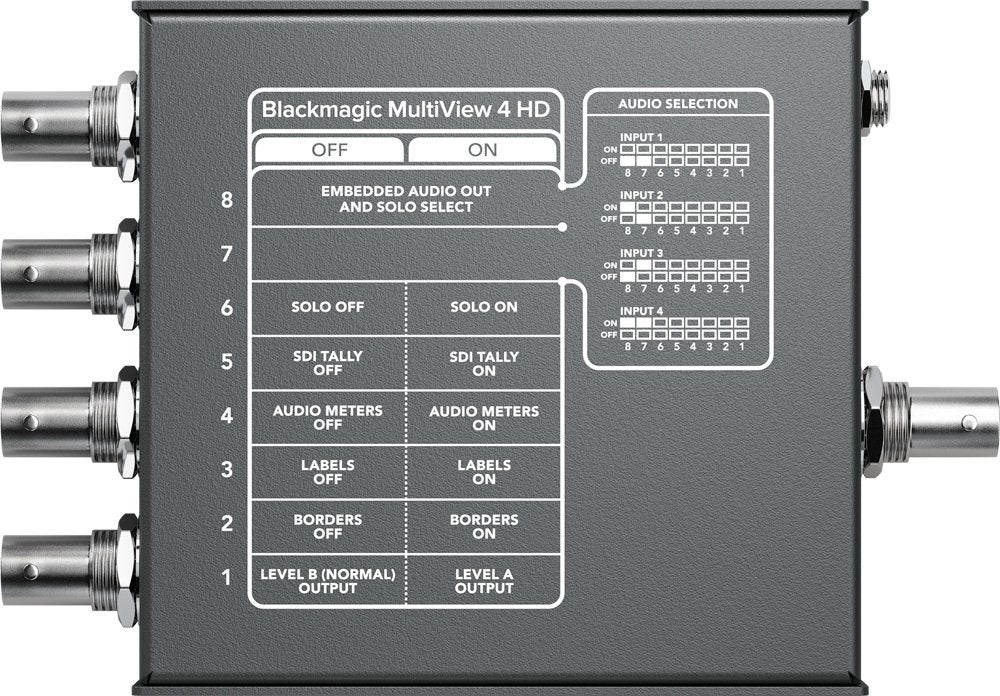

Advanced Monitoring Tools
Blackmagic MultiViews feature advanced monitoring tools that can be displayed with your video. You get custom labels, audio meters, tally indicators and more! You can also choose which audio source is routed to the video output. The on screen source labels have a subtle, elegant design and resize proportionally based on the selected layout. In addition, you get anamorphic support in standard definition so you can view 16 x 9 anamorphic video sources in widescreen.

Multi Rate SDI Connections
Blackmagic MultiView models feature multi rate SDI inputs with full frame re-synchronization and some models also have separate loop through outputs, making them compatible with your existing equipment. The SDI inputs automatically detect and re-sync SD and HD formats, plus some models also re-sync Ultra HD formats up to 2160p30. You get HDMI and SDI output, and MultiView 16 also includes a reference input connection and blackburst/tri-level sync for studio installations.
  • SDI and HDMI outputs for monitoring on professional SDI displays, projectors or even big screen televisions
  • Monitor any combination of SD and HD formats and frame rates
  • Multi rate 3G-SDI connections compatible with all existing SD and HD equipment and formats up to 1080p60
  • Connections
    SDI Video Inputs
    4 x 10-bit SD-SDI and HD-SDI.

    SDI Video Outputs
    1 x HD-SDI.

    SDI Rates
    270Mb, 1.5G, 3G.

    SDI Video Multi View Outputs
    1 x 10-bit HD-SDI.

    HDMI Video Multi View Outputs
    1 x HDMI type A connector. Output supports EDID of the monitor.

    SDI Reclocking
    On all SDI outputs, auto switching between standard definition or high definition.

    Reference Input

    Multi Rate Support
    Auto detection of SD or HD.

    USB 2.0 high speed (480Mb/s) interface.

    USB 2.0

    What's Included:
    Blackmagic MultiView 4 HD
    +12V universal power supply with international socket adapters
