Blackmagic Design Streaming Encoder HD for HD, Ultra HD Streaming
MPN #BDLKWEB/C/SEDHD
HD streaming encoder, 12G-SDI in, USB webcam out, RTMP streaming, mobile data via 5G/4G, tech monitor out, dual power, SDI loop, full HD support

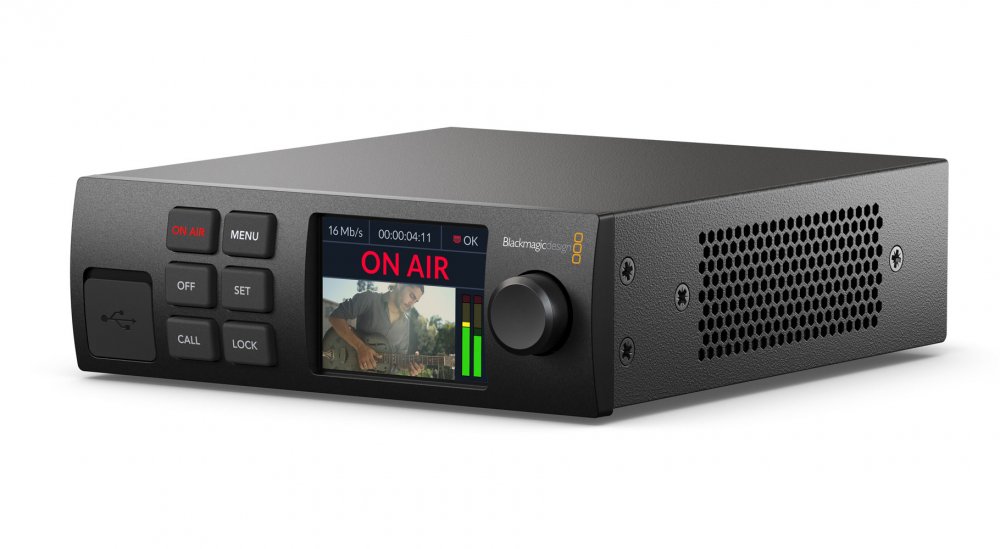

The Blackmagic Streaming Encoder HD is a compact, professional-grade streaming device designed to simplify high-quality internet broadcasting. Housed in a portable 1/3 rack-width Teranex Mini chassis, it provides a complete live streaming solution with a built-in hardware encoder that streams directly to YouTube, Facebook, Twitch, X, and other platforms via Ethernet-no external computer required. It's like having a modern television transmitter in a small, rack-mountable unit. With both AC and DC power inputs, front panel control, and a robust monitoring output, this device is engineered for professional environments where reliability and image fidelity are non-negotiable.
Designed to fit seamlessly into broadcast workflows, the Streaming Encoder HD features a 12G-SDI input and loop-out, an HDMI and SDI monitor output, and USB-C webcam emulation for use with video conferencing or streaming software. Its Ethernet and mobile data support via 4G/5G phone tethering make it ideal for remote production or mobile broadcasting. A full technical monitoring display-available via HDMI or SDI-offers real-time views of audio levels, codec data rates, cache performance, and SDI diagnostics. Supporting HD and Ultra HD video formats up to 2160p60, it ensures compatibility with today's most demanding productions. Whether for streaming live events, remote client reviews, or real-time studio links, the Blackmagic Streaming Encoder HD delivers robust performance, intuitive setup, and professional redundancy in a space-saving package.
Features
All-in-One Streaming Solution: Streams directly to YouTube, Facebook, Twitch, X, and more without needing a computer or extra software.Professional SDI Video Input: Accepts 12G-SDI video sources for HD and Ultra HD content up to 2160p60.Reliable Ethernet and Mobile Data Streaming: Connects via Ethernet or tether a 4G/5G phone for mobile internet and automatic failover protection.USB Webcam Compatibility: Appears as a standard webcam when connected via USB-C, working seamlessly with Zoom, Skype, Teams, and more.Built-In Hardware Encoder: Uses a dedicated hardware engine for stable, high-quality streaming without dropped frames.Live Stream Monitoring: Includes HDMI and SDI monitor outputs with video preview, audio levels, bitrate graphs, and stream status.Redundant Power Options: Features both AC and 12V DC inputs for uninterrupted operation in critical broadcast environments.Flexible Video Standard Support: Handles a wide range of formats including 720p, 1080p/i, and Ultra HD resolutions with Rec.601, Rec.709, and Rec.2020 color.Broadcast-Quality Streaming Links: Works with ATEM Streaming Bridge for point-to-point SDI video transmission between locations.Easy Platform Setup: Use the free Streaming Utility on Mac or Windows to configure stream keys and select services quickly.Compact 1/3 Rack Design: Small and portable, fits into compact racks for live production, studio installs, and mobile use.Closed Captions Support: Embeds CEA-608 and CEA-708 captions into live RTMP streams for compliance and accessibility.
Specifications
General Specifications

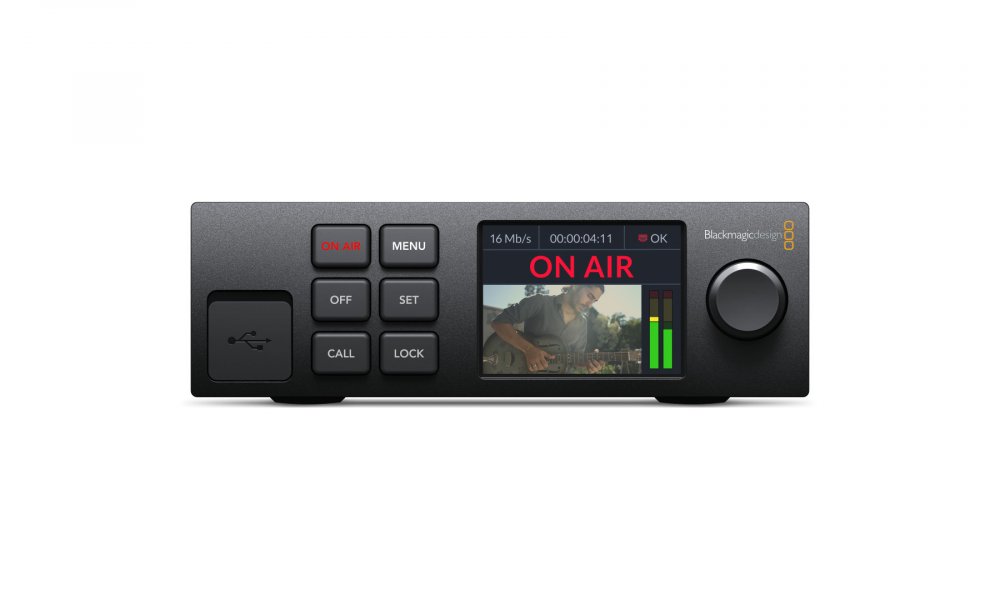

Self-contained hardware encoder for professional streamingModular 1/3 rack-width Teranex Mini design (fits 3 units per 1RU)Built-in front panel LCD screen and control buttonsRugged metal construction for studio or field useRedundant power: AC input + 12V DC locking power input
Video Inputs and Outputs

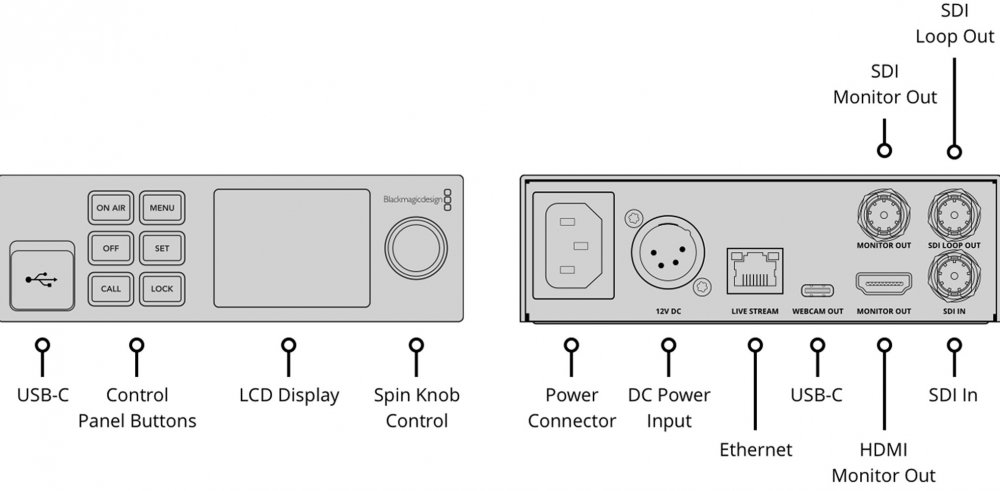

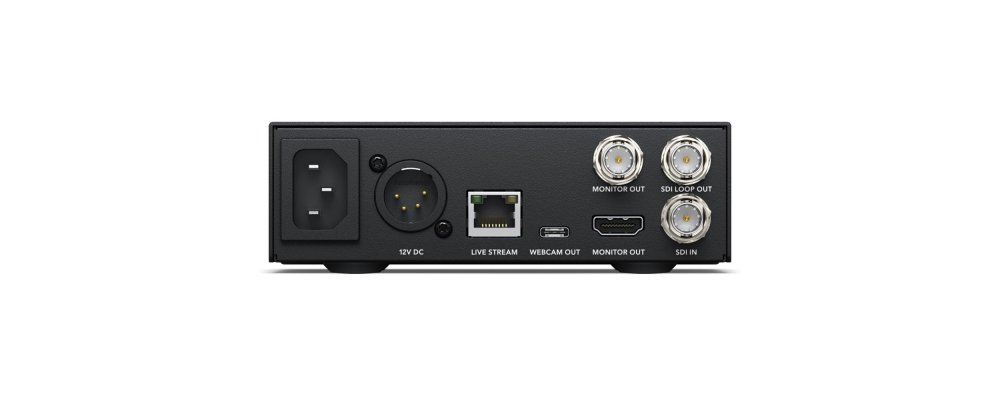

1x 12G-SDI input1x 12G-SDI loop-through output1x 12G-SDI monitoring output1x HDMI monitoring output1x USB-C output for webcam emulation
Supported SDI Video Formats
HD Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60Ultra HD Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Color Space Support
Rec.601Rec.709Rec.2020
Streaming Standards (Encoded Output)
HD Streaming Formats: 720p25, 720p30, 720p50, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60Protocol: RTMP (Real-Time Messaging Protocol)Embedded Closed Captions: CEA-608 and CEA-708 support
Streaming Features
Direct live streaming over EthernetSupports YouTube, Facebook, Twitter/X, Twitch, and custom RTMP destinationsSimultaneous USB webcam output at 1080HDFull control via front panel or Blackmagic Streaming Utility (Mac/Windows)XML configuration file support for advanced manual settings and platform additionsRedundant streaming capability using multiple encoders to primary/backup servers
Internet Connectivity
Ethernet: 10/100/1000 BaseTUSB-C (front and rear) for 4G/5G phone tetheringAuto-failover between Ethernet and mobile data connectionsPriority setting for preferred internet source
Technical Monitoring Output
HDMI and SDI monitoring outFull 1080HD display of: Program video, Audio meters, Codec data rate graphs, Cache status, SDI input info and streaming settings summary
USB Webcam Compatibility
USB-C output appears as a 1080HD webcam on any computerCompatible with: Skype, Zoom, Microsoft Teams, OBS, XSplit Broadcaster, other video software
Power
1x IEC AC power input1x 12V DC locking input (broadcast battery compatible)Redundant power switching support
Software & Integration
Blackmagic Streaming Utility for setup and monitoring (macOS/Windows)Compatible with ATEM Streaming Bridge for SDI point-to-point link over LAN or internet
Included Accessories
IEC AC power cableQuick start guideFree software utility download
