UPC/EAN #9338716007657     MPN #CINSTUDMFT/H/SC

$1379.00

Financing available
Free shipping in Canada. Conditions

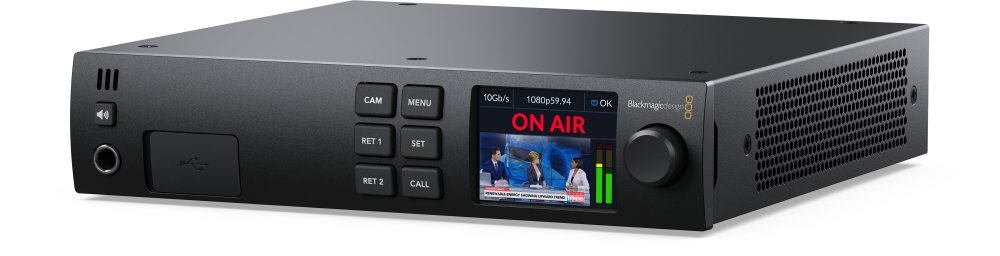

10G Ethernet breakout box for Blackmagic Studio Cameras allowing all the video, audio and talkback connections to be sent through a single standard 10G copper Ethernet cable



With 10G Ethernet on the Pro models, you can connect all signals to the camera with the one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't need a power source near the camera. Plus you can fit 2 per rack unit using a Blackmagic Universal Rack Shelf!
  • Camera Feed
  • Return Program Feed
  • Camera Control
  • Tally
  • Talkback
  • Reference
  • Timecode
  • Power

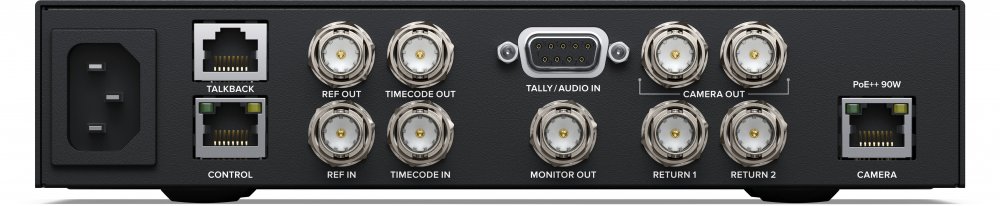

  • SDI Video Inputs
    2

    SDI Video Outputs
    2

    SDI Monitor Outputs
    1

    SDI Rates
    1.5G, 3G, 6G, 12G.

    Built in Speaker
    Mono

    Analog Audio Inputs
    2 channel analog Program audio in supported via 9'pin connector.

    Analog Audio Outputs
    1 x 6.35 mm headphone jack.

    SDI Audio Input
  • Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
  • 4 talkback channels on 13, 14, 15 and 16.
  • Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI.

  • SDI Audio Output
  • 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI.
  • 4 talkback channels on 13, 14, 15 and 16.

  • Timecode Connections
    1 x BNC In, 1 x BNC Out.

    Reference Connections
  • 1 x BNC In, 1 x BNC Out.
  • Tri-Sync or Black Burst.

  • Talkback Audio
  • SDI channels 13 and 14 for Engineering talkback.
  • SDI channels 15 and 16 for Production talkback.
  • RJ-45 Talkback connector for analog external talkback systems.

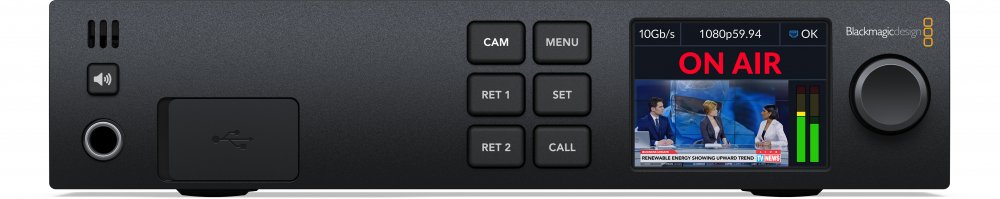

  • Screen
    2.2 inch LCD

    Ethernet
  • 1 x 10Gb/s PoE RJ'45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable.
  • 1 x 1Gb/s for external control and software updates.

  • Computer Interface
    1 x USB-C.
