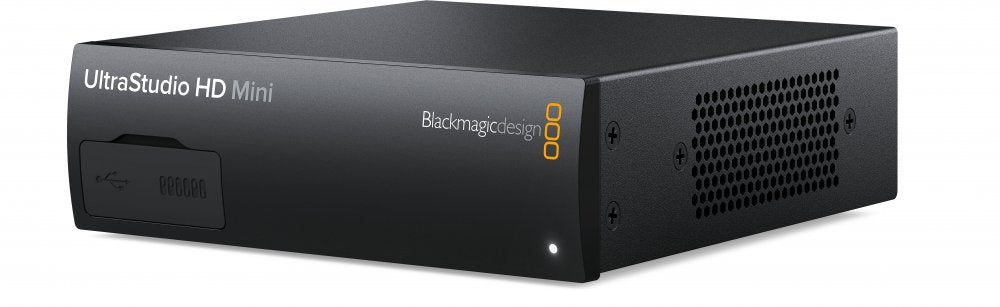

Portable Thunderbolt 3 capture and playback interface with 3G-SDI, analog YUV and composite NTSC/PAL video inputs, and HDMI connection for monitoring video

Professional Capture and Playback for Thunderbolt 3 Computers!
Now you can connect Thunderbolt 3 computers to any kind of video equipment for building high performance edit workstations, archiving from old broadcast decks, outputting broadcast graphics and even live streaming! Simply connect to the Thunderbolt 3 port to get a wide range of video and audio connections that operate in all SD, HD, Ultra HD and 4K DCI formats up to 60 frames per second! Connections include SDI, HDMI and analog video and audio with broadcast quality 10-bit YUV and 12-bit RGB in Apple ProRes and uncompressed file formats. UltraStudio is designed to work with popular video software on Mac, Windows and Linux such as DaVinci Resolve, Avid Media Composer, Adobe Premiere Pro, Final Cut Pro and many more.

Choose the Perfect Model for Portable or Studio
UltraStudio features a ?breakout box' style design that gives you virtually every connection you need to connect to professional decks, monitors and other equipment. That means they're perfect for equipment racks or post production suites where you need to position them on a desktop or editing station. UltraStudio Mini models feature a more compact design thats more portable so it's the perfect choice when you need to access video connectivity for live camera capture or on set color grading on location.

Professional Capture and Playback for any Workflow!
Whether you're working on-set or in post production, UltraStudio gives you broadcast and digital cinema quality capture and playback that can be used for any workflow. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. There are even models with 12G-SDI and support for the latest HDR formats to ensure high end colorists get everything they need for monitoring to broadcast displays, HDR televisions or the latest digital cinema projectors. UltraStudio can even be used to feed SDI fill and key from RGB graphics directly from a computer to a live production switcher for amazing live broadcast graphics keying.

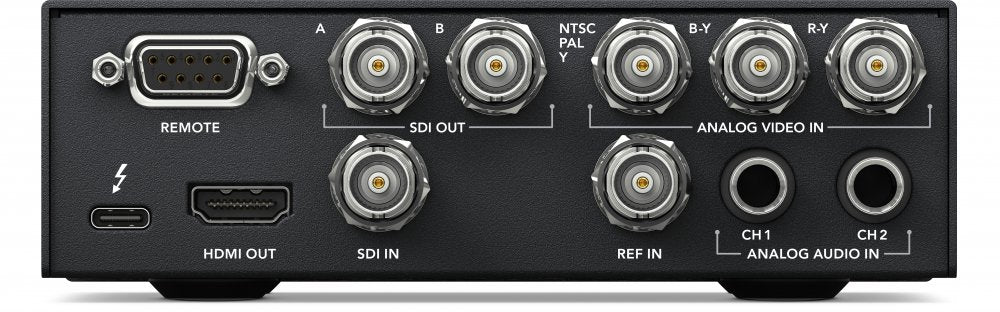

UltraStudio HD Mini features professional broadcast quality connections that include 3G-SDI, analog YUV and composite NTSC/PAL video inputs, along with a reference input. There are also two ΒΌ" audio connections for analog audio input that work with balanced and HiFi sources. In addition, UltraStudio HD Mini can remote control professional broadcast decks using the built in RS-422 connection. For output, you get dual link 3G-SDI with fill and key, and an HDMI connection for monitoring video with a big screen television!
  • 3G-SDI connections
  • Analog YUV and composite NTSC/PAL video inputs
  • Remote control capability for professional broadcast decks using the built in RS-422 connection
  • HDMI connection for monitoring video
  • SDI Video Inputs
    1 x 3Gb/s SD/HD switchable.

    SDI Video Outputs
    2 x 3Gb/s SD/HD switchable, supports fill and key.

    SDI Rates
    270Mb, 1.5G, 3G

    Optical SDI

    HDMI Video Inputs

    HDMI Video Outputs
    1 x HDMI 1.4b type A connector.

    Analog Video Inputs
    Y, B-Y, R-Y/NTSC/PAL.

    Analog Video Outputs

    Analog Audio Inputs
    2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.

    Analog Audio Outputs
    None, embedded audio only.

    SDI Audio Inputs
    16 Channels embedded in SD and HD.

    SDI Audio Outputs
    16 Channels embedded in SD and HD.

    HDMI Audio Outputs
    2 Channels embedded in SD and HD.

    Timecode Connection
    None. RP-188 only.

    Reference Input
    Tri-Sync or Black Burst.

    Supported Codecs
    AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.

    Software Included
    Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

    Internal Software Upgrade
    Firmware built into software driver. Software driver loads upgrades at system start or via updater software.
