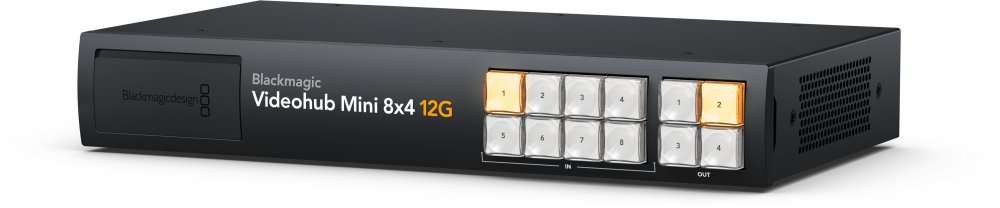

Blackmagic Design Videohub Mini 12G Router, 2/3U rack
MPN #VHUBSMTK12G0804
2/3 rack 8x4 12G-SDI router, clean switch on each output, SD/HD/UHD up to 2160p60, front I/O, USB webcam out, SDI re-clocking, remote control support
The Blackmagic Videohub Mini 12G 8x4 is the most powerful configuration in the Videohub Mini series, delivering professional SDI routing in a " rack-width form factor designed for high-demand broadcast environments. With 8 inputs and 4 outputs, all supporting multi-rate 12G-SDI, this model handles a wide range of video formats-from SD all the way up to Ultra HD 2160p60. It's an ideal core router for portable broadcast kits, OB vans, or small studios that need the versatility of larger systems without the rack space demands. The advanced clean switch function on each output ensures smooth, frame-accurate transitions, while SDI re-clocking on all inputs guarantees strong signal integrity for long cable runs or complex workflows.
Equipped with front panel routing controls, the 8x4 also includes emergency-access SDI inputs and outputs on the front, perfect for urgent hardware additions or troubleshooting during live operations. Its USB-C webcam output enables direct streaming or integration with software via any desktop system, delivering downconverted HD video when needed. With the ability to patch, route, and stream from a single compact unit, the Blackmagic Videohub Mini 8x4 offers serious switching power and flexibility-ready to support multi-camera productions, hybrid events, and broadcast-grade video systems from a streamlined " rack-sized footprint.
Caractéristiques
2/3 Rack-Width Form Factor: Compact yet powerful, designed for mid-size installations where flexibility and space-saving are essential.
8 Inputs, 4 Outputs: Route any of eight 12G-SDI video sources to four independent outputs, with full SD, HD, and Ultra HD support up to 2160p60.
Per-Output Clean Switch: Enables seamless, frame-aligned transitions on selected outputs"perfect for live switching to monitors or encoders.
Front Panel Cut-Bus Routing: Quickly assign sources to outputs with tactile buttons and intuitive control layout, even in fast-paced environments.
Emergency Patch Panel: Includes a front 12G-SDI input and output for quick-access connections"ideal during urgent setups or equipment swaps.
USB-C Webcam Output: Front USB-C port appears as a 1080p HD webcam feed for instant streaming or use in video software.
12G-SDI with Input Re-Clocking: Regenerates the SDI signal on every input for maximum cable length, stability, and error-free video transmission.
Supports Mixed Video Standards: Connect SD, HD, 3G, 6G, and 12G-SDI sources at once"router automatically manages the output standard.
Advanced Remote Control Options: Compatible with Videohub Master Control Pro and Smart Control Pro panels, plus software control for Mac, Windows, and iPad.
Dual Power Inputs (AC + DC): Redundant power options ensure reliability for critical broadcast or production environments.
Spécifications
General Specifications
Compact 2/3 rack-width SDI video router (fits 1.5 units in 1RU)Model: 8x4 (8 inputs, 4 outputs)Ideal for larger portable broadcast systems or complex patching needsDurable all-metal chassis for professional studio and field use
Video Routing
8x 12G-SDI inputs (rear)4x 12G-SDI outputs (rear)1x 12G-SDI input (front panel) - overrides input 8 when connected1x 12G-SDI output (front panel) - mirrors rear output 41x USB-C output (front panel) - webcam output for SDI source (1080p)
Signal Format Support
Auto-detecting 12G-SDI multi-rate connectionsSupports SD, HD, Ultra HD formats up to 2160p60Compatible with SD-SDI, HD-SDI, 3G-SDI, 6G-SDI, and 12G-SDI equipmentAllows routing of mixed video standards simultaneously
Clean Switch & Re-clocking
Clean switch selectable per outputOutput-based switching with lock to input 1 or REF inputREF input supported for sync-locked clean transitionsAll SDI inputs feature re-clocking for improved signal stability and longer cable runs
Control Interfaces
Front panel routing with cut-bus style interface, Destination (output) selection followed by source (input) selectionSupports external control panels: Videohub Master Control Pro, Videohub Smart Control ProSupports software control: Videohub Software Control for macOS, Windows, and iPadAPI access via free SDK for automation and system integration
Front Panel Features
Emergency 12G-SDI input and output for rapid accessUSB-C webcam output for real-time SDI-to-USB streaming (HD resolution)Emergency inputs override highest-numbered rear ports when used
Power
Integrated universal power supplyAC input via IEC connectorLocking 12V DC input for broadcast or field redundancy
Physical Design
2/3 rack-width (approximately 11 inches)Stackable with other Teranex Mini-style equipmentFront-to-back cooling ventilationLocalized UI support in 13 languages
Included Accessories
IEC AC power cableQuick start guideControl software download available
