MPN #DXD-16

$6872.00

Financing available
Free shipping in Canada. Conditions

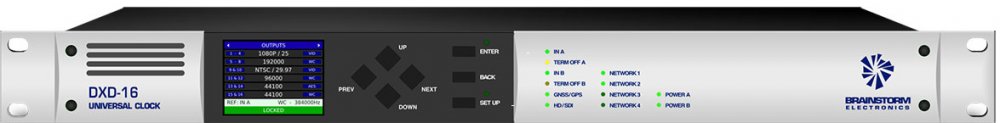

Universal Clock, PTP Grandmaster with GPS, merged with a precision reference generator - 4 independant PTP ports16 universal outputs - generates up to 6 different references simultaneously



DXD-16 Universal Clock combines PTP, GPS and legacy Sync to provide the Audio/ Video equipment and the IP network in perfect sync, making the DXD truly Universal.
Flexibility and easy integration
  • PTP Grandmaster
  • 4 independant Ethernet ports
  • Can synchronize to a PTP network, a GPS clock or a legacy reference
  • 6 legacy reference generators
  • 16 universal outputs (WC, AES, VID SYNC, 10MHz)
  • 2 external reference inputs with failover for redundancy
  • Remote control via web browser
  • Multiple options: GPS receiver, OCXO, SDI
  • PTP:
    4 independant Gigabit Ethernet ports (RJ-45)
    Configurable as a Grandmaster, slave or Boundary clock
    Complies with IEEE-1588 V2
    Unicast / Multicast operation

    Reference Generator:
    Generates simultaneously up to 6 different rates in any of these formats:
  • Word clock - rates from 32 to 384 KHz
  • AES - rates from 32 to 96 KHz
  • Video sync:
  • NTSC/PAL black burst
  • 525/29.97/30i
  • 625/23.98/24/25i
  • HD tri-level sync
  • 720/23.98/24/25/29.97/30/50/59.94/60P
  • 1080/25/29.97/30i
  • 1080/23.98/24/25/29.97/30sF
  • 1080/23.98/24/25/29.97/30/50/59.94/60p
  • 10MHz

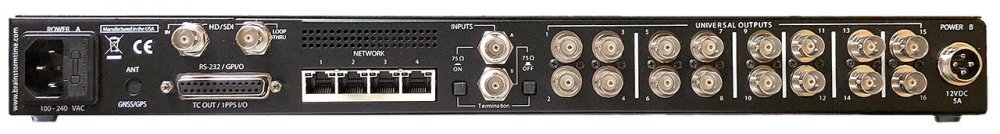

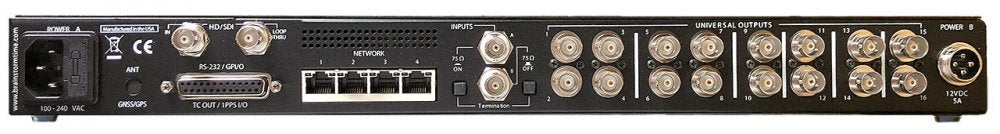

  • Universal Outputs:
    16 outputs - in 6 different groups
    BNC - 75
    Output signal: any of the generated legacy references

    Oscillators:
    TCXO: +/- 1ppm
    OCXO: +/-10ppb (option)

    External Sync Sources:
  • Word clock
  • AES
  • Video sync (Black Burst or HD tri-level sync)
  • 10MHz
  • GPS (option)
  • PTP

  • Universal Inputs:
  • 2 BNC input connectors w/ 75 termination switch
  • Accepts the following input signals:
  • Word clock
  • AES
  • Video sync (Black Burst or HD tri-level sync)
  • 10 MHz

  • Remote control:
    Web browser
    3 GPIO inputs (DB-25)

    Alarm: 3 GPIO outputs (DB-25)

    Battery backup: An on-board battery keeps the internal time-of-day clock running while power is off

    Presets: 10 presets can be programmed for quick recall

    Display: 2.4" TFT LCD - 240 x 320 resolution

    Power: AC: 100-240 VAC - Internal power supply with IEC inlet

    DC: 12 VDC @ 5A - 4 pin circular input connector for external DC power source
    Dual power sources with auto switch-over in case of failure for redundancy

    Dimensions: 19" x 1.75" x 8"

    GNSS/GPS Internal Receiver (option): The DXD-16 can be fitted with an Internal GNSS/GPS receiver.
    The option includes an SMA antenna input connector. An antenna is required (not included).
