Universal Clock, precision reference generator with 8 universal outputs, generates up to 4 independant references simultaneously, includes WC, AES, Video Sync & 10MHz - Options: PTP, OCXO, GPS



The DXD series from Brainstorm is designed to ease the transition to IP.

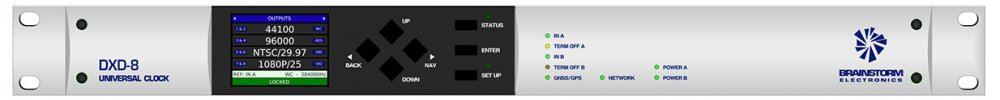

The DXD-8 Universal Clock, a precision multiformat reference generator generates up to 4 independent video syncs and audio clocks simultaneously. With the PTP option, it acts as a bridge between an IP infrastructure and legacy A/V equipment.
Flexibility and easy integration
  • 4 separate Reference Generators
  • 8 universal outputs (WC, AES, VID SYNC, 10MHz)
  • 2 external reference inputs with failover for redundancy
  • Synchronizes to a legacy reference, a PTP network or a GPS clock
  • Remote control via web browser
  • Multiple options: PTP, GPS, OCXO
  • Reference Generator:
  • Generates simultaneously up to 4 different rates in any of these formats:
  • Word clock - rates from 32 to 384 KHz
  • AES - rates from 32 to 96 KHz
  • Video sync:
  • NTSC/PAL black burst
  • 525/29.97/30i
  • 625/23.98/24/25i
  • HD tri-level sync
  • 720/23.98/24/25/29.97/30/50/59.94/60P
  • 1080/25/29.97/30i
  • 1080/23.98/24/25/29.97/30sF
  • 1080/23.98/24/25/29.97/30/50/59.94/60p
  • 10MHz

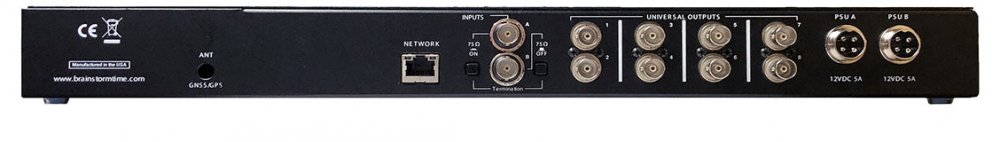

  • Universal Outputs:
  • 8 outputs - in 4 pairs
  • BNC - 75
  • Output signal: any of the generated legacy references

  • Oscillators:
  • TCXO: +/- 1ppm
  • OCXO: +/-10ppb (option)

  • External Sync Sources:
  • Word clock
  • AES
  • Video sync (Black Burst or HD tri-level sync)
  • 10MHz
  • GPS (Option)

  • Universal Inputs:
  • 2 BNC input connectors w/ 75 termination switch
  • Accepts the following input signals:
  • Word clock
  • AES
  • Video sync (Black Burst or HD tri-level sync)
  • 10 MHz

  • Remote control: Web browser
    Battery backup: An on-board battery keeps the internal time-of-day clock running while power is off
    Presets: 10 presets can be programmed for quick recall
    Display: 2.4" TFT LCD - 240 x 320 resolution
    Power:
  • 12 VDC @ 5A - External, switching power supply
  • Dual inputs with auto switch-over for redundancy
  • Dimensions: 19" x 1.75" x 8"

    PTP (option):
  • Complies with IEEE-1588 V2
  • Unicast / Multicast operation
  • Configurable as a Grandmaster, slave or Boundary clock
  • 1 Gigabit Ethernet port (RJ-45)
  • GNSS/GPS (option):
  • The DXD-8 can be fitted with an Internal GPS receiver.
  • The option includes an SMA antenna input connector. An antenna is required (not included).
