Time Code Distripalyser, combines a reader, a 1 x 12 distributor, a reshaper, an analyzer and a generator (optional). Identifies problems instantly (phase, drop outs...) with the optional TCG, fixes them



The SR-112 reshapes and distributes timecode through its 12 outputs, sending it over long lines with no signal degradation. It analyzes the source for quick diagnostic and generates or repairs timecode, locked to video if required.
1 x 12 DISTRIBUTOR / RESHAPER
  • Designed to send clean time code over long cables
  • Eliminates level fluctuations
  • Buffered outputs; balanced or unbalanced

  • TIME CODE ANALYZER
  • Identifies time code format, reports errors (drop outs...)
  • Monitors video phase
  • Generates a comprehensive report via Ethernet

  • TIME CODE GENERATOR (option)
    Generates new time code with or without video reference
    Repairs faulty time code (jam sync)

    The industry standard SR-112 is designed to distribute time code through its 12 buffered outputs while analyzing it. The reshaper sends clean time code, even over long cables, making it ideal for live environments.

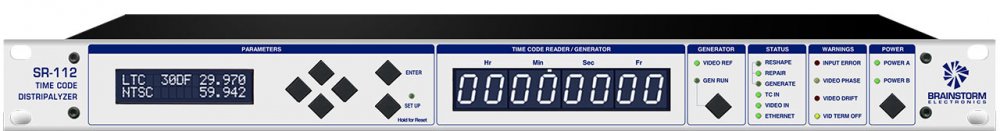

    The front panel includes a large 8 digit reader and an LCD display showing the units status and reporting errors as they are detected. All modern SMPTE and EBU SD/HD rates are supported.

    With the option TCG, the SR-112 can also generate new time code or repair exisitng one.
    TC Distributor: 1x12
    TC Input Connector: XLR Female
    TC Output Connectors: 1 x DB-25 F (8 outputs - Tascam/Avid analog pin configuration), 2 x XLR M, 2 x 1/4" TRS

    Input Signal:
    SMPTE/EBU Longitudinal Time Code
    Impedance: 20K bal.; 10K unbal.
    Level: -30dbU min; +20dbU Max

    Output Signal:
    Waveform: switchable rise time: 1us (square); 25us (SMPTE); 50us (EBU)
    Impedance: 600 bal.; 300 unbal.
    Level: adjustable: full off to +8dbU bal.; to + 2dbU unbal.
    Amplitude distortion: less than 2%

    Status LEDs: Reshape . Generate (TCG option) . Video In . Repair (TCG option) . TC In . Ethernet
    Warning LEDs: Input Error (red) . Video Drift (red) . Video Phase (yellow) . Video Termination Off (yellow)
    Time Code Reader: The 8 digit LED Display indicates hours, minutes, seconds and frames.
    The display also flashes error descriptions when detected.

    LCD Display:
    In addition to being used for SET UP, the 32 carachter LCD display indicates the following:
  • Format and rate of the incoming time code
  • Format and rate of the video reference
  • User Bits
  • Video Phase
  • List of errors

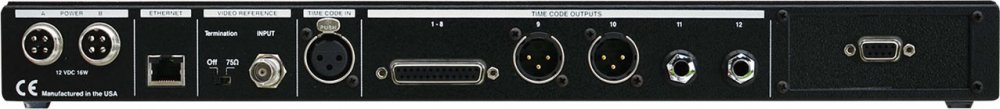

  • Connectors:
    Time Code in: XLR Female (x 1)
    Video Ref: BNC (x 1)
    Time Code outputs:
  • DB25 (1x) - Tascam/Avid analog pin configuration: outputs 1-8
  • XLR Male (2x): outputs 9-10
  • 1/4" jacks (2x) - TRS: outputs 11-12
  • Ethernet: RJ45 jack (x 1)
    Power: 4 pin circular (x 2)

    Power: 12VDC @ 3A
    Redundancy: two separate supplies can be connected to the 2 separate power inputs. If one supply fails, the other takes over and an error is reported. The faulty supply can be swapped without having to power down.

    Dimensions: 19" x 8.125" x 1.75" (48.26 cm x 20.64 cm x 4.45cm)
