Standing back, giving space to the sound, with all the attitudes Brauner microphones are famous for. That is the Phantom. Consequently following up on our philosophy. Our first phantom powered FET microphone we considered worth, carrying our name. A fair priced High-tech microphone. Nominated for TEC Award 2003!

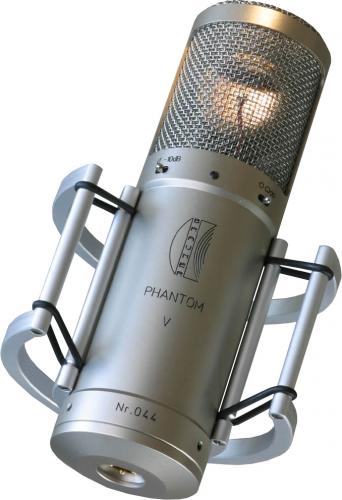

The Phantom V (variable) can be switched between omni, cardioid and figure of eight. An additional 10dB Pad makes this microphone the ideal multi purpose microphone for a huge variety of applications.
The capsule is based on the legendary VM1 capsule. (The only real further development of existing German capsule designs!) The impedance converter is identical to the high performance converter developed for our ASM5 adjustable surround microphone system. (We have been searching the world half a year to find a suitable FET transistor, which we finally found in RF satellite transmission technology? )
Specifications
Acoustical Principle : pressure gradient transducer
Equivalent Noise : 11 dB A (IEC651)
Signal to Noise : 83 dB (1Pa/1KHz-Cardioid)
Sensitivity : 33mV/Pa-Cardioid
Pattern : Omni, cardioid and figure eight
Frequency Range : 20 Hz-22 KHz
Power Consumption : 4 mA
Maximum SPL : 142 dB SPL @ 0,3 % THD
Pad Switch : -10dB (Phantom V only)
Power Supply : 48V Phantom
Accessories : Suspension, aluminum case and user manual
