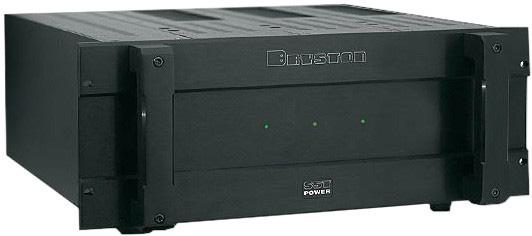

Bryston 6B SST2 PRO
MPN #6BSST2PRO
The Bryston 6BSST² PRO is a three channel amplifier consisting of three completely independent amplifier modules. It is a convenient solution for home theatre (left-center-right).
The 6BSST2 is a modular design 3 x 300W per channel audio power amplifier. Each channel selects a balanced or single ended input. Each channel selects a gain of 29dB(1v), 23dB(2v) or 17dB(4v). Each channel input may be operated inverted or non-inverted operation (0 or -180 degrees). The power up of the 6BSST may be controlled by remote control voltage. The 6BSST2 includes 'soft start' power control circuitry to eliminate high inrush currents when A/C power is applied.
Features
Balanced and unbalanced inputsVariable attenuator (potentiometer) and gain select switch (23dB or 29dB)No fans or other moving partsConvection cooled and housed in a fully aluminum chassis19" black rack mountable faceplate (4U)
Specifications
Power Capabilities:
300W into 8 Ohms (500W into 4 Ohms)
Power Output:
300 Watts @ 20-20K Hz into 8 Ohms
500 Watts @ 20-20K Hz into 4 Ohms
Sensitivity:
1.7 Vrms for 300 Watts out into 8, 29dB gain selected (1Vin=100Wout into 8)
3.4 Vrms for 300 Watts out into 8, 23dB gain selected (2Vin=100Wout into 8)
6.8 Vrms for 300 Watts out into 8, 17dB gain selected (4Vin=100Wout into 8)
Input Impedance:
50K Ohms balanced input (XLR jack)
10K Ohms single ended input (RCA jack)
Thd+n or Imd:
.005 % 20Hz to 20KHz at 300 Watts into 8
.007 % 20Hz to 20KHz at 500 Watts into 4
Noise:
112 dB Input shorted, 20Hz to 20KHz, 29dB gain, referenced to 300W/8 output
115 dB Input shorted, 20Hz to 20KHz, 23dB gain, referenced to 300W/8 output
118 dBInput shorted, 20Hz to 20KHz, 23dB gain, referenced to 300W/8 output
Slew rate:
60 V/sec
Power Bandwidth:
<1 to >100K Hz
Damping Factor:
500 at 20Hz, ref 8
Weight:
46.7 (103) Kg (lbs) including box and packing (i.e. shipping weight)
Power Consumption:
225 Watts at idle
625 Watts 1 channel at 300 Watts output into 8
2100 Watts 3 channel at 300 Watts output into 8
Heat Dissipation:
768 BTU/hr at idle
1109 BTU/hr 1 channel driven to 300 Watts output into 8
4097 BTU/hr 3 channels driven to 300 Watts output into 8
