MPN #CT-LPS-TA3-180-K

$16.08

Free shipping in Canada for orders over $200

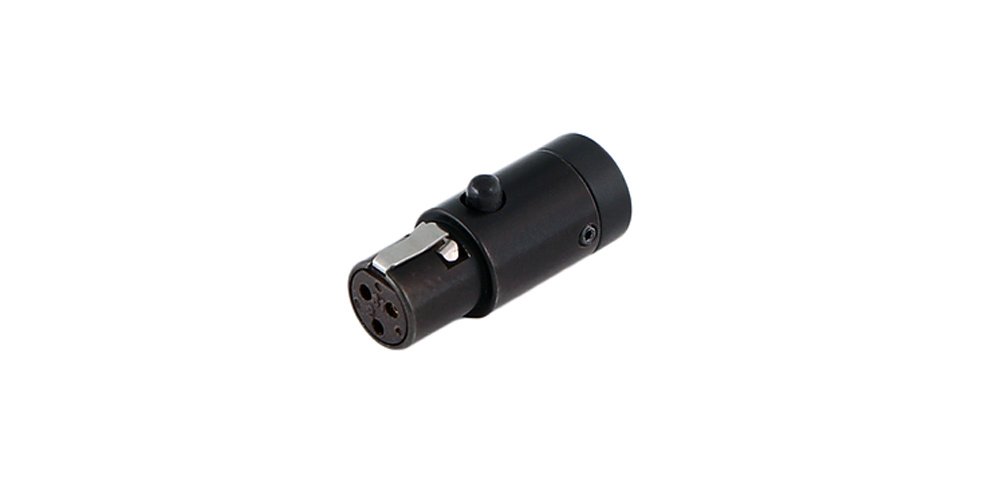

Low-Profile TA3F 180 "Mini XLR" 3-pin Female Connector, Adjustable from 6 or 12 o'clock, Black cap, for up to 3.2mm OD cable



LPS Series Low-Profile Right Angle TA3F "Mini XLR" 3-pin Female Connector with outlet from either 0° or 180° via the release button, Adjustable Side-exit. Suggested Use: Various interface panels or camera adaptor plates that need this orientation to get around accessories and other gear with TA3M connections.

Using the same concept as our LoPro XLR connectors, mini set-screws lock down the color cap securely. The cable outlet can be set to either Left or Right with 60° adjustment range for maximum flexibility.

Two Cap Versions: Standard cap accepts cable diameters up to 3.2mm and the new Large cap accepts cables up to 5.0mm.

Can be color-coded with a choice of 10 color caps or can be color-coded with a Black cap and our Color Polydomes - sold separately. Compatible with our high-quality RAWCB-272, RAWCB-322 and CT-RAWCB-284 bulk cable sold by the meter for DIY projects. Also compatible with popular slim cable models such as Belden 1804A, Mogami W2901, W3031 and W2697.
  • Cable Outlet: +/- 3.2mm or 5.0mm
  • 3-Pin
  • Low-Profile Right Angle
  • Angle Adjust around 0° or 180°
  • Weight: 0.4 oz
  • Dimensions: 10mm x 25mm
  • Black shell
  • Gold Contacts
  • Grub Screw Hex Head Size: 0.9mm
  • View more products from Cable Techniques
