LPS Low-Profile TA5F, Adjustable Side Cable-Exit
LPS Series Low-Profile TA5F "Mini XLR" 5-pin Female Connector, Adjustable Left or Right 90° Side-exit, use with gear like Lectrosonics SRc5P/SRb5P Receivers outs, Zaxcom Nomand, Zax-Max, DEVA-24 and Zaxcom QRX wireless receiver outs and Wisycom Receivers with Top-Feed and more. Also a great option for cables and Lavalier microphones into Lectrosonics transmitters like SMV, SMQV, SMWB and SMDWB.
Using the same concept as our LoPro XLR connectors, mini set-screws lock down the color cap securely and allow for degree of outlet adjustment. The outlet can be set to either Left or Right with 60° adjustment range for maximum flexibility.

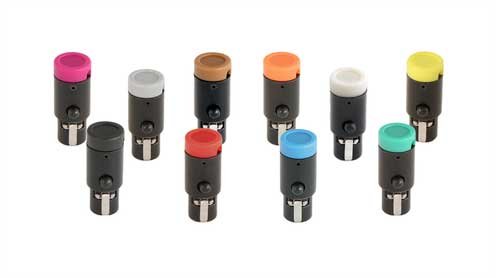

Accepts cable diameters up to 3.0mm. Available with a choice of 10 color caps or can be color-coded with a Black cap and our Color Polydomes. Compatible with our high-quality CT-RAWCB-284 and CT-RAWCB-234 bulk cable sold by the meter for DIY projects. Also compatible with popular slim cable models such as Belden 1804A and Mogami W2929.
Cable Outlet: up to 3.0mm5-PinAngle Adjust: 60° to 120° and 240° to 300°Weight: 0.4 ozDimensions: 10mm x 25mmBlack shellGold ContactsGrub Screw Hex Head Size: 0.9mm
Manufacturer Part Number : CT-LPS-TA5
