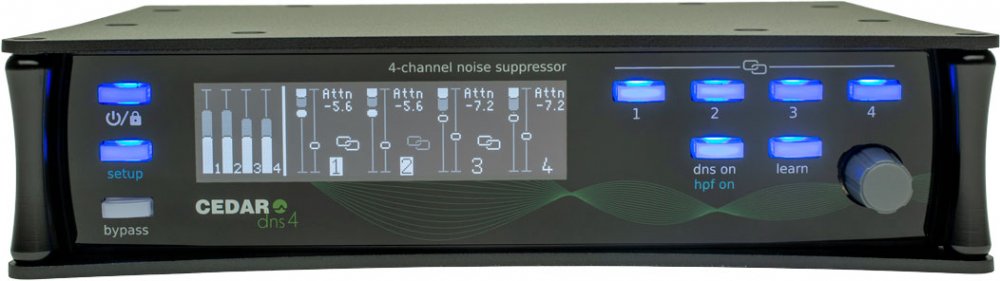

Cedar Audio DNS 4
Portable 4 channel dialogue noise suppressor with LEARN, analogue mic/line inputs, line outputs, digital I/O and 12V operation
The DNS 4 is the most advanced portable model in the DNS series. With its Hirose HR-10 power input and mini-XLRs for many connections, it takes up little more space than the industry-standard DNS 2 yet doubles the number of channels available.
It's incredibly fast and simple to use; the DNS algorithm requires nothing more than switching on the Learn function that identifies and adapts to the background noise, and then adjusting the amount of noise attenuation required. Notwithstanding this simplicity, it can achieve remarkable results. What's more, despite being so convenient that you can slip it into your pocket or equipment bag, it offers analogue line and ultra low-noise microphone inputs (the latter with optional 48V phantom powering), AES3/AES11 digital inputs, and both analogue and digital outputs. And, to increase its flexibility still further, it runs on 12V power so you can use it in the middle of a field as easily as in the studio or edit suite.
Retaining the near-zero latency of its predecessors, the DNS 4 is suitable for use in all situations - location recording, live-to-air broadcasting and live sound in venues such as theatres, concert halls, conferences venues and places of worship, as well as in the studio.
The dialogue noise suppressors that everyone uses everywhere
CEDAR's dialogue noise suppression (DNS) technology is used on the highest quality productions and broadcasts to eliminate traffic noise, air conditioning, wind, rain, babble and general background noise from audio. It will help to compensate for unfavourable acoustic conditions and poor microphone placement, and will even suppress excessive reverberation.
It's used to clean up sound for film production, to suppress ambient noise for live broadcasting, to refresh sound libraries, and to enhance speech for audio forensic investigations. It's an industry standard that has earned a string of awards including an Emmy, an Academy Award, an IABM Award and two Cinema Audio Society Awards.
Four channels of state-of-the-art noise suppression
Near-zero latency to ensure that there?s no loss of lip-sync ! High-resolution 40-bit floating-point processing
Super-fast setup and control
It?s small, light, eminently portable and runs on 12V power

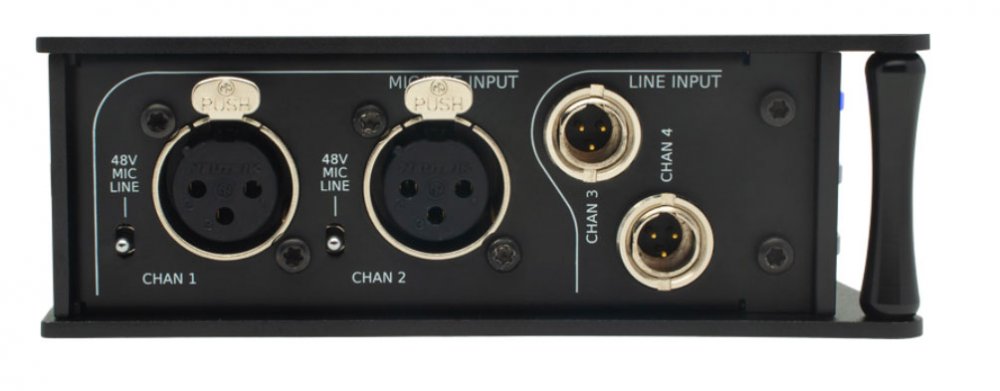

Dual microphone inputs with ultra low-noise microphone preamplifiers
Switchable P48 (IEC61958) +48V phantom power offering 10mA per microphone ! Four line-level analogue inputs with >102dB dynamic range
A/D conversion (internal sync): 24-bit linear PCM at 48kHz
A/D conversion (external sync): 24-bit linear PCM at 40kHz - 100kHz

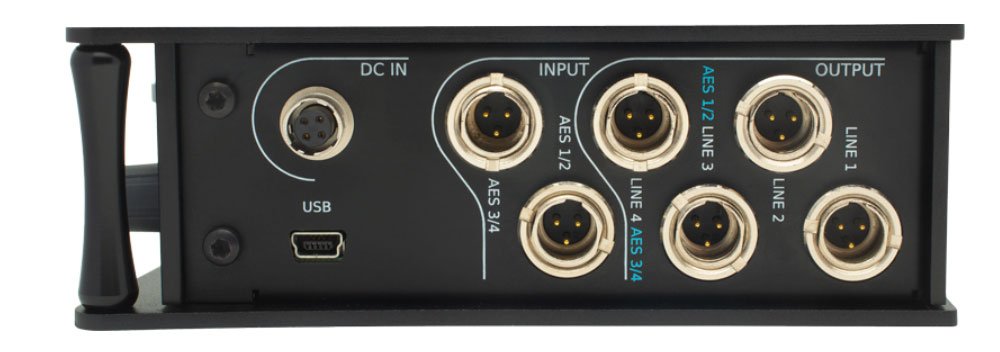

Four channels of AES3 (IEC60958) / AES11 (DARS) digital inputs
Sample rate (external sync): 40kHz - 100kHz
Universal power adapter
The Company reserves the right to change specifications without notice. E&OE.
Four line-level analogue outputs
Four channels of AES3 (IEC60958) at 48kHz (internal sync) or locked to digital input
Input: 8V to 17.5V (nominal 12V)
Maximum power consumption at 12V: 15W
Input: 85VAC - 260VAC, 50 - 60Hz ! Output: 12V
Dimensions: 185 x 130 x 45 mm ! Weight: 750g
