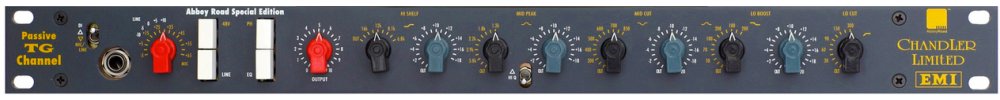

The Chandler Limited Channel is a recreation of several classic circuits and combines a TG2 pre amp section with an equalizer that was redesigned from the TG12410 Transfer
The mastering counterpart to the original "Beatles desks". Our version has been remade using original design information and circuit board drawings as provided by Abbey Road to ensure extreme authenticity! We've even remolded the old TG style pointer knobs.
The active portions of the unit use the same discrete amplifiers and transformers as in the TG1 Limiter and TG2 pre amp. The passive equalizer portion of the EQ is an all inductor design and offers sweet high frequencies with large inductor based lows, and a very high "Q" mid cut section. Designed to sound like a fine musical instrument instead of a modern surgical tool, it's sound is very comparable to Pultec and Lang program eqs but made from TG circuits. A simple description would be a TG Pultec with a TG pre amp thrown in...
All TG units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).
Vintage, Analog, "Beatles-Era" SoundCircuit Design from Abbey Road StudiosInductor-Based Passive EQSound Comparable to Pultec and Lang EQsContains TG2 PreampDirect Input for Line-Level Sources600 Mic In, 10k Line InSeparate Input and Output Controls
1 x 1/4" TS Direct (unbalanced)
1 x XLR Mic/Line (balanced)
Outputs: 1 x XLR (balanced)
Gain: Mic -5 dB to 65 dB
Line: -15 dB to +35 dB
Input Impedance: 600 Mic, 10k Line
Output Impedance: 600
Phantom Power: 48V
Filter Type: Low Cut, Low Boost, Mid Cut, Mid Peak, High Shelf
EQ Frequency Bands (Fixed):
Low Cut: 30, 60, 90, 150 and 300 Hz
Low Boost (+20 dB): 50, 70, 100, 200 Hz (peak) 100, 200 (shelf)
Mid Cut (-20 dB): 300, 400, 500, 600, 700, 850 Hz
Mid Boost (+18 dB): 1.2, 1.8, 2.2, 3,9, and 5.8 kHz
High Boost (+18 dB): 6.8, 8.1, 12, and 16 kHz
Dimensions (WxDxH): 19 x 12 x 2" (483 x 305 x 51 mm)
Weight: 13 lbs (5.9 kg)
Studio *A* Home Recording Studio
Qualicum Beach BC. Canada
26 août 2017
2 are even better
I would give 10 stars if I could. I bought a second TG Channel so that I could use them on the master bus. These sound amazing, with punch and clarity where it counts. Makes every track really shine. A true classic. Pre amp is very warm yet tight and punchy. Lire plus
Built to the highest standards. Feels and looks amazing. Thanks to the staff at Studio Economik for such great service.
