Chandler TG Microphone Cassette
MPN #TG MICROPHONE CASSETTE
Channel strip (TG2, TG1 opto comp, Curve Bender EQ), 2 space 19" rackmount

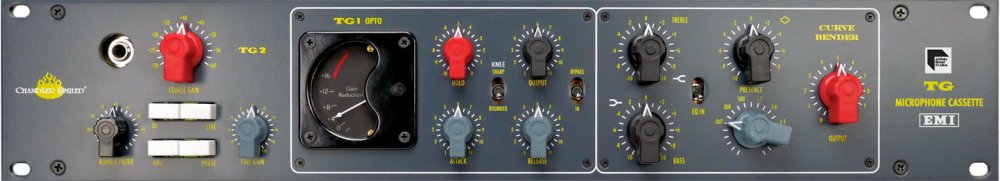

The Chandler Limited TG Microphone Cassette delivers the historic TG sound with modern conveniences, flexibility, and something new - the TG1 Opto Limiter.
The three sections of the TG Microphone Cassette comprise Chandler Limited's TG2 Pre-Amp coupled with a Curve Bender EQ section, including Treble, Bass, and Presence controls, and an independently patchable TG1 Opto Limiter.
The year was 1968 when EMI and Abbey Road Studios saw a change from the valve-driven REDD recording and mixing consoles to the transistorized TG12345 desk, a seminal moment that marked a qualitative shift in sound coming from the most famous studio in the world.
The remarkable sonic quality of the new EMI TG12345 transistor recording console with expanded EQ, and for the first time ever, a compressor/limiter on every channel would forever leave its mark on the Beatles "Abbey Road" and Pink Floyd's "Dark Side of the Moon" albums, as well as recordings by Paul McCartney, John Lennon, George Harrison, and the Rolling Stones.
Retired from service in 1983, the TG desks were built by EMI for their studios and were never commercially available.

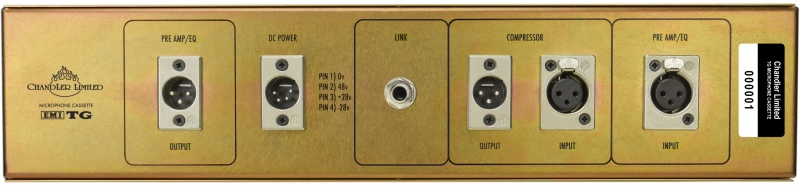

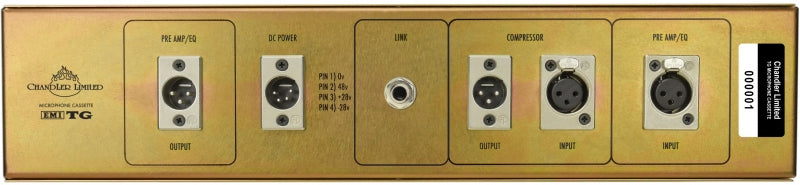

Every rack mount unit comes with a 4-pin XLR cable which connects the unit to the power supply.
Power supplies are sold separately. One PSU-1 powers two units.
TG2 Preamp: Transistor amplifier
Mic/Line: XLR Input (Transformer balanced, Mic 300 Impedance)
DI: 1/4" Unbalanced
Maximum gain: +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable ±10db)
Rumble Filter (Low Cut): 6 Frequencies (Out, 33,41,47,65,82,110hz)
Phantom power, Phase: Phantom (+48V), Phase( 0/180º)
Curve Bender EQ
Treble/Bass ShelfPresence (Out, 300hz, 500hz, 1.2k, 3.6k, 6.5k)Output controlBypassXLR Output
TG1 Opto Limiter
Independently patachable (XLR I/O)HoldAttackReleaseKnee (Sharp/Rounded)Output (makeup gain)BypassLinkable (1/4" Jack)
External/PSU-1, Purchased separately
July 20, 2016
This is one of the best preamp that I ever owned.
Vocals are clear and well balanced... the opto is a bit tricky at first but once you get the hang of it ..its great ...also amazing on drums acoustic guitar and Bass...a must have in your studio
