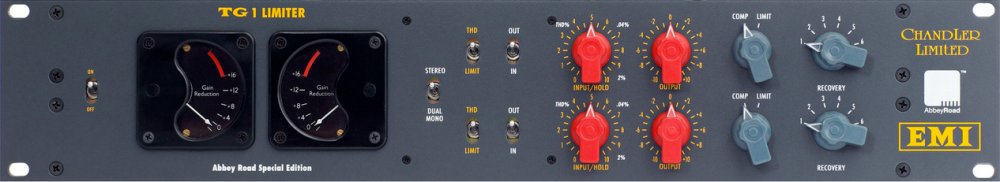

Chandler TG1 Abbey Road Special Edition


Financing available
Free shipping in Canada. Conditions

Mono compressor/limiter, 1 space 19" rackmount

The TG1 Limiter was originally designed to be like the Fairchild 660/670 which was loved by many EMI engineers including Geoff Emerick, but it ended up with its own very special sound.

TG equipment was used on many classic records. The Limiter was featured on every channel of TG consoles used to record The Beatles "Abbey Road" and Pink Floyd "Dark Side of the Moon," in addition to albums by Paul McCartney and the Rolling Stones.

The Limiter/Compressor features an all discrete circuit with transformer balanced input and output. The limiting element is a rarely seen diode network that produces smooth, pleasing distortion. The warm open sound, often compared to a Fairchild 670 set to stun, is very audible and squishy sounding while maintaining its clarity and high frequency response.

Now standard on all Abbey Road Special Edition TG-1's, this option allows bypassing of the compressor/limiter threshold but leaves all circuits in the signal path, turning the unit into a powerful Harmonic Distortion generator capable of kicking out up to 2% Total Harmonic Distortion. That's more than 2 times the amount of analog tape! And all with 100% discrete transformer balanced circuits. Adjust the input for amount of THD and the output to match level. Try running Distortion on one channel and hard limiting on the other. The ultimate in retro! This option is placed on the front panel of the unit with a toggle switch for each channel.

All TG units require and function on the PSU-1, Chandler Limited power supply. The PSU-1 has an internal switch for setting voltage to 120V or 220V (115V/230V).
  • Recreation of EMI TG12413 Limiter
  • 100% Discrete Circuit
  • Transformer-Balanced Input and Output
  • Diode Network Limiting
  • Harmonic Distortion Bypass Function
  • Add Up to 2% Total Harmonic Distortion
  • Audio Taper Input Controls
  • Requires Chandler Limited PSU-1
  • Channels: Stereo / dual mono
    Circuit: Discrete, transistor
    Connections: 2x XLR (All connections transformer balanced pin 2 hot)
    Power: ±28 V (Requires Chandler Limited PSU-1 MKII power supply.)
    Rackmountable: 2RU
