Clear-Com RM-702

Clear-Com RM-702 is a single rack-space, two-channel station is powered by the intercom line. Operator can talk and/or listen on either or both channels.

Accepts line-level audio program input via DB-15 Connector, with both channels programmable for interrupt. Microphone limiting and speaker "dipping" circuit for greater output before feedback.
Features
  • Selectable one- or two-channel communication
  • Individual listen volume controls
  • Momentary/latching talk buttons
  • Individual call buttons
  • Visual call signaling
  • Balanced audio input with program interrupt (IFB)
  • "Hot mic" and line-level outputs
  • Studio announce output with relay
  • Optional plug-in gooseneck mic
  • Wide-range high-output speaker
  • One rack space
  • LED buttons for talk, call, announce, link, all talk, and mic on
  • Specifications
    Panel Microphone Input
  • Input Type : Electret
  • Input Impedance: >=2K
  • Mic Limiter Threshold: 0dBu ±3dB
  • Mic Limiter Range: >= 20dB

  • Headset Microphone Input
  • Input Type: Dynamic
  • Input Impedance: >= 1K
  • Mic Limiter Threshold: 0dBu ± 3dB
  • Mic Limiter Range: >= 15dB

  • Program Line Input
  • Maximum Level before Clipping: >= 20dBu
  • Input Impedance: >= 5K

  • Headset Output
  • Load Impedance: >= 8
  • Output Impedance: <= 25
  • Output Limiter Threshold: +5dBu ± 3dB
  • Maximum Output Level before Distortion: >= 17dBu

  • Speaker Output
  • Load Impedance: >= 4
  • Max Output Level before 1% Distortion: 20dBu ± 2dBu

  • Party-line Output
  • Off Noise: < -74dBu
  • Output Impedance: >10K

  • Party-line Input
  • Crosstalk: < -60dB
  • Max level before Clipping: >= 12dBu
  • Sidetone Null Capability: > 25dB

  • Stage Announce/Balanced Line Out
  • Type: Balanced
  • Output Impedance: >= 200
  • Load Impedance: >= 600

  • IFB/Hot Mic
  • Type: Unbalanced
  • Output Impedance: 180
  • Load Impedance: >= 600

  • Frequency Response
  • Panel Mic - Party-line: 600 - 10KHz ± 3dB
  • Headset Mic - Party-line: 200 - 12KHz ± 3dB
  • Headset Mic - Line Out: 200 - 12KHz ± 3dB
  • Program Input - Party-line: 100 - 17KHz ± 3dB
  • Program Input - Headset Out: 200 - 10KHz ± 3dB
  • Program Input - Speaker Out: 300 - 10KHz ± 3dB
  • Party-line - Headset Out: 200 - 10KHz ± 3dB
  • Party-line - Speaker Out: 300 - 10KHz ± 3dB

  • Max Distortion
  • Panel Mic - Party-line: <= 0.5%
  • Headset Mic - Party-line: <= 0.5%
  • Headset Mic - Line Out: <= 0.5%
  • Program Input - Party-line: <= 0.2%
  • Program Input - Headset Out: <= 0.2%
  • Program Input - Speaker Out: <= 0.5%
  • Party-line - Headset Out: <= 0.2%
  • Party-line - Speaker Out: <= 0.5%

  • Noise
  • Panel Mic - Party-line: < -65dBu
  • Headset Mic - Party-line: < -70dBu
  • Headset Mic - Line Out: < -55dBu
  • Program Input - Party-line: < -85dBu
  • Program Input - Headset Out: < -60dBu
  • Program Input - Speaker Out: < -60dBu
  • Party-line - Headset Out: < -50dBu
  • Party-line - Speaker Out: < -50dBu

  • Max Gain
  • Panel Mic - Party-line: >= 37dB
  • Headset Mic - Party-line: 41dB ± 2dB
  • Headset Mic - Hot Mic Out: 55dB ± 3dB
  • Headset Mic - Announce Out: 55dB ± 3dB
  • Program Input - Party-line: >= -16dB
  • Program Input - Headset Out: >= 18dB
  • Program Input - Speaker Out: >= 24dB
  • Party-line - Headset Out: >= 34dB
  • Party-line - Speaker Out: >= 40dB

  • Min Gain
  • Panel Mic - Party-line: <= 25dB

  • Power
  • Input Voltage Range: 20-30 VDC
  • Input Current (Idle): <= 90mA
  • Input Current (Max): <=110mA

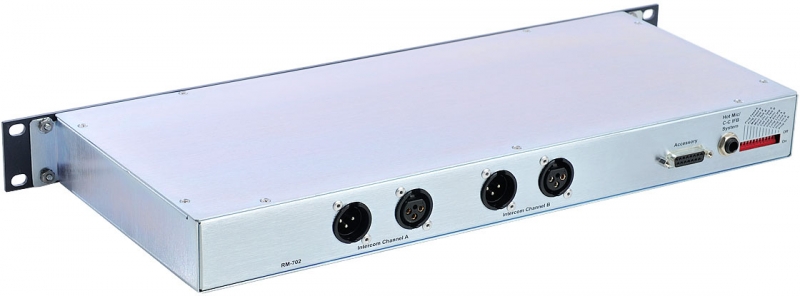

  • Rear Panel Connectors
  • Intercom: (2) XLR-3M (1 per channel)
  • (2) XLR-3F (1 per channel)
  • Hot Mic / IFB Interface: (1) 1/4 in. (0.64 cm) phone jack
  • Accessory: (1) DB-15F

  • Rear Panel Controls
  • (12) Option switches

  • Front Panel Connectors
  • Panel Mic: (1) 1/4 in. (0.64 cm) panel mounting jack
  • Headset: (1) XLR-4M

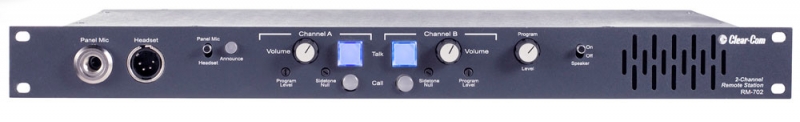

  • Front Panel Controls & Indicators
  • (1) Panel / headset mic switch
  • (1) Announce button
  • (2) Program send level controls
  • (1) Program monitor level control
  • (2) Listen controls
  • (2) Sidetone null controls
  • (2) Talk buttons
  • (2) Call buttons
  • (1) Speaker ON-OFF switch

  • Environmental
  • 32 - 122F (0 - 50C)

  • Dimensions
  • 19 in. W x 1.75 in. H x 7.0 in. D
  • (483 mm x 44.5 mm x 178 mm)

  • Weight
  • 5.2 lbs. (2.36 Kg)
  • Reviews
    Price

    $1622.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the RM-702, please visit the website of Clear-Com
