Clear-Com TW-47

Clear-Com/RTS 2-Way Radio Interface, connects Clear-Com or RTS to any 2-way radio

Compatible with both Clear-Com and RTS®, TW-47 connects virtually any set of walkie-talkies to anyone on the wired partyline intercom; simply use one walkie-talkie as a basestation. The base station radio is keyed from the intercom call signal. Extensive RF and EMI isolation prevents interference from entering the intercom system. Separate transmit and receive level controls are provided, along with audio level and transmitter keying indicators. The stand-alone interface is powered by the intercom line.

Note: Two-way radio must have headset and microphone jacks.
Specifications
Radio to Partyline
Line Chracteristics
  • Frequency Response: 200-20KHz ± 3dB
  • Max Gain: >=-5dBu
  • Distortion: <=0.3%
  • Noise: <=-70dBu
  • Max Level Before Clipping: >=+17dBu
  • Green LED Threshold: -22dBu ± 3dB
  • Red LED Threshold: -16dBu ± 3dB
  • Input Impedance: 400 ± 100

  • Partyline to Radio
    Line Characteristics
  • Frequency Response: 200-8KHz ± 3dB
  • Max Gain J7 ON, J8 ON: -12dBu ± 3dB
  • Max Gain J7 OFF, J8 ON: +2dBu ± 3dB
  • Max Gain J7 OFF, J8 OFF: +27dBu ± 3dB
  • Distortion: <=0.3%
  • Noise: <=-50dBu
  • Max Level Before Clipping: >=0dBu

  • Power Requirements
  • Input Voltage Range: 20-30VDC
  • Quiescent Current: <=40mA
  • Current with Audio: <=50mA
  • Current with Call: <=60mA

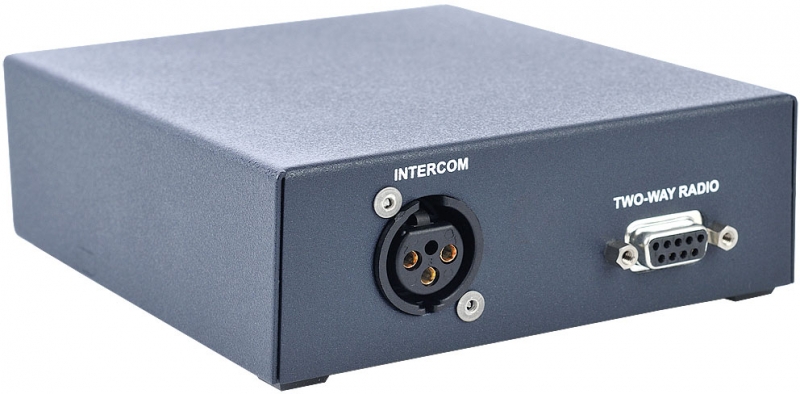

  • Rear Panel Connectors
  • (1) XLR3F
  • (1) DB-9F

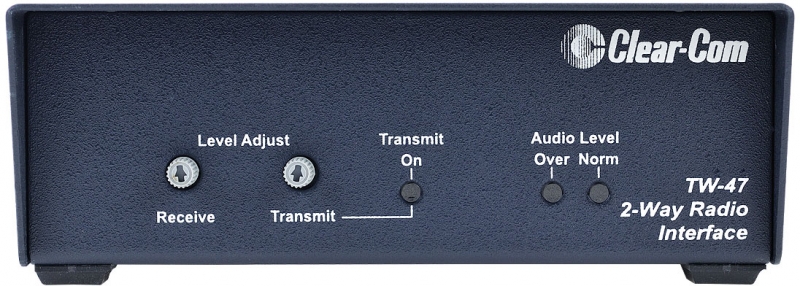

  • Front Panel Controls and Indicators
  • Transmit: (1) Red LED
  • Audio Level Hi: (1) Red LED
  • Audio Level Norm: (1) Green LED
  • Receive Level Adjust: (1) Control
  • Transmit Level Adjust: (1) Control

  • Dimensions
  • 1.63 in. H x 4.75 in. W x 5.15 in. D
  • (41.4 mm x 121 mm x 131mm)

  • Weight
  • 1 lb. 4 oz. (0.6 kg)
  • Reviews
    Price

    $755.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the TW-47, please visit the website of Clear-Com
