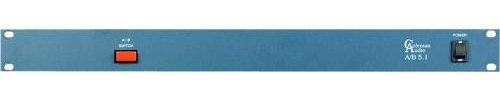

The A/B 5.1 switcher is designed to be used as either a simple selector between two 5.1 speaker systems or used to select between two different input sources to feed a single 5.1.
Provides precision 5.1 Surround switching for source comparison or alternate speaker selection. The unit provides completely passive relay switching for up to three, six-channel surround paths. The unit can be configured with one input and two outputs as a speaker selector, or two inputs to one output for source comparison. Interconnect with the Coleman SR5.1 is easy with ¼" TRS jacks.
Twelve balanced inputs on TRS jacks
Six balanced outputs on TRS jacks
Completely passive switching
Can be used Bi-directionally as a source select or speaker select
