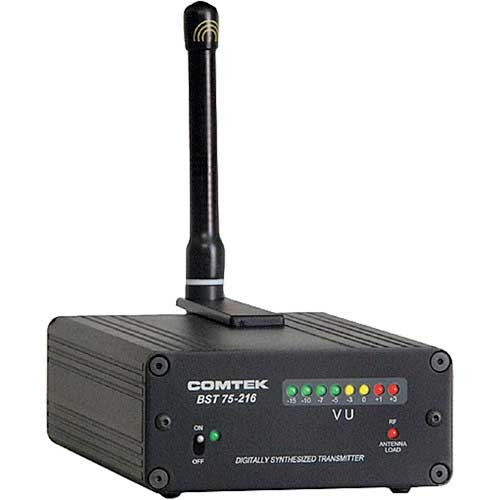

Comtek BST 75-216 CW
MPN #BST 75-216 CW
Communication version with all 10 channels using the wide band compounded channels with the standard EQ. For use with the PR-216 receiver only.

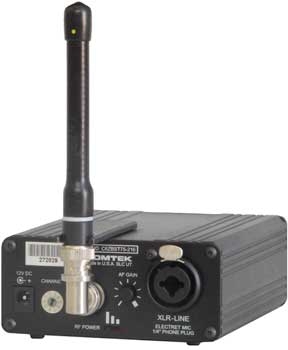

This versatile and innovative transmitter is simple to use, yet it has sophisticated features such as "Flash Memory" synthesized channel programmability with a manual, 10-channel selectable switch. A unique multi-function RF indicator detects bad antenna load, RF presence, and coaxial cable open condition for quick and easy troubleshooting. To accommodate a greater variety of receivers, the BST 75-216 can operate with non-companded receivers or with companded receivers for higher fidelity sound reproduction. A practical, compact, all-metal enclosure is suitable for permanent rack-mount installations or for stand-alone portable use.
Full Fidelity Frequency ResponsePerfect for Sound CartsCompact DesignEasy Setup and InstallationUser Selectable RF Output Power Level
XLR-3F balanced line input (+20 dBm max)1/4 " mono plug input (+5 dBm max) or two wire electret microphone input with internal bias voltage.ConnectorsXLR-3F Combo with 1/4" phone jackBarrel type 5.5mm x 2.1mm power jack DCBNC type RF outputAntennaShort Loaded BNC whip antennaBNC RF output connector for optional external antennaPower Requirements12 Volts DC, 200 mA maxFrequency Response100 Hz TO 10 kHzAudio DistortionLess than 1% at 80% modulationAudio Gain ControlLimited to 20 dBRF Output Power100 mW (Max for FCC Part 95)Audio PrecessingCompanded and non-companded to accommodate a variety of receiversFrequency Modulation10 kHz deviation companded5 kHz deviation non-companded (for all-in-ear receivers)Dimensions3.75" W x 1.625" H x 5.25" DWeight17 oz. (1.06lb)DOWNLOADSAll documents are in PDF format>> BST 75-216 Tech Sheet>> BST 75-216 User ManualCOMPATIBILITYThe BST 75-216 Mini Base Station Transmitter is compatible with the following receivers:>> PR-216>> PR-216 Option 7
