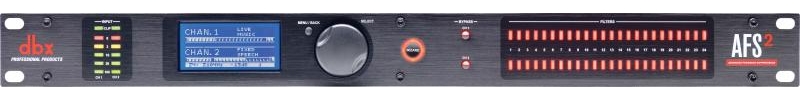

The AFS2 Advanced Feedback Suppression processor has been completely re-designed to take the foundation of the best selling AFS224 and bring it to thte next level.
The AFS2 now offers the highly-intuitive Wizard function that takes all of the guesswork out of setting up any room. The AFS2 also incorporates a completely re-designed Advanced Feeback Supression module. Best of all, the AFS2 now provides the user with a full LCD display setup and monitoring.
With its powerful DSP module, the AFS2 provides all the processing and control necessary for both installation and live use. Ten and twelve filter feedback elimination processors are the de facto standard, but the AFS2 offers a dedicated feedback suppression processor that offers up to 24 filters per channel with filter Qs up to 1/80 of an octave. To achieve these staggering numbers dbx utilized their improved AFS technology that had previously only been available in the upper echelon line of products and made it available in this stand-alone processor. In addition to the plethora of feedback suppression filters available, the AFS2 also offers selectable modes, live filter lift, and types of filtration, which are all readily available via the intuitive user interface front panel. With all of these state-of-the-art features in place, not only do you hear no evil, but you will now be able to see no evil.
Wizard Setup FunctionFull LCD Displaydbx's Patent-pending (Advanced Feedback Suppression) AFS technology24 Programmable Filters per ChannelStereo or Dual Independent Channel ProcessingLive and Fixed Filter ModesSelectable Filter Lift TimesApplication-specific filter types include: Speech and Music Low, Med and HighInput channel Metering24 LED per Channel Filter MeteringXLR and TRS Inputs and Outputs
Number of Inputs : 2Input Connectors : Female XLR and 1/4" TRSInput Type : Electronically balanced/unbalanced, RF filteredInput Impedance : Balanced 50k, Unbalanced 25kMax input line level : +20 dBuCMRR : > 40dB, typically >55dB @ 1kHzNumber of Outputs : 2Output Connectors : Male XLR and 1/4" TRSOutput Type : Electronically balanced/unbalanced, RF filteredOutput Impedance : Balanced >120 , Unbalanced >60Max Output Level : +20 dBuA/D Converter : dbx Type IV Conversion SystemA/D Dynamic Range : >113 dB A-weighted, >110 dB unweighted, 22kHz BWType IV Dynamic Range : >119 dB, A-weighted, 22kHz BW; >117 dB, unweighted, 22kHz BWA/D Conversion : 24-bitSample Rate : 48kHzD/A Dynamic Range : 112 dB A-weighted, 109 dB unweightedD/A Conversion : 24-bitDynamic Range : 109 dB A-weighted, 106 dB unweighted, 22kHz BWTHD+Noise : 0.003% typical at +4 dBu, 1 kHzFrequency Response : 20Hz - 20kHz, +/- 0.5dBInterchannel Crosstalk : >80 dB typicalCrosstalk input to output : >80 dBOperating Voltage : 100-120VAC 50/60 Hz - EU: 220-240 VAC 50/60 HzPower Consumption : 9 WUnit Weight : 4.5 lbs. (2.04 kg)Dimensions : 1.75" (H) x 5.75" (D) x 19" (W), 4.4cm (H) x 14.6cm (D) x 48.26cm (W)
GTIN (UPC/EAN) : 691991401510
Numéro de pièce du fabricant : DBXAFS2V
