DBX DBX260V
UPC/EAN #691991400483
MPN #DBX260V
6x2 system processor, full bandpass and crossover, 28-band GEQ, AFS feedback suppression, RTA mic input, limiter, delay, GUI, Auto-EQ, pink noise generator

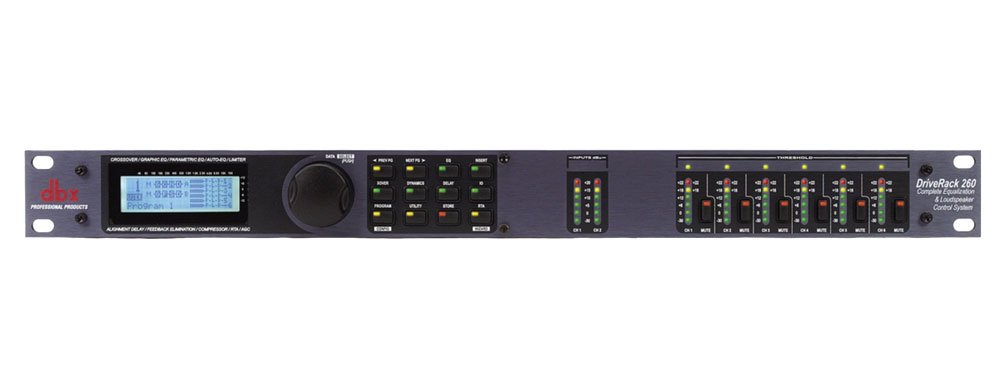

The dbx DriveRack 260 is a powerful loudspeaker management processor engineered for professional touring, portable sound systems, and fixed installations. It delivers a comprehensive suite of tools for optimizing and protecting your audio system, ensuring precise control and pristine sound in any environment. With dual-channel processing, a six-channel output matrix, and advanced features like automatic EQ, real-time analysis (RTA), and feedback suppression (AFS), the DriveRack 260 elevates any PA system's performance.
From auto gain control and crossover configuration to classic dbx compression, PeakStopPlus limiting, and the 120A Subharmonic Synthesizer, this processor integrates everything needed for complete signal processing. The 260 also supports PC control via RS-232, JBL and Crown preset wizards, and includes wall panel logic control for contractor applications-making it both flexible and scalable for any professional audio setup.
Features
Comprehensive Loudspeaker Control: Offers full bandpass, crossover, EQ, compression, and routing for precise system tuning.6 Outputs, 2 Inputs: Two independent input channels and six output channels allow flexible speaker configurations.Advanced Feedback Suppression (AFS): Automatically detects and eliminates problem frequencies during live performance.Built-In Auto-EQ and RTA: Real-time analyzer and Auto-EQ with pink noise generator optimize sound for any room.Setup Wizard: Guided setup process includes JBL speaker and Crown amp tunings for easy system integration.28-Band Graphic EQ & Parametric EQ: Flexible EQ options on both input and output channels for fine-tuning audio.Classic dbx Compression & PeakStopPlus Limiting: Ensures system protection and polished dynamic control.Zone & Alignment Delay: Up to 2.7 seconds of delay per channel for precise time alignment in complex installations.Wall Panel Control Inputs & RS-232 Control: Ideal for contractors and installed sound, allowing remote control and integration.Secure & Scalable: Security lockout, DriveWare GUI, and scalable architecture make it suitable for portable and permanent systems.
Specifications
General Specifications
Processor Type: Loudspeaker management systemChannels: 2 input channels, 6 output channelsApplications: Installed sound, portable PA systems, tour rigsControl Interface: RS-232 PC GUI, wall panel logic inputs, front panel Wizard setup
Input Section
Line Inputs: 2 x XLR femaleRTA Mic Input: 1 x XLR female with +15V phantom powerInput Type: Electronically balanced, RF filteredInput Impedance: >40k ohmMax Input Level: +30 dBu (jumper set to +30 position)CMRR: >45 dBEIN (Mic Preamp): < -110 dB, 22 Hz"22 kHz, 150 ohm
Output Section
Outputs: 6 x XLR maleOutput Type: Electronically balanced, RF filteredOutput Impedance: 120 ohmMax Output Level: +22 dBu
Audio Performance
A/D Conversion: dbx Type IVA/D Dynamic Range: >113 dB A-weighted (line), >110 dB unweightedType IV Dynamic Range: >119 dB A-weighted, 22 kHz BWD/A Dynamic Range: 112 dB A-weighted, 109 dB unweightedTotal Dynamic Range: >110 dB A-weighted, >107 dB unweightedTHD+Noise: 0.003% typical at +4 dBu, 1 kHzFrequency Response: 20 Hz " 20 kHz, +/-0.5 dBInterchannel Crosstalk: >110 dB (typical 120 dB), input-to-output >100 dBSample Rate: 48 kHz
Processing Features
Input Processing: 28-Band Graphic EQ (linkable), dbx Compressor, AFS Feedback Suppression, Auto Gain Control, 120A Subharmonic Synthesizer, Pink Noise Generator, fulltime RTAOutput Processing: Parametric EQ, PeakStopPlus Limiters, Alignment DelayRouting: Full bandpass, crossover, and custom configurationsAuto-EQ: Included, with RTA mic inputPresets: Setup Wizard with JBL speaker and Crown amp tuningsSecurity: Lockout features
