DBX DBXVENU360-V
UPC/EAN #691991401497
MPN #DBXVENU360-V-TW
$1819.99
Économisez 17.1%, Prix suggéré $2196.00
Loudspeaker manager with 3 inputs, 6 XLR outs, AutoEQ, AFS feedback suppression, 31-band EQ, mobile app control, crossover, delays, USB, 48/96kHz support.

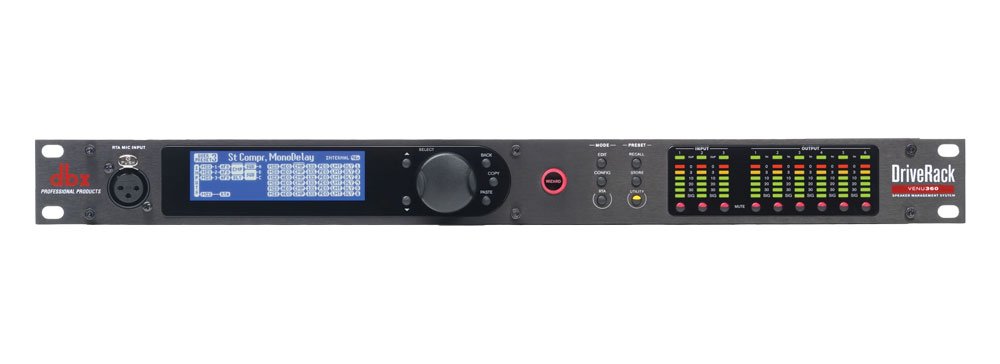

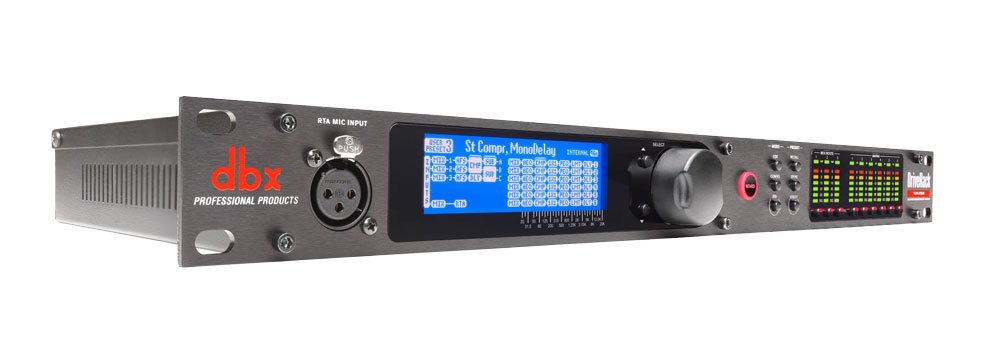

The dbx DriveRack PA2 is a powerful and complete loudspeaker management system, designed to optimize and protect PA systems between your mixer and amplifiers. Tailored for both seasoned professionals and mobile sound engineers, it integrates all essential signal processing tools into one rack-mounted unit-making it an all-in-one solution for managing live sound with precision.
At the heart of the DriveRack PA2 are its advanced AutoEQ and AFS (Advanced Feedback Suppression) algorithms. AutoEQ quickly calibrates your room EQ and speaker levels with the help of an RTA mic, reducing setup time and eliminating the need for prolonged test tones. The enhanced AFS algorithm automatically anticipates and suppresses feedback without compromising your audio's tone. For added convenience and versatility, the unit features full mobile device control via Ethernet for Android, iOS, Mac, and Windows platforms, enabling intuitive wireless management from anywhere in the venue.
The PA2 offers flexible input and output processing, including dbx compression, graphic and parametric EQs, subharmonic synthesis, and crossover settings for full-range, 2-way, or 3-way speaker configurations. Driver alignment delays and limiting functions further ensure that your system remains safe and sonically optimized. Built to handle complex systems while remaining user-friendly, the dbx DriveRack PA2 is an indispensable tool for delivering professional-grade sound in a wide range of live sound environments.
Caractéristiques
Automatic Room EQ (AutoEQ): Instantly adjusts speaker levels and EQ using a reference mic for fast, precise sound tuning.Advanced Feedback Suppression (AFS): Eliminates feedback automatically without affecting audio quality.Flexible Input & Output Processing: Includes compression, graphic EQ, parametric EQ, subharmonic synthesis, crossovers, limiting, and driver alignment delay.Mobile Control from Any Device: Full control via Android, iOS, Mac, or Windows over Ethernet or Wi-Fi.Easy Setup Wizard: Step-by-step guidance for optimal speaker tuning and configuration.Supports a Variety of System Types: Compatible with full-range, 2-way, and 3-way speaker setups.RTA Mic Input for Room Analysis: Enables accurate AutoEQ and feedback suppression.USB-Free Wireless Setup: Works with many tested routers for wireless remote control.Durable and Rack-Ready Design: Compact 1U rackmount build with robust connectors and clear layout.
Spécifications
General Specifications:
Complete loudspeaker management system3 analog inputs, 2 AES digital inputs (shared), 6 outputsFull mobile and desktop control via Ethernet (Android, iOS, Mac, Windows)Advanced AutoEQ and AFS algorithmsMonitor and FOH system optimization capabilityApp-based GUI for full processing control
Input Section:
3x XLR analog line inputs (2 switchable to AES digital)1x XLR RTA mic input with +48 VDC phantom powerElectronically balanced, RF filteredInput impedance: >30 k ohmMax input level: > +28 dBu, balanced, ?1% THDCMRR: >50 dB @ 1 kHz

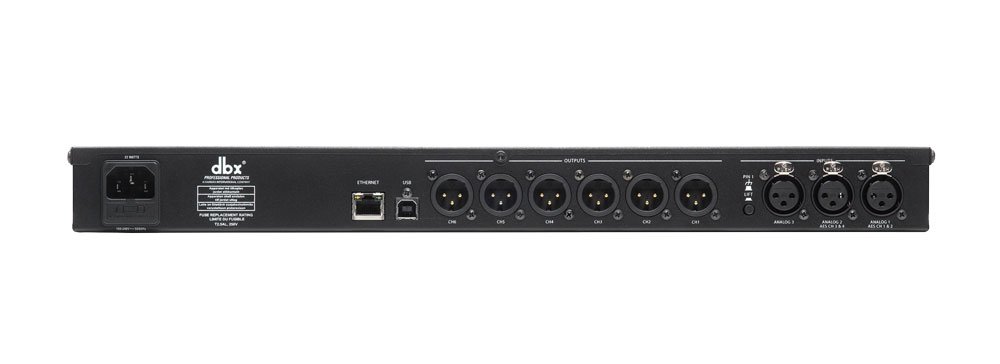

Output Section:
6x XLR electronically balanced, RF filtered line outputsOutput impedance: 120 ohmMax output level: +22 dBu, balanced, ?1% THDAlignment delay: Up to 1000 ms per output
Input Processing:
dbx compressionAFS (Advanced Feedback Suppression)31-band graphic EQ12-band parametric EQ (with notch filter capability)Subharmonic synthesisBackline delayNoise gate
Output Processing:
Crossover for full range to mono 6-way configurations12-band AutoEQ (8 AutoEQ bands + 4 user bands)dbx compressionAutomatic gain controlSubharmonic synthesisNoise gateTower delays: up to 1000 ms per output8-band parametric EQs (for speaker tuning)dbx limitingDriver alignment delays
Audio Performance:
A/D Converter: 24-bit with dbx Type IVA/D dynamic range: 117 dB A-weighted, 114 dB unweightedType IV dynamic range: up to 129 dB A-weightedD/A Converter: 24-bitD/A dynamic range: 116 dB A-weighted, 113 dB unweightedInternal processing: 32-bit floating pointSupported sample rates: 48/96 kHz (32-192 kHz with conversion)System dynamic range: 114 dB A-weighted, 110 dB unweightedTHD+Noise: 0.0025% typical at +4 dBu, 1 kHzFrequency response: 20 Hz - 20 kHz, +/-0.5 dBInterchannel crosstalk: < -97 dB, typical -105 dB
Latency:
Analog input to output: 2.57 ms (48 kHz), 2.28 ms (96 kHz)AES digital input to output: 2.31 ms (48 kHz), 2.15 ms (96 kHz)
Power & Physical:
Operating voltage: 100-240 VAC, 50/60 HzPower consumption: 18 WDimensions: 1.75" (H) x 8.0" (D) x 19" (W) / 4.4 cm x 20.32 cm x 48.26 cmUnit weight: 5.48 lbs (2.49 kg)Shipping weight: 7.10 lbs (3.22 kg)
Tested Wireless Routers:
Dlink 636L, Cloud Router 2000Cisco/Linksys WRT54G2V1Netgear WGR614 v7, WNR 1000 (others likely compatible)
