Deity Microphones SPD Mini
UPC/EAN #6971842186105
MPN #DTE0331D90

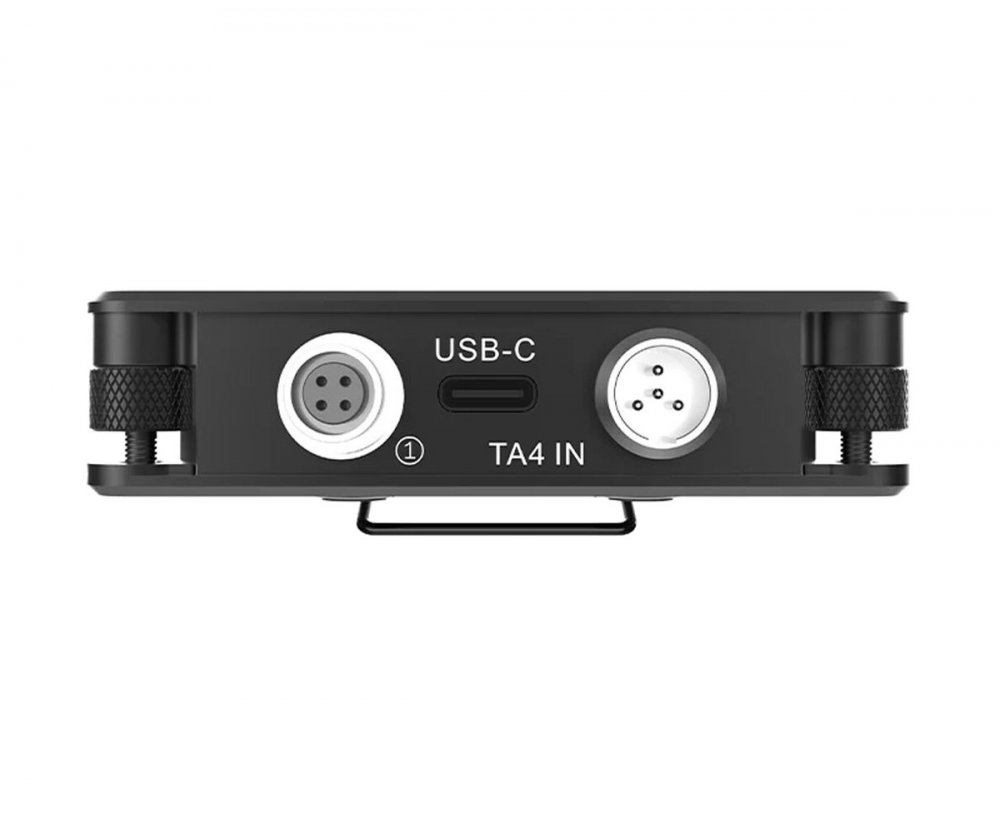

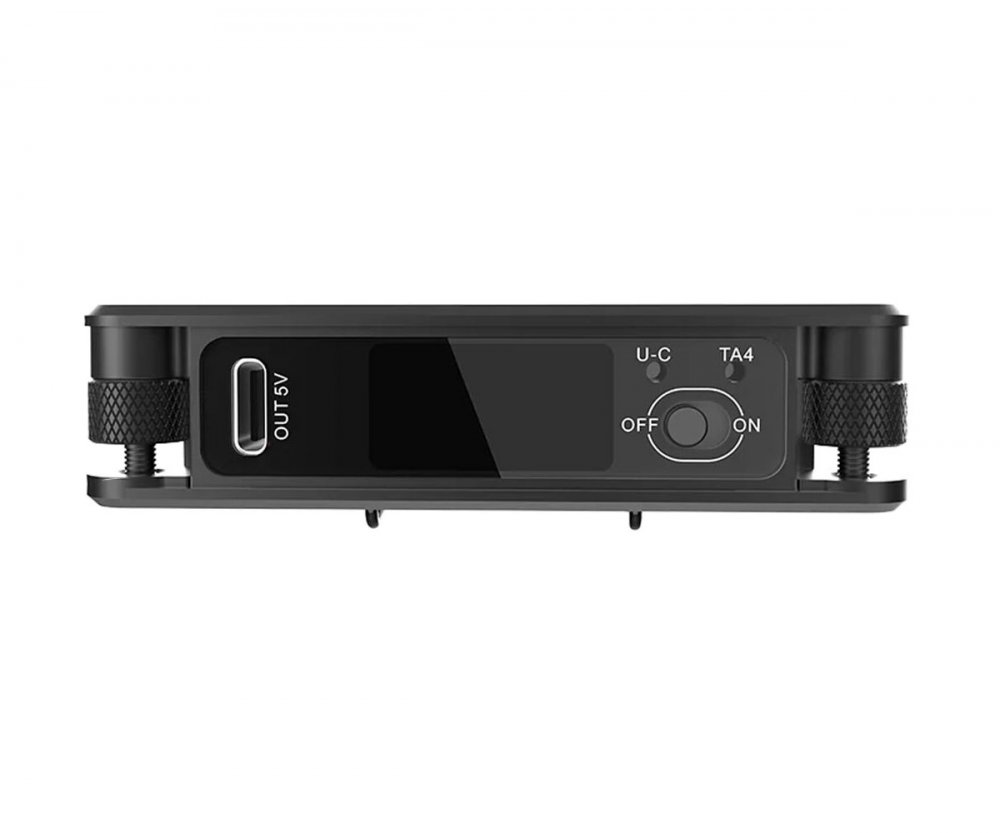

Compact power distro with 5x 4-pin ports, smart battery telemetry, USB-C 10W output, flip screen, TA4/USB-C input, Regional Power cable-free linking

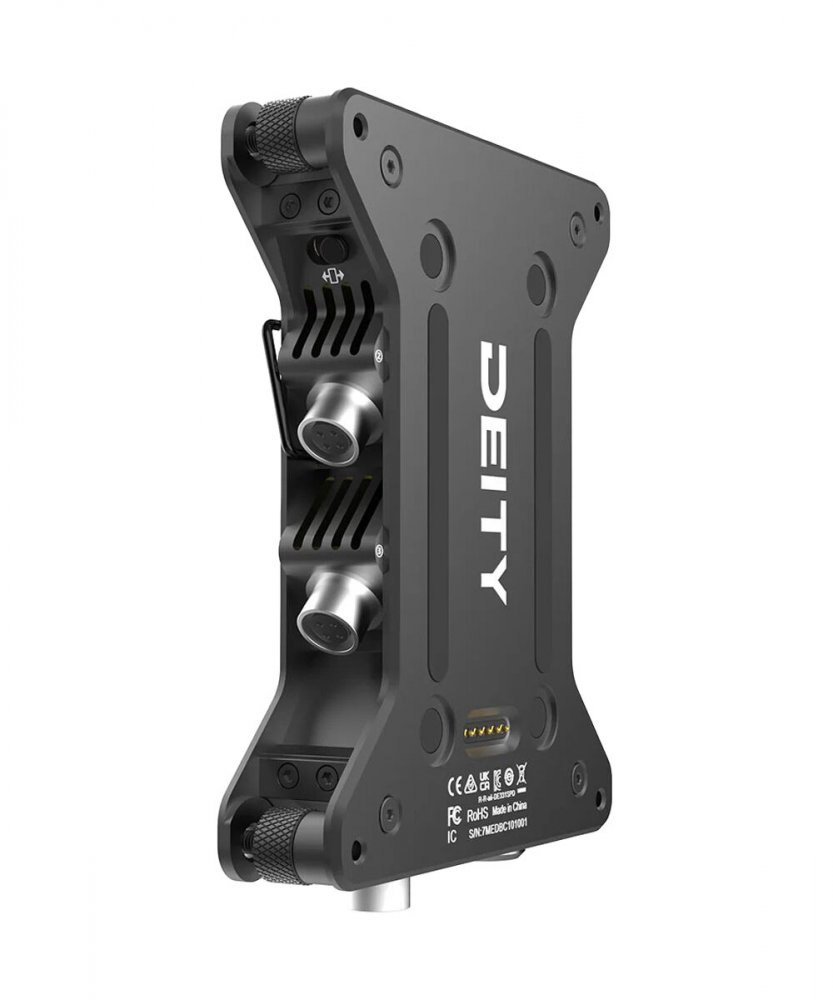

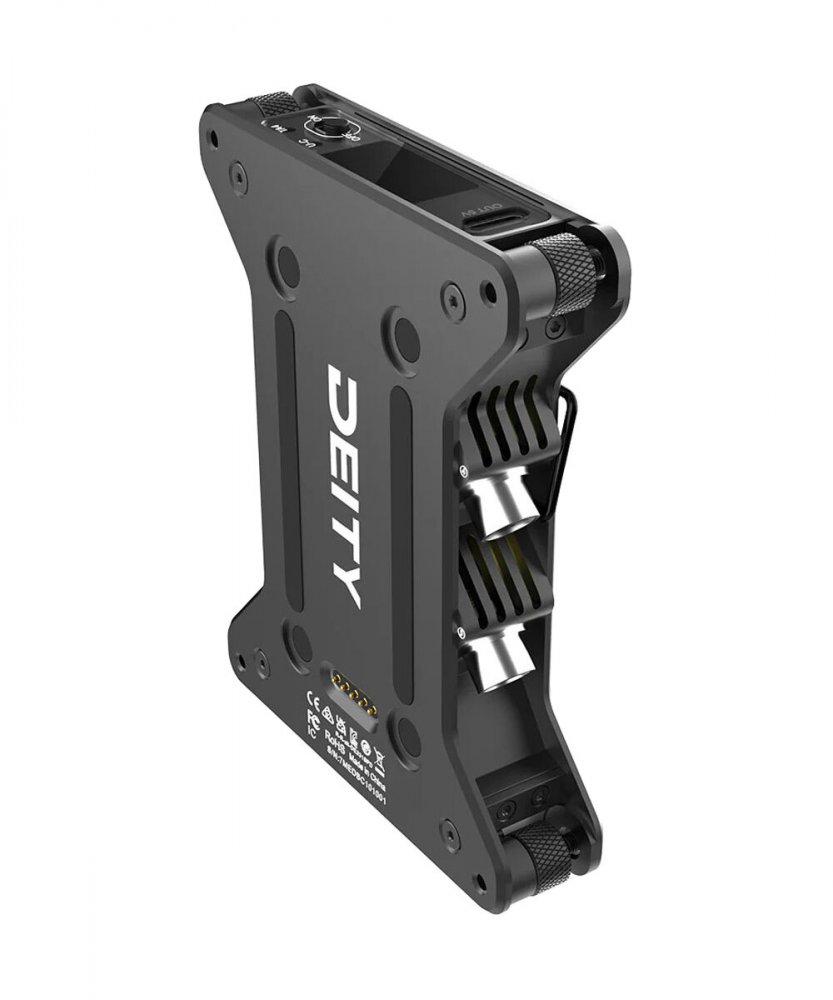

The SPD Mini is a compact, intelligent power distribution hub designed to streamline your sound bag setup while maximizing efficiency. Equipped with a vibrant color screen that can flip orientation and dual belt clip mounting options, it offers flexible rigging for any production scenario. Five 4-pin Push-Pull power ports provide reliable energy distribution, each controllable via a convenient top-mounted switch.
Beyond its compact size, the SPD Mini includes a 5V USB-C output (10W) for charging mobile devices like tablets running the Sidus Audio app. It also supports Smart Pass Thru via TA4 battery cups and USB-C PD input (12V/15V), with Output #1 capable of relaying smart battery telemetry-ideal for devices like the Sound Devices 8-Series, including the SD 888.
Part of the Regional Power System, the SPD Mini can seamlessly mount and power-share with compatible modules like the SRD-Mini RF distro, offering an extra cable-free power output for a clean and efficient setup. Designed to minimize clutter while delivering professional-grade power flexibility, the SPD Mini is the backbone of any modern location sound workflow.
Caractéristiques
Compact Power Distribution: Distributes power to up to five devices via 4-pin push-pull ports with individual control.Color Display with Flip Function: Bright screen can be flipped for easy viewing, no matter how it's mounted.USB-C Output: Built-in 5V USB-C port to power or charge phones and tablets.Smart Battery Pass-Through: Supports TA4 smart battery cups and USB-C input, passing telemetry data to compatible audio recorders.Rigging Flexibility: Two belt clip mounts and multiple threaded points offer customizable mounting options.Regional Power System: Connects seamlessly with other compatible gear to share power without extra cables.
Spécifications
General Specifications
Product name: SPD MiniDevice type: Portable power distributorDisplay: Color screen with orientation flip switchMounting: Dual belt clip pointsConstruction: Designed for sound bags
Power Outputs
Power ports: 5 - 4 Pin Push Pull power portsPort control: Top mounted on off switchSpecial output: Output number 1 passes smart battery data to compatible recorders
USB Power
USB C output: 5V at 10W power deliveryIdeal for charging mobile devices running Sidus Audio app
Power Inputs
Smart Battery compatibility: TA4 battery cups supportedUSB C input: Defaults to 15V PD standard, also compatible with 12V PD
Smart Features
Telemetry pass thru: Output number 1 supports data passthrough to devices like Sound Devices 8 seriesMax output handling: Supports load up to Sound Devices 888
Regional Power System
Interconnectivity: 4 threaded mounting points for connection with compatible devicesShared power: Enables cable free power output to docked devices
Compatibility Note
Designed to dock with SRD Mini RF Distro for expanded functionality
