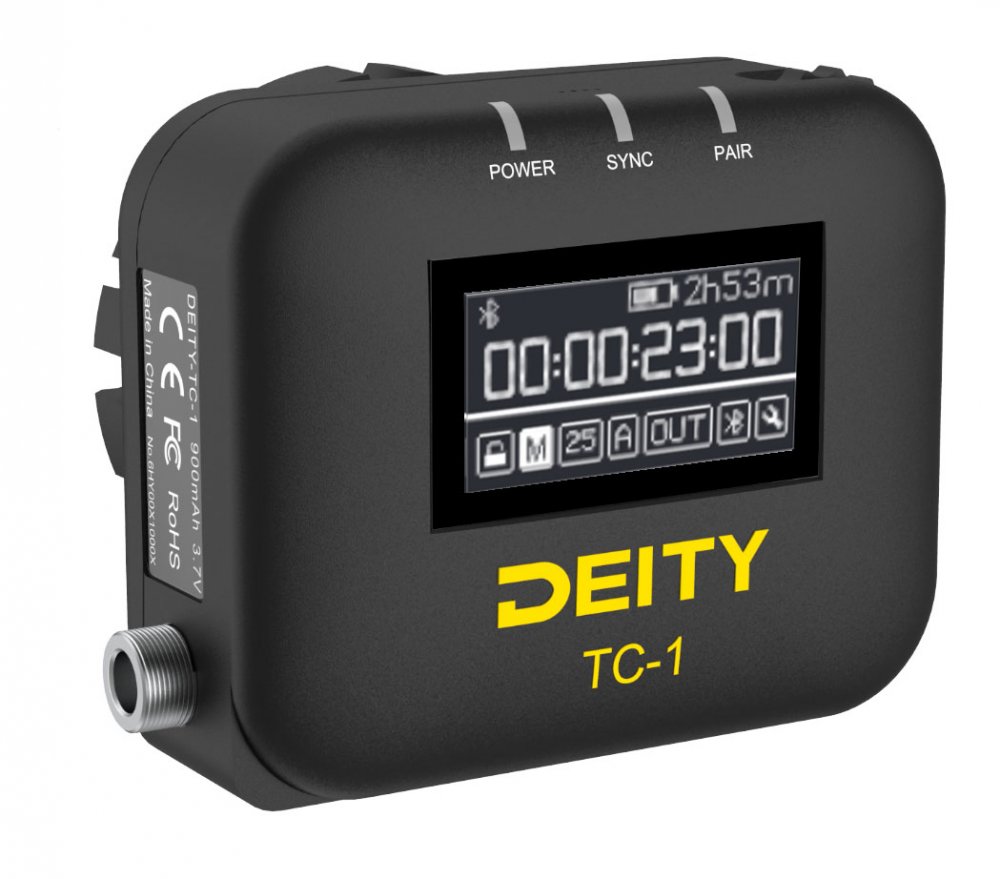

Deity Microphones TC-1 Wireless Timecode Box
Wireless timecode generator with locking 3.5mm timecode port, Bluetooth 5.0, and support for all SMPTE timecode format
The TC-1 takes the best parts of timecode box units from the past and brings them all together into a timecode generator built for the future. We developed it to fit into your workflow, no matter how you work. You can wirelessly jam it from your phone or even wirelessly sync it from other boxes using our proprietary 8-channel 2.4G radio ecosystem. You can also hardwire jam it or use it to internally generate timecode and jam other devices.
LONG RANGE WIRELESS CONTROL
Using our exclusive Bit Connectify?? technology you can control up to 20x TC-1 wireless timecode generator boxes from 250ft away. The TC-1 has 600% more control range than Bluetooth timecode boxes from leading competitors.
The TC-1 also features a secondary RF chip for syncing TC-1 to TC-1 devices from a range of 30ft. When syncing the timecode from the phone, you can transmit up to 250ft to the master TC-1 and then 30ft to each other TC-1 timecode box around the master node.
FRAME ACCURATE TIMECODE
Each TC-1 timecode generator box features a TCXO with an accuracy of ±0.5ppm. And through firmware optimization, your footage will sync perfectly when you go to edit with less than 1 frame of drift in a 72-hour period.
LOCKING 3.5MM TC CONNECTION
You won't have to worry about your TC cables getting unplugged with the TC-1. The port is also compatible with other brands' non-locking 3.5mm TC cables.
TIMECODE MAKES POST EASIER
With more devices than ever now supporting SMPTE timecode, syncing footage and audio in post has never been so easy or quick. With the TC-1 and other items (like the BP-TRX and the TC-SL1) you can use the workflow methods used by studio feature films.
BUILT-IN SCRATCH MIC
The TC-1 timecode box features an on-board scratch microphone for when you're using a Mirrorless or Action Camera that only feature a stereo mic input.
LOCKING TIMECODE PORT
We talked to members of the sound mixing community and made sure we answered your concerns. The TC-1's timecode port is a locking 3.5mm TRS connector. Never worry about your timecode cables becoming unplugged during a shoot.
Supported Deity Timecode Cables:
Deity C13 - Locking 3.5mm to 5-Pin Right Angle Camera Timecode CableDeity C14 - Locking 3.5mm to 5-Pin LEMO Timecode CableDeity C15 - Locking 3.5mm to BNC Timecode Cable
Locking 3.5mm Timecode PortBluetooth 5.0: Max Range 250FT2.4G Sync Radio; Max Range 30FTWorks with the app Sidus AudioSupports all SMPTE Timecode FormatsTimecode Accuracy 0.5ppm1 Frame Drift Every 72 HoursShowcases a 1? OLED DisplayOn-board Controls and MenuUSB-C Charging; 2 Hours to Fully Charge, Up to 28 Hours Battery LifeLED Status Lights Indicate Power, TC Sync, and Wireless Pairing
Timecode : SMPTE
Wireless Type : 2.4G RF / Bluetooth 5.0
Wireless Range : ? 30ft - 2.4G RF
? 250ft - BT 5.1LE
Wireless RF Channels : 8
Drift : < 1 Frame/24Hrs
Frame Rates : 23.98, 24, 25, 29,97,
Timecode Input / Output : Locking 3.5mm TRS
Audio Track Built-In : Omni Microphone
Battery Life : Up to 24Hrs
Battery Type : LiPo
Battery Capacity : 950mAh
Charging Port : USB-C
Charging Time : 3 Hours
Mounting : Hook-n-Loop
Dimensions : 53.4 x 40 x 21.8 mm
Weight : 41g
Temperature Range : -20C to +45C
in the box:
3*Deity TC-1 Wireless Timecode Box
1*Deity Timecode Cold Shoe Mount
1*Locking 3.5mm TRS to TRS Cable
1*Deity Locking 3.5mm to BNC Timecode cable
1*Locking 3.5mm to 5-Pin Right Angle Camera Timecode Cable
1*3 in 1 charging cable
1*USB-C to Type A Firmware Adapter
