Demeter Amplification HDI-1 - Tube Direct Box

The H Series Tube Direct (HDI-1) is a versatile new addition to the Demeter line of professional tube audio equipment.

Demeter Amplification, the originator of the first commercially available Tube Direct Box has taken the technology to a new level with this innovative product incorporating the same tube driven ultra high impedance input (27megohms) found in the original Tube Direct (to prevent instrument pickup loading) and a new balanced line level output section. The unit can be used as both line level direct instrument input or as a line level driver to add tube warmth to line level digital interfaces.

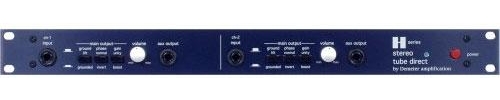

The front panel features two independent channels, with seperate 1/4" inputs, ground lift, phase preset, unity gain (+ 6dB with balanced output) and a tube driven (cathode input plate output) boost mode with 20dB of boost controlled by a continuously variable volume control and a unity gain low impedance tube driven output to drive external instrument amplifiers or effects. The rear panel features seperate TRS and 3-pin connectors for each channel. As with all H series units, the power supply is fully regulated (for low noise) supplying 220v B+ to the tubes. Hand built in the U.S.A. with the finest components available.
Specifications
Input impedance:
27megohms

Output impedance:
50ohms

THD @ 1KHz: .
035% unity
.081% boost

Bandwidth:
20 to 20KHz

Signal to noise:
- 98dB

Gain:
20dB/unity

Output:
@ 600ohms + 28dB

Tubes:
2-2AX7a

Outputs:
TRS 3-pin rear, 1/4" mono front

Operating voltage:
230/115V AC
Reviews
Price *

$1217.00
Free shipping in Canada. Conditions
Additional information
For more information about the HDI-1 - Tube Direct Box, please visit the website of Demeter Amplification
