Denon DN-312X
MPN #DN312XXUS
12-channel line mixer with priority

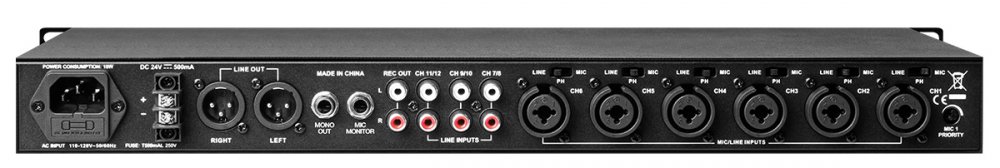

The DN-312X is a 1U rack-mounted 12-channel mixer that can solve countless audio challenges. It features 6 mic/line combination inputs (HDHQ? Denon-Marantz proprietary mic pre?s) each with switchable phantom power and 6 additional line-level inputs. It has balanced XLR outputs, a 1/4-inch (6.3mm) mono output that can be used to connect the DN-312X to a remote mixer, a pair of RCA stereo outputs to connect to a remote recording device, and 1/4-inch (6.3mm) mic monitoring port that can be used to monitor the mics? signals. The DN-312X provides individual level control for all inputs in addition to level control for the mono output port and a master level control. Rounding off the feature set, It has a 3-level equalizer and a controlled priority for Mic/Line 1. It can be powered from standard AC or a 24V DC power source, inviting it to be used in a variey of applications; everything from a classtroom to a tour bus.
Features
6 HDHQ Combination inputs with MIC, Phantom and Line selector switches6 mono (3 stereo) RCA InputsMic monitor 1/4? output for private listening of all mic inputsBalanced XLR line outputsMono 1/4? line output can be used to feed audio to external recording deviceAC or 24V DC power inputsMic 1 Priority ControlMaster and Individual level controls1U rack mountable
Specifications
Input Channels
Microphone Input:
6 Balanced XLR Connectors (Channels 1"6)
Frequency Response:
20 Hz - 22 kHz
THD+N:
< 0.03% @ 1 kHz
Sensitivity:
-40 dBu
Maximum Input:
-19 dBu
Maximum Voltage Gain:
60 dB (Mic Input to Line Out, Mic Out & Mono Out)
50 dB (Mic Input to Rec Out)
Signal-to-Noise Ratio:
> 103 dB
Phantom Power:
18"21 V, switch control
Line Inputs:
6 Balanced XLR Connectors (Channels 1"6)
Frequency Response:
20 Hz - 22 kHz
20 Hz - 22 kHz
THD+N:
< 0.03% @ 1 kHz
Sensitivity:
0 dBu
Maximum Input:
+21 dBu
+21 dBu
Maximum Voltage Gain:
20 dB (Mic Input to Line Out, Mic Out & Mono Out)
10 dB (Mic Input to Rec Out)
10 dB (Line Input to Line Out)
0 dB (Line Input to Rec Out)
4 dB (Line Input to Mono Out)
Signal-to-Noise Ratio:
> 103 dB
Stereo Balanced RCA Connectors (Channels 7/8-11/12)
THD+N:
< 0.03% @ 1 kHz
Sensitivity:
+10 dBu
Signal-to-Noise Ratio:
> 103 dB
Impedance:
Mic/Line Input:
1.4 k?
Line Input:
> 10 k?
All Outputs:
120 ?
Equalizer
High:
+15 dB @ 12 kHz
Mid:
+12 dB @ 2.5 kHz
Low:
+15 dB @ 80 Hz
Crosstalk
Adjacent Inputs:
< -70 dB @ 1 kHz (Channels 1"6)
< -68 dB @ 1 kHz (Channels 7/8"11/12)
Input to Output:
< -82 dB @ 1 kHz
Main MixOutput
Line Output:
0 dBu (+2 dBu), balanced
Mic Output, Mono Output:
0 dBu (+2 dBu), unbalanced
Maximum Output:
+21 dBu balanced/unbalanced, 1/4? (6.35 mm) jacks
Noise (Bus):
< -83 dB @ 20 Hz " 22 kHz
General
Power connection:
IEC
Input Voltage:
100V~, 110-120V~, 50/60Hz; 220-240V~, 50/60Hz or DC24V
Dimensions (width x depth x height):
19.0? x 7.7? x 1.7? (483 x 195 x 44 mm)
Weight:
6.4 lbs (2.9 kg)
