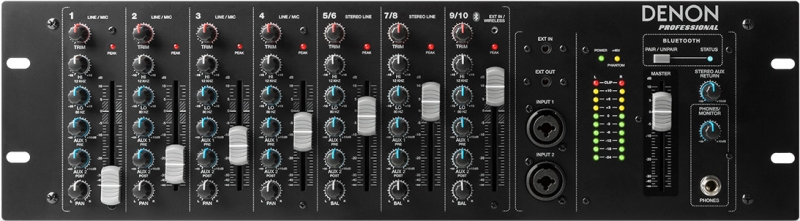

The Denon DN410X is a 10-Channel Rackmount Mixer with Bluetooth.
Perfect control and mixing of every source, every time
The Bluetooth®-enabled DN-410X 3RU rackmount mixer is ideal for event spaces, restaurants, night clubs and hospitality use. It enhances any audio system's capabilities with premium sound quality, flexible signal routing and wireless streaming capability, letting you quickly play back virtually any audio source, including content from smartphones and tablets-ideal in this 'Bring Your Own Device' (BYOD) era.
Comprehensive Input Facilities
The DN-410X provides you with a wealth of inputs to accommodate every popular type of audio device including A/V sources, microphones and instruments. Channels 1-4 each provide an XLR mic input with available +48v phantom power; a balanced ¼-inch (6.3mm) TRS line input, plus a TRS ¼-inch insert jack for incorporating additional effects (optional). Channels 5-8 have been set as stereo pairs, offering ¼-inch left and right inputs. Channels 7-8 also provide left and right RCA inputs.
Bluetooth Flexibility
You can stream a wireless stereo audio signal from any Bluetooth device to Channels 9-10 of the DN-410X. Single-button pairing makes connecting an audio source simple, so you can play music during breaks in the presentation, stream audio from a computer during a multimedia event, or even play a specific track from a smartphone to handle a special situation. The articulating Bluetooth antenna provides optimum reception while a dedicated volume control conveniently integrates additional audio sources at the touch of a button.
Input/Output Convenience
This is a mixer with a "flexibility-first" approach. With two front-panel XLR inputs, you can quickly adapt to performance changes on the fly without reaching behind their rack of A/V equipment. The DN-410X puts an end to snaking cables from front to back, reaching around to the back and blindly guessing at the input, or worst of all, un-mounting the mixer to get at the jacks you need.
The wealth of input and output types ensure adapter-free connection to loudspeakers or amplification systems: XLR, balanced ¼-inch and RCA. An internal power supply and rigid metal construction complement the intuitive layout with long-term reliability.
Your Reliable Solution
Until now, commercial A/V professionals had limited choices for integrating the countless audio sources they run into on a daily basis. However, the Bluetooth-enabled DN-410X is the reliable solution that will confidently handle every audio switching and integration requirement that comes along.
Features
4 XLR inputs; 2 in the front for conveniencePre-fader and post-fader aux sends; stereo aux returnDual multi-segmented LED meters and a Master output fader allow you to easily monitor and control your levelsConvenient front panel jacks add versatilitySpace-saving 3U rackmount design is perfect for venues and mobile rigsBluetooth streaming with simple single-button pairing4 high-gain mic/line preamps with inserts2-band high and low shelving EQ on every channel
Specifications
Inputs
Channels 1-4 (mono)
Mic: XLR with switchable phantom powerLine: 1/4" MonoInsert: 1/4" TRSFront: XLR+1/4" combo jacks(Channels 1 and 2 only-overrides rear jacks
Channels 5-6 (stereo pair)
Line: 1/4" Left, Right
Channels 7-8 (stereo pair)
Line: 1/4" Left, RightRCA: Left, Right
Channels 9-10 (stereo pair)
Bluetooth: Stereo Streaming InExt: 1/8" Stereo (front panel)Aux Return: 1/4" TRS Balanced Left, Right
Outputs
Main: 1/4" TRS Balanced Left, Right
Monitor: 1/4" Left, Right
Aux Send 1: 1/4"
Aux Send 2: 1/4"
Headphones: Stereo 1/4"
Ext: 1/8" Stereo (front panel
Design
3U Rackmount chassis
Detachable power cable
Dimensions
Height: 5.25"
Depth: 6.25"
Width: 19"
Weight: 8.9lbs
Frequency Response
20 Hz - 50 KHz, ±0.5 dB
Dynamic Range
108 dB
THD+N
< 0.005% (Mic/Line Input to Main Out)
Maximum Gain
70 dB (Mic Input to Main Out)
Headroom
24 dB
Bluetooth Specifications
Version: 3.0
Maximum Transmission Power: Class 3, +4 dBm
Transmission Frequency: 2.4 GHz
Transmission Range: Up to 100 feet / 30.5 meters
Receiver Sensitivity: < -70 dBm @ 0.1% BER
Supported Profiles: A2DP
Power
Input Voltage
115 VAC, 60 Hz; 230 VAC, 50 HzRear panel voltage selector
Fuse
115 VAC, 60 Hz: T630 mAL 250 V230 VAC, 50 Hz: T315 mAL 250 V
Dimensions (width x depth x height)
19.0" x 6.25" x 5.25"
48.3 cm x 15.9 cm x 13.3 cm
Weight
8.9 lbs.
4.0 kg
GTIN (UPC/EAN) : 0694318017616
Manufacturer Part Number : DN410XXUS
