MPN #DAD AX3R-BASE

$5155.00

Financing available
Free shipping in Canada. Conditions

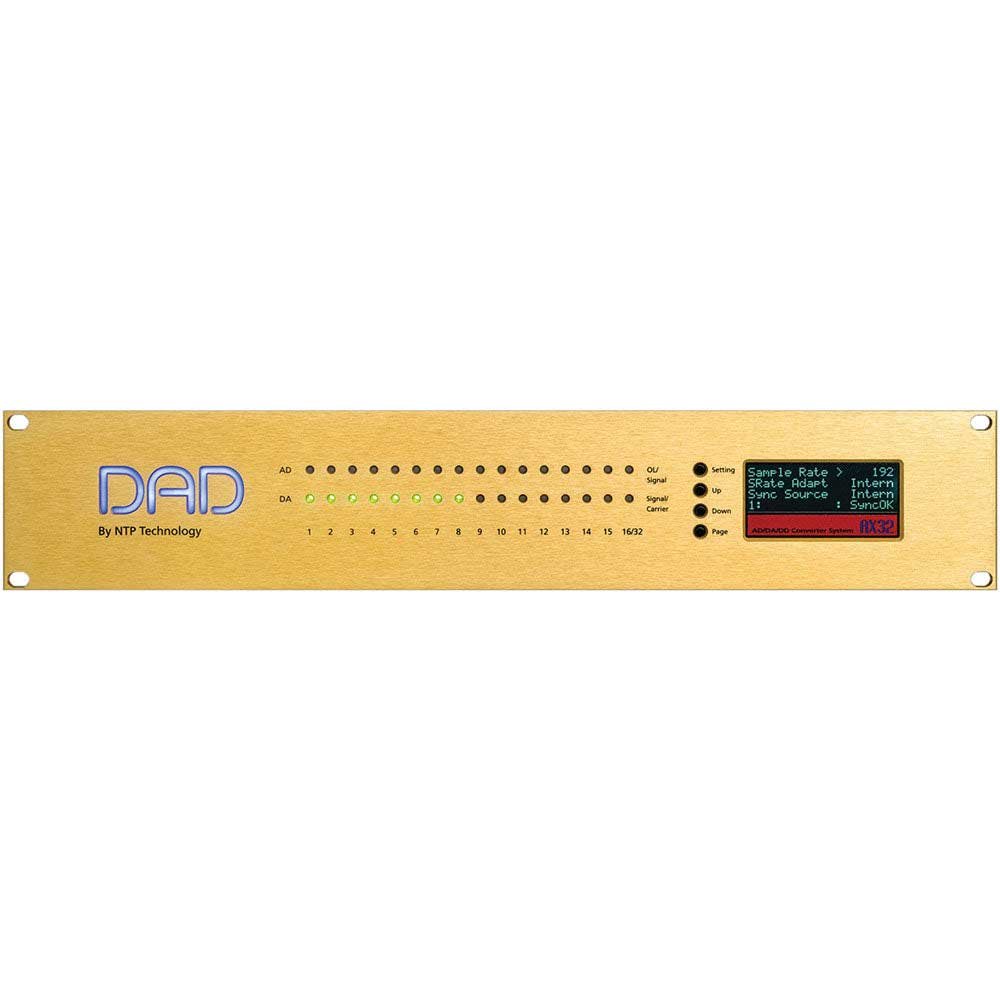

AD/DA Converter & Digital Audio Matrix with 8 to 48 channel A/D-D/A conversion



AX32R is an audio routing centerpiece, digital format converter, world-class AD/DA converter and monitor controller. Quite simply, AX32R changes seamlessly between workflows in seconds, optimizing your production time and efficiency.

With the AX32R you get pristine AD and DA conversion with superb sonic quality, versatile I/O structure and IP Audio via Layer 3 Ethernet (Dante) that follows the track of the AX24R with an enhanced performance in terms the sonic quality of the AD andDA conversion, up-to 48 analogue audio channels and a flexible digital signalinterface, routing and distribution structure.

With all I/O card and options installed, you can control a 1,500 x 1,500 matrix of audiochannels. 8 I/O cards and 2 I/O modules can be installed. Just imagine the flexibility and swift change between workflows you would have right at yourfingertips.

All operation and functional control is managed via the DADman control software.
FLEXIBLE AD/DA INTERFACE CONFIGURATION W/ MIC-PRE OPTION
  • Versatile digital interface structure
  • Easy control of converter parameters
  • 8 to 48 analogue channels
  • 8 channels on a card. Up-to 6 analogue card can be installed
  • 8 ch. Line in AD card and 8 ch. Line/Mic pre in AD card
  • 8 ch. Line out DA card with output level control
  • Sample rates 44.1 kHz up-to 384 kHz/DSD
  • High precision internal clock and PLL

  • VERSATILE DIGITAL INTERFACE STRUCTURE
  • Dante 128 ch. I/O Card w/ SRC
  • 8 AES3 I/O interfaces
  • MADI coax and optical I/O
  • 3G SDI embedded audio I/O
  • Ethernet IP audio interface for 64 I/O channels using Dante?
  • Synch via word clock, AES11, Video, and all digital I/O
  • Adapt to incoming sample rate

  • EASY CONTROL OF CONVERTER PARAMETERS
  • Operation via DADman control software for Windows and OSX
  • Ethernet control interface
  • Compliant with the Dante Ethernet controller

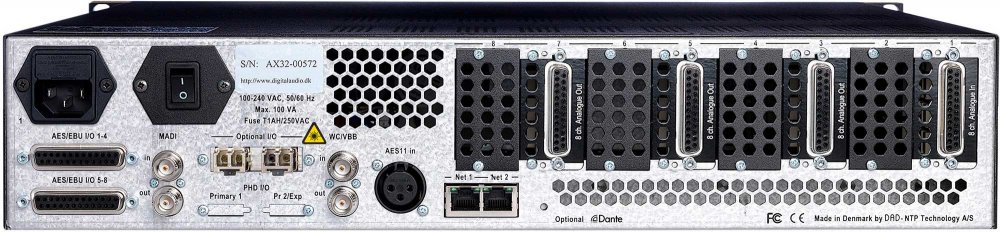

  • STANDARD INTERFACE CAPABILITY
  • 8 AES3 I/O on two D25 connectors with16 mono channels
  • MADI I/O on BNC connectors with 64 mono channels
  • Interface for IP Ethernet control

  • If you would like to use AX32R as a 64-channel interface for Pro Tools (TM), you would have to use Avid?s MTRX, which is essentially an AX32R with the addition of DigiLink connectivity.

    OPTIONAL I/O INTERFACES (SOLD SEPARATELY)

    A total of 8 card slots are available in the chassis frame. You can use 6 slots for analog cards each with 8 channels for a total of up to 48 AD/DA input and outputs.
  • 8 ch. Line pristine A/D card
  • 8 ch. Mic/Line pristine A/D card
  • 8 ch. pristine D/A card
  • Dante 128 ch. I/O Card w/ SRC
  • Dual SDI/HD/3G 2-16 ch. emb/deembed. card w/ SRC
  • 8 Line AES3 16 ch. I/O Card w/ SRC
  • Dual MADI 128 ch. I/O Card

  • In addition to the expansion slot cards, you can also expand the mainframe chassis with:
  • Dante IP audio on two redundant RJ45 connectors with 64 mono I/O channels
  • 2 x 64 ch. of MADI on either optical or coaxial connectors

  • Finally, you can allocate one or more expansion slots for the SPQ Speaker Processing DSP card that offer no additional I/O capability, but a staggering 1,024 individual EQ filters for speaker room correction on up to 128 channels.
    Audio Specifications
    Analogue input
    Sampling, resolution: 5bit sigma/delta@5.645 or 6.144 MHz, 24 bit PCM
    PCM (DXD) sample rates: 44,1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz
    DSD sample rates: 2.8224 & 5.6448 Mhz (64 & 128 fs)
    Dynamic range (A): > 123 dB
    THD+N(A): < -117 dB@-3dB FS / 0,00014%
    Cross talk: < -120 dB
    Input Impedance (differential): > 10 k Ohm
    Max input level: Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB
    Microphone input gain range/accuracy: Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy
    Microphone equivalent input noise (A): < -133dB

    Analogue output
    Modulator resolution, format: 32 x oversampling, 1 bit DSD, 24 bit PCM
    PCM (DXD) sample rates: 44,1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz
    DSD sample rates: 2.8224 & 5.6448 Mhz (64 & 128 fs)
    Dynamic range (A): > 128 dB
    THD+N(A): < -110 dB@-3dB FS / 0,00031%
    Cross talk: < 120 dB
    Max output level: Adjustable from -60 dBu to 24 dBu in steps of 0.1 dB

    Digital I/O and Synchronisation
    Digital I/O formats/ Supported sample rate: AES/EBU, Pro ToolsTMDigiLinkTM, DanteTMIP Audio/up to 192 kHz.MADI / up to 384 kHz and DSD
    Synchronisation/sample rate: AES11, Word Clock, All digital inputs, Video Sync (word clock connector)/ PAL, NTSC, SECAM
    Interface
    Network Interface: 1000BASE-T, RJ45 connector, 4-pair connection

    Electrical Specifications
    Power consumption: 90 VA max.
    Input voltage: 90 " 260 VAC
    100 " 240 VAC Nominal, 47 - 63 Hz
    Mains fuse, mounted in IEC connector 1 A, T1AH/250V
    Safety Compliance EN 60950-1:2006
    Power Cord Power supply cord must be min. light sheathed flexible cord according to IEC60227 (designation 60227 IEC 52) and include a protective earth conductor having a green-and-yellow insulation. Cross-sectional areas min. 3x0.75mm2?
    Mains line plug type
    110-125V UL817 and CSA C22.2 no 42
    220-230V CEE 7 page VII, SR section 107-2-D1/IEC 83 page C4.
    240V BS 1363 of 1984.Specification for 13A fused plugs and switched and unswitched socket outlets
    Mechanical specifications
    Chassis standard: 19?, 2 RU
    Chassis depth, without connectors mounted: 35.0 cm / 13.8?
    Chassis body width: 43.5 cm / 17.2?
    Weight, not including I/O cards: 5 kg / 11 lbs.
    Chassis air flow: from front to rear

    Environmental specifications
    Operating Temperature: 0 " 45 oC / 32 - 113oF
    Humidity
    EMC compliance:
    EN 55103-1, part 1: emission
    EN 55103-2, part 2: Immunity FCC 47 CFR part 15 (B): emission
