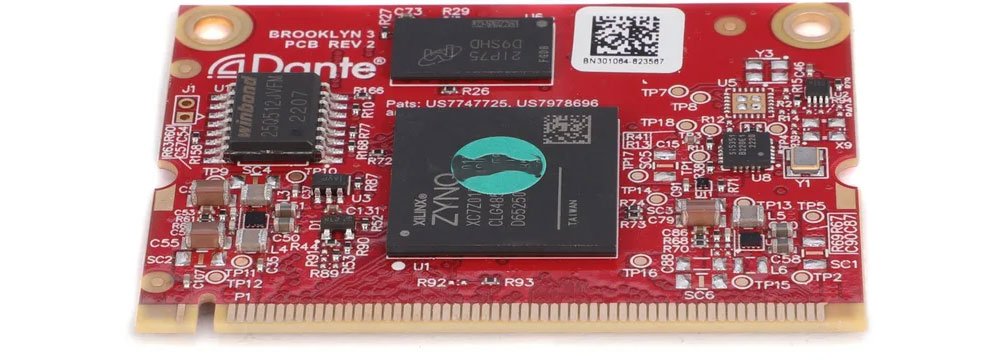

Digital Audio Denmark Brooklyn 3 Module
UPC/EAN #810164780188
MPN #NTP-MODDANTE
The Dante Audio Interface module is a mini-PCI form factor module that provides a complete, ready to use Dante interface for any networkedaudio product design
Audio Networking Workhorse
Dante Brooklyn modules form the backbone of networked audio installations around the world. They are used in products from hundreds of manufacturers including mixers, DSPs, microphone preamplifier's, and multi-channel power amplifiers. Featuring support for up to 64x64 channels of ultra-low latency networked audio in a small footprint, Brooklyn modules are the most widely used implementation of Dante to date.
Dante Brooklyn 3 is the latest evolution of the Brooklyn series and serves as a direct drop-in upgrade for Dante Brooklyn 2. With updated and more powerful processing capabilities, Dante Brooklyn 3 is ready to carry your products into the future of networked media.
The Dante Advantage
Dante Brooklyn 3 supports all the features that have made Dante the world leader in networked media, and more: auto discovery of devices, label-based one-click routing of signals, true plug-and-play operation, enhanced security and complete compatibility with Dante Domain Manager. With over 3000
Dante-enabled products available, the Dante Brooklyn 3 provides instant connectivity to the largest and most vibrant AV-over-IP ecosystem today.
Power for Powerful Products
Dante Brooklyn 3 is designed to meet the needs of manufacturers for years to come, with a powerful Xilinx
Zynq-7000 FPGA SoC that extends the lifecycle of the Dante Brooklyn series. A dual-core Arm Cortex A9 host processor supports OEM on-device applications such as user interface and system management.
A flexible synchronous serial audio interface provides 8 x SDIN and 8 x SDOUT audio lines with up to 2,000 samples audio buffering per channel, while two Serial Peripheral Interfaces (SPI) provide Leader and Follower functions for managing displays and product control. Additional control is supported through
two RS232 ports, four GPIO pins and an I2C system interface. Uncompressed audio is supported at 44.1/48/88.2/96/176 and 192 kHz sample rates.
Standard IP and IT Ready
All Dante-enabled products provide state-of-the-art performance over common IP networks with readily available switches and equipment and use easily understood standards for IT administration. When coupled with Dante Domain Manager, Dante Brooklyn 3 provides the monitoring, security, and scal-
ability that modern AV installations demand.
Features
Mini-PCI form factor: Ready to fit into virtually any design.Up to 64 x 64 redundant audio channels @ 48kHz.Sample rates: up to 64x64 channels at 44.1/48kHz, 32x32 at 88.2/96kHz and 16x16 at 176.4/192kHz.Wide interface support includes SPI, I2C, RS232 and configurable GPIO.Failover-free redundancy via secondary network.Powerful Dual Core Arm Cortex A9 Microprocessor for local control and management without the need for an additional CPU.Linux based software development environment for custom functionality and control.Easily integrates into existing network switch.infrastructure and automatically discovers other Dante-enabled devices on the network.Gigabit and 100Mbps Ethernet.Full API for creation of onboard and PC-based applications.Support for AES67 and SMTPE ST 2110-30 transport protocols.
Specifications
Applications:
8x8 to 64x64 channels.Dante Brooklyn 3 is ideally suited for medium to high channel count high performance audio products supportingMixing consolesDSPsRecordersAudio matrix switchersMedia convertersPreamplifiers
