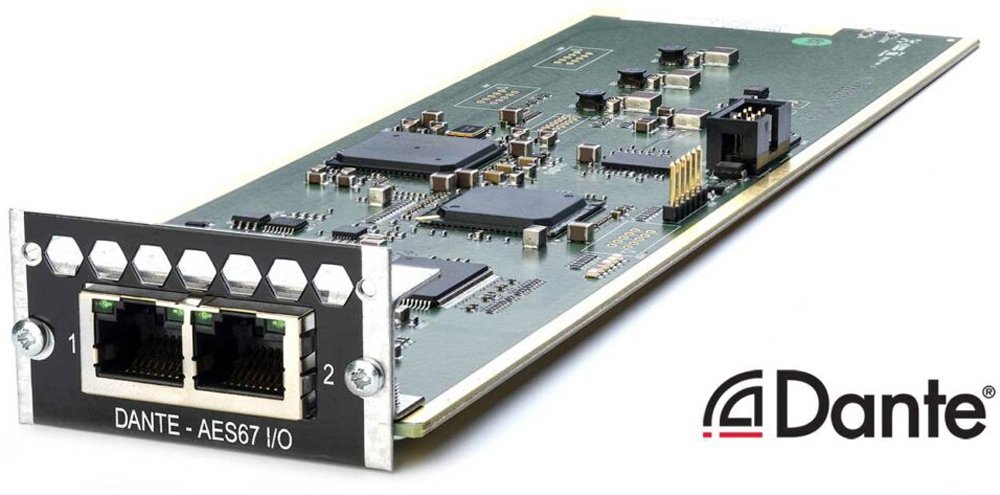

Digital Audio Denmark CARD-DANTE128
MPN #CARD-DANTE128
128 channels NTP IP Dante audio with sample rate conversion
The CARD-DANTE128 is a 128 Channel of Dante I/O, Built in Sample rate Conversion I/O, Dante/AES67 Network, Enables connections between Network and different sample rates
AX32R already support 64 channels of Dante IP Audio via an optional module, but in an effort to meet demand for an even higher channel count, our an optional expansion card adds another 128 channels to your digital audio-routing matrix.
Further, with eight slots available for expansion cards, you could ultimately have up to 1,088 Dante/AES67 channels, including the 64 channels that comes as standard, at 48 kHz.
Features
128 channels @ 48 kHz / 64 channels @ 96 kHz / 32 channels @ 192 kHzIndependent Sample Rate ConversionDual Redundancy Ethernet PortsAES67 SupportUp to 8 cards in a Single AX32R Mainframe
Specifications
No. of channels: 128 channels @ 48 kHz, 64 channels @ 96 kHz, 32 channels @ 192 kHzSample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHzSample rate conversion (SRC): 128 channels bi-directionalDynamic Range SRC: > 125 dBSRC Processing: 64-bit Floating PointAudio Processing Delay: 1 Sample on the CardNo. of Network Ports: Dual Ethernet, switched or redundantAoIP Format: Dante and AES67 with SAP DiscoveryNetwork Latency: 100 ns to 10 millisecondsPower Consumption: 4.5 WConnectors: 2 x RJ45
