MPN #DAD-DX32R-BASE

$3019.00

Financing available
Free shipping in Canada. Conditions

Dante, MADI & AES3 converter with up to 384x384 audio channels matrix



Monitor Control from Mono to Atmos

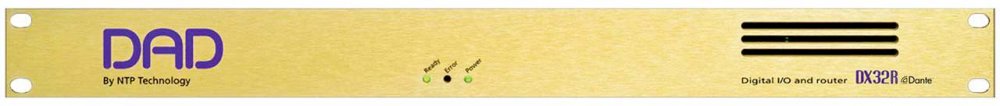

DAD DX32R is the heart of the ultimate monitoring system that is perfect for working with a Genelec speaker and GLM system. You can create monitor configurations from mono, stereo and surround to full-blown Dolby Atmos immersive audio with ease, and you can set up layers for unique user profiles or dedicated workflows. For instance, you can Interface DANTE, MADI and AES3 with routing control and Pro|Mon for up-to 9.1.4 monitoring via AES3.

Add the optional MOM hardware monitor controller for ultimate tactile and intuitive hands-on control.

DX32R is your versatile digital audio Swiss knife " an interface and matrix designed for multiple audio applications such as multi-room recording studios, post-production facilities and audio distribution installations. It allows you to route all digital input and output and manage them on a mono channel basis within a single unit or a combination of units.

With near zero latency, the DX32R can be used to expand I/O channel count and interface digital components, providing a high quality bridge between AES/EBU, MADI, and the Dante IP audio network.

SIGNAL ROUTING
DX32R include a 384-384 multiplexer, enabling all digital inputs and outputs to be routed in any combination; this enables the unit to also split signals for advanced signal distribution.

IP AUDIO POWERED BY DANTE
The DX32R IP Audio protocol is based on the robust tried-and-tested Dante? digital audio network technology, and will interoperate with products of other brands that comply with Dante.

The protocol is compliant with the AES67 standard for AoIP. The Dante and NTP IP Audio formats provide fast, flexible, and economical audio routing via IP and are compatible with the AX32 AD/DA converter, and other Dante devices. The IP Audio routing provides low latency, tightly synchronized, transport of uncompressed audio over Gigabit IP Ethernet Layer 3 networks using off the shelf switches, and routers for audio routing via one or more sub-nets.

Ethernet CableA total of 512 channels can be routed on a 1 Gigabit network, and more if the network capacity is higher.

CONTROL
DX32R is TCP/IP controlled via one of the two Ethernet ports vi the DADman Control software available for both Windows and OSX.

The routing of the IP audio via Dante is done by using the Audinate Dante controller software.

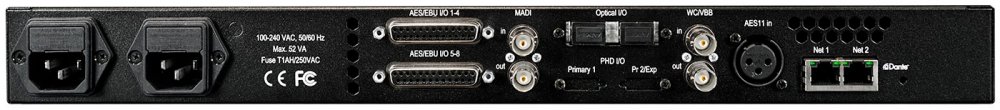

  • 8 AES3 I/O interfaces, 16 channels I/O
  • 1 MADI coax I/O, 64 channels I/O
  • 2 optional MADI coax or optical I/O, 128 channels I/O
  • Redundant Power Supply
  • Ethernet IP audio interface for 64 I/O channels using Dante(TM)
  • High precision internal clock and PLL

  • Key Benefits
  • Flexible patching and routing of digital audio signals
  • Stand alone IP audio interface and format converter
  • Interface for major digital audio workstations
  • Low latency, tightly synchronized, transport of uncompressed audio over IP networks using off the shelf switches
