This bundle includes our AD-24 analog input module and 4 CS-DUO dual mix personal mixers for a total of 8 mixes.
The Livemix Analog Bundle includes everything you need to get started with 8 mixes.
LIVEMIX AD-24 ANALOG INPUT RACK UNIT
24 balanced/unbalanced inputs¼" TRS & DB25 audio connectionsFront panel +4dBu/-10dBV switchesFront panel VU meteringHigh quality conversionExternal power supply
LIVEMIX MIX-16 CENTRAL MIXER
24 channel digital input24-bit digital mixing & processingProvides power to personal mixersExternal power supplyExpansion bayUSB connection to PC
LIVEMIX CS-DUO DUAL MIX PERSONAL MIXER
24 channelsTwo mixes, one personal mixer for reduced clutter and costLCD TouchscreenDedicated ME knobEQ, HPF, & dynamics with presets on every channelMirrorMix remote mixing (Hear and Mix remote CS-DUO's)Built-in ambient microphonesBuilt-in intercomAux input for medial playersMetronome1/8" and 1/4" headphone outsHigh powered crystal clear headphone amplifierRugged metal construction
LIVEMIX AD-24 (Analog Characteristics)
THD+N: .001%S/N Ratio: 111 dBFrequency Response: 20 Hz - 22KHz ± .5dBCrosstalk: -92 dBMaximum Input Level: +24 dBu (minor distortion above 23.5 dBu, hard clip at +24 dBu)Input Impedance: 20K Balanced, 10K UnbalancedMax cable length: 300 feet
Max Cable Length to CS-DUO: 100 ft. shielded CAT5/CAT6Max Cable Length to AD-24: 300 ft shielded CAT5/CAT6 cableBit Rate: 24-bit Digital Mixing and ProcessingSample Rate: 48 kHzUSB Output: 16-bit / 48 kHzDigital Format: Proprietary in systemExpansion: Option Card Slot
Output Power & THD+N:@22: 200mW @ 1% THD+N, 100mW @ .03% THD +N
@32: 250mW @ 1% THD+N, 100mW @ .014% THD +N
@64: 250mW @ 1% THD+N, 100mW @ .005% THD +N
@300: 130mW @ 1% THD+N, 100mW @ .003% THD +N
Frequency Response: 20 Hz - 22 kHz ± 3 dBS/N Ratio: 103 dBInput Impedance (aux in): 7.5 kCrosstalk (Left to Right): -103 dBMax Cable length from Mix16: 100 ft.Filter Q High Pass & Low Pass: .707Peak/Dip: 1.2Filter Cut/Boot Amount: +/- 6 dBAmbient Mic Gain: 25 dB

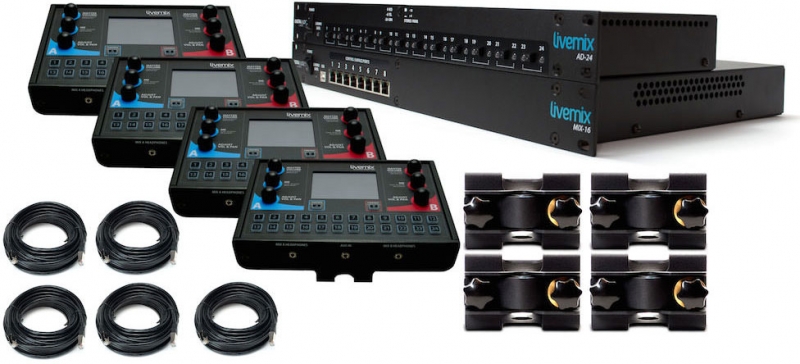

Livemix AD-24 - analog input rack unitLivemix MIX-16 - 16 mix central mixer4x Livemix CS-DUOs - dual mix personal mixers4x Livemix MT-1 - dual position mic stand mounts4x CBL-CAT6-50 - 50 shielded CAT6 cables (connects CS-DUO to MIX-16)1x CBL-CAT6-100 - 100 shielded CAT6 cables (connects AD-24 to MIX-16)
