This bundle includes our LM-DANTE-EXP Dante option card for the MIX-16, and 4 CS-DUO dual mix personal mixers for a total of 8 mixes.
The Livemix Digital Bundle includes everything you need to get started with 8 mixes.
LIVEMIX LM-DANTE-EXP DANTE DIGITAL OPTION CARD
Option card for MIX-16 (below)Easy configuration via Livemix CS-DUO personal mixerReceive up to 24 channels from multiple Dante devices48 kHz / 24-bit digital audioQuick import featureImport Dante channel labels to Livemix channels
LIVEMIX MIX-16 CENTRAL MIXER
24 channel digital input24-bit digital mixing & processingProvides power to personal mixersExternal power supplyExpansion bayUSB connection to PC
LIVEMIX CS-DUO DUAL MIX PERSONAL MIXER
24 channelsTwo mixes, one personal mixer for reduced clutter and costLCD TouchscreenDedicated ME knobEQ, HPF, & dynamics with presets on every channelMirrorMix remote mixing (Hear and Mix remote CS-DUO's)Built-in ambient microphonesBuilt-in intercomAux input for medial playersMetronome1/8" and 1/4" headphone outsHigh powered crystal clear headphone amplifierRugged metal construction
Input Channels: 24Bit Depth: 24 bitSample Rate: 48 kHzLIVEMIX MIX-16
Max Cable Length to CS-DUO: 100 ft. shielded CAT5/CAT6Max Cable Length to AD-24: 300 ft shielded CAT5/CAT6 cableBit Rate: 24-bit Digital Mixing and ProcessingSample Rate: 48 kHzUSB Output: 16-bit / 48 kHzDigital Format: Proprietary in systemExpansion: Option Card Slot
Output Power & THD+N:@22 200mW @ 1% THD+N, 100mW @ .03% THD +N
@32 250mW @ 1% THD+N, 100mW @ .014% THD +N
@64 250mW @ 1% THD+N, 100mW @ .005% THD +N
@300 130mW @ 1% THD+N, 100mW @ .003% THD +N
Frequency Response: 20 Hz - 22 kHz ± 3 dBS/N Ratio: 103 dBInput Impedance (aux in): 7.5 kCrosstalk (Left to Right): -103 dBMax Cable length from Mix16: 100 ft.Filter Q High Pass & Low Pass: .707Peak/Dip: 1.2Filter Cut/Boot Amount: +/- 6 dBAmbient Mic Gain: 25 dB

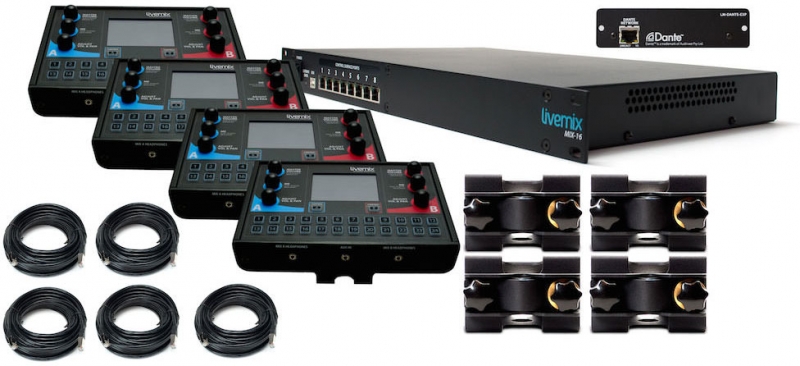

Livemix LM-DANTE-EXP - Dante digital network option cardLivemix MIX-16 - 16 mix central mixer4x Livemix CS-DUOs - dual mix personal mixers4x Livemix MT-1 - dual position mic stand mounts4x CBL-CAT6-50 - 50 shielded CAT6 cables (connects CS-DUO to MIX-16)1x CBL-CAT6-100 - 100 shielded CAT6 cables (connects AD-24 to MIX-16)
