DirectOut Technologies BREAKOUT.AN16I
Breakout Box 16ch analog input (XLR) Tascam format
The BREAKOUT Series is a range of adaptor boxes available in different variants to extend the coverage of the ANDIAMO series.

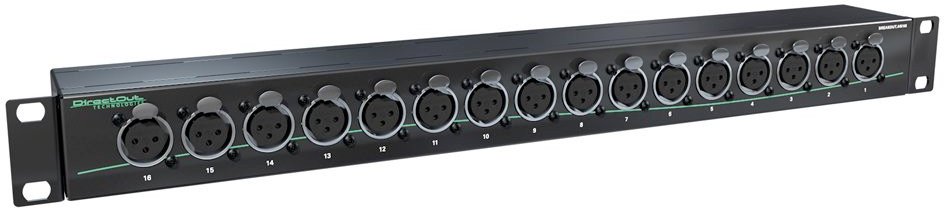

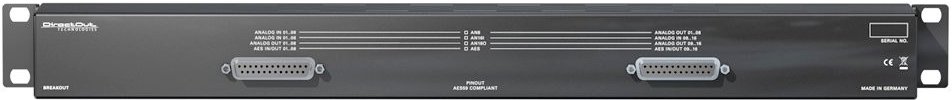

They are equipped with XLR or BNC connectors on the front panel and DSUB-25 connectors on the rear panel. Audio signals are carried passively between the front and rear panels.
The small form factor and angle brackets also allow for mounting the devices on the back of an ANDIAMO unit.
16 x XLR connector female
2 x DSUB-25, AES59 compliant
Width : 19" (483 mm)
Height : 1 RU (44.5 mm)
Depth : 65 mm
