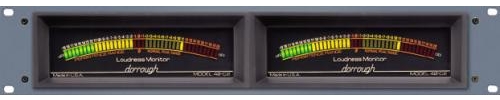

| Dorrough 40-C (Racked Pair) |
|
Dorrough 40-C (Racked Pair)
The 40-C has a scale allowing for 20dB of headroom in 1dB steps. The headroom scale is identical to the AES/EBU Digital Standard.
The 40-A series Loudness Meters are considered the standard models with built-in power supplies. They are the large ARC-Style, three color LED display single channel meters.
The Remote Control (RW-100) is now available for these units and will access the functions of phase correlation display, peak hold, sum/diff, and activate a reference mode allowing for accurate 0 setting within .1dB. A red LED notification alarm is present on the front of the unit.
Specifications
For Models 40-A, 10-A, 20-A, 12-A, 240-A, 280-A, 380-A, 400-A.
Input Parameters
Input Z : 20k Ohm balanced, 10k Ohm single-ended, +/- 2%
CMRR : 80 dB at 60 Hz, 60 dB at 20 kHz (balanced mode)Input Sensitivity : -10 dB for full-scale displayMaximum Input Level : +24 dB before clipping
Signal Path Parameters
Signal Path Bandwidth : 10 Hz - 25 kHz, +/- .25 dBSignal Path Distortion : Less than 1% THD at 1 kHz, +24 dB inputSum Error : Less than 0.1 dB at 1 kHzDifference Error : Less than 0.1 dB at 1 kHz
Display Parameters (All parameters apply to AVERAGE, PEAK, and PEAK HOLD display elements.)
Display Resolution : 40 LEDs, 1 dB/LED except model 60D, +/- 0.25 dB.Step Size Error : +/- 0.25 dBAbsolute Error :
- Full Scale -39 dBu : +/- 0.25 dB model A,B,C
- Full Scale -59 dBu : +/- 0.25 dB model D
Drift : +/- 0.25 dBAverage Time Constant : 600 mS, +/- 6%Peak Acquistion Period : 10 uS, to full-scale, sine input 25kHzPeak Attack Period : Virtually InstantaneousPeak Decay Period : 180 mS, from full-scale to all LEDs off (models A, B, C)Display Update Rate : Approximately 10 mSDisplay Duty Cycle : Display Time, AVERAGE, PEAK HOLD - 75%
Display Time, PEAK - 100%
Miscellaneous Parameters
Power Supply Input Range : 117/237 VAC RMS, -20% to +10%, 50-60 HzCalibration Controls : None neededUser Controls :
Left/Right input sensitivity
Option DIP Switch
A) Peak Auto [ON]
B) Difference Mode [ON/OFF]
C) Over Level Alarm [ENABLE]
D) Under Level Alarm [ENABLE]
E) Auto ARMP
User Port :
DB-9 Connector
A) Alarm relay closure contacts 1 form C, 1A, 30V AC or DC
B) Mode control switch (user supplied)
C) PEAK function switch (user supplied)
|
|
|
