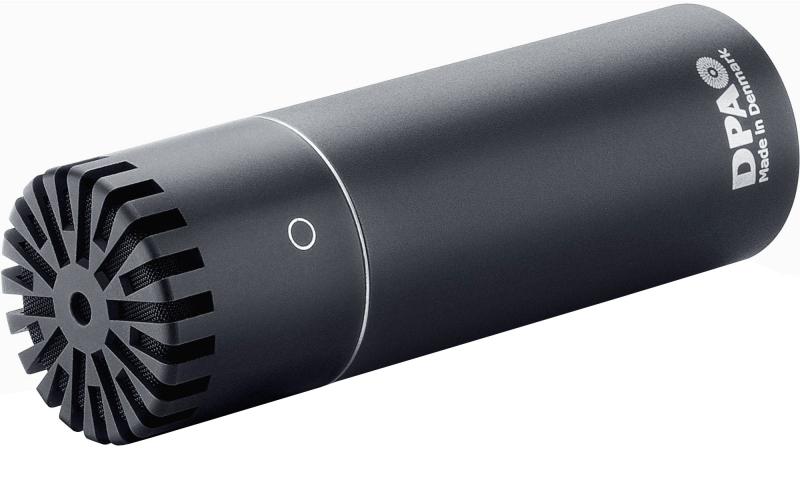

The d:dicate 2006C Twin Diaphragm Omnidirectional Microphone, Compact features a linear omnidirectional mic capsule. The distinctive sound is well balanced.
This condenser mic bridges the gap between the extreme sound quality of the d:dicate Microphones series and our well-known Miniature Microphones in the d:screet and d:fine series.
The microphone capsule
Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.
The capsules are loaded to the supreme d:dicate Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.
Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.
A truly flexible range
The d:dicate 2006C Twin Diaphragm Cardioid Microphone, Compact is part of the flexible d:dicate Microphones Series. It combines the MMC2006 Twin Diaphragm Cardioid Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more "body" to the low end than the d:dicate 2006A Twin Diaphragm Cardioid Microphone. It is also much easier to position than other cardioid mics.
Another option, for the true audiophile, is the d:dicate 2006A Twin Diaphragm Cardioid Microphone. It offers low distortion and totally accurate and faithful sound.
At any time, and with no tools needed, it is possible to transform the d:dicate 2006C Twin Diaphragm Cardioid Microphone, Compact into a new configuration. You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier.
The d:dicate 2006C Twin Diaphragm Cardioid Microphone, Compact is available as a sensitivity-selected stereo pair.
Acoustic authenticityLinear in a large frequency bandwidthTwin-Diaphragm-Capsule technologyModular flexibility
Directional characteristics: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range: 20 Hz - 20 kHz
Frequency range, ± 2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 130 dB SPL peak
Dynamic range: Typ. 114 dB
Max. SPL, peak before clipping: 139 dB
Output impedance: 100
Minimum load impedance: 2 k
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 50 dB
Power supply: 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Pin 1: shieldPin 2: signal + phasePin 3: - phase
Color: Matte black
Weight: 60 g (2.1 oz)
Microphone diameter: 19 mm (0.75 in)
Microphone length: 58 mm (2.3 in)
Output voltage, RMS: 4.5 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 to 45°C (-40 to 113°F)
Relative Humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ±1.5 dB
Manufacturer Part Number : 2006-C
