$11250.00

Free shipping in Canada. Conditions

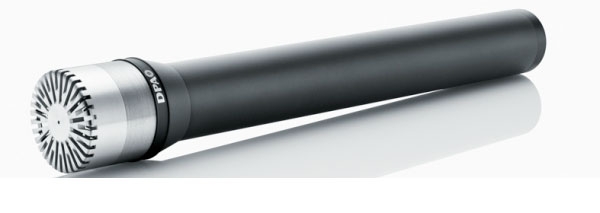

The d:dicate 3532-SP is a complete state-of-the-art A-B Stereo Kit with two d:dicate 4041-SP Microphones



They are carefully matched within ±0.5 dB on both frequency response and sensitivity in the entire frequency bandwidth.

This A-B stereo kit is the ultimate choice for the demanding engineer and audio purist who emphasizes clarity, openness, precision, low self-noise and high sensitivity.

The kit is designed for a broad range of uses; for classical, jazz and folk genres, grand pianos, guitars, overheads or close-miking drums, choirs, strings, wind instruments and much more.

You get a bright and transparent sound quality with lots of headroom. With its soft boost, which is present on-axis, and gradually goes towards linearity off-axis, these omnidirectional microphones can be angled to use as a natural equalizer. These mics are a part of the d:dicate Recording Microphones Series.

The microphone capsule
The diaphragm and housing are both made from stainless steel. This gives the capsule a unique immunity against ambient temperature variations. The precision-made back plate is placed in a quartz insulator for maximum electrical stability. This gives the MMC4041 Large Diagram Capsule a unique sensitivity of up to 90 mV/Pa.

The 4041-SP has a frequency response from 10 Hz to 20 kHz with a 4-6 dB soft boost around 8 kHz. Furthermore, the MMC4041 Large Diaphragm Capsule has extremely low self-noise of 7 dB(A) with the MMP4000-S. It also has enhanced SPL handling capability of up to 144 dB SPL before clipping occurs.

The MMC4041 Large Diaphragm Microphone Capsule can be unscrewed from the MMP4000-SP preamplifier, which allows you to exchange the preamplifier.

Features

  • Handles high sound pressure levels with no distortion
  • Natural and transparent sound
  • Specifications

    Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Condenser w. stainless steel diaphragm
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: 20 Hz - 20 kHz with 4 - 6 dB soft boost at 8 kHz
    Sensitivity, nominal, ±2 dB at 250 Hz: 70 mV/Pa; -23 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Max. 8 dB(A) re. 20 µPa
    Equivalent noise level, ITU-R BS.468-4: Max. 20 dB
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): 86 dB(A)
    Total harmonic distortion (THD): < 0.5% THD up to 120 dB SPL peak, < 1% THD up to 126 dB SPL peak
    Dynamic range: Typ. 118 dB
    Max. SPL, peak before clipping: 134 dB
    Output impedance: < 200
    Cable drive capability: Up to 100 m (328 ft)
    Power supply (for full performance): Via external power supply
    Current consumption: 2.20 mA
    Connector: 3-pin XLR-M (Standard P48)
    Weight: 190 g (6.7 oz)
    Capsule diameter: 24 mm (1 in)
    Microphone length: 170 mm (6.7 in)
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%

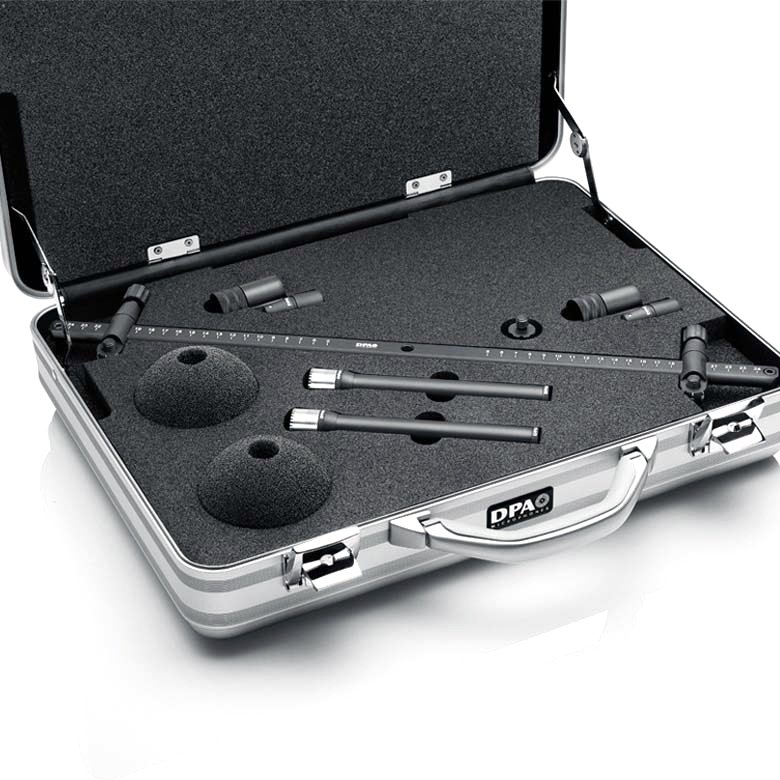

    What's In The Box
  • 2x MMC4041 large diaphragm capsule for MMP4000 (MMC4041)
  • 2X MMP4000-SP solid state preamplifier for MMC4041, P48 (MMP4000-SP)
  • 2x foam windscreen for d:dicate 4041 (DUA0040)
  • 2x microphone holder for d:dicate (UA0961)
  • 1x stereo boom for d:dicate (UA0837, UA0836)
  • Manufacturer Part Number : 3532-32
