This cardioid condenser microphone is renowned in recording studios and live applications around the world as an exceptional mic for its neutrality and accuracy.

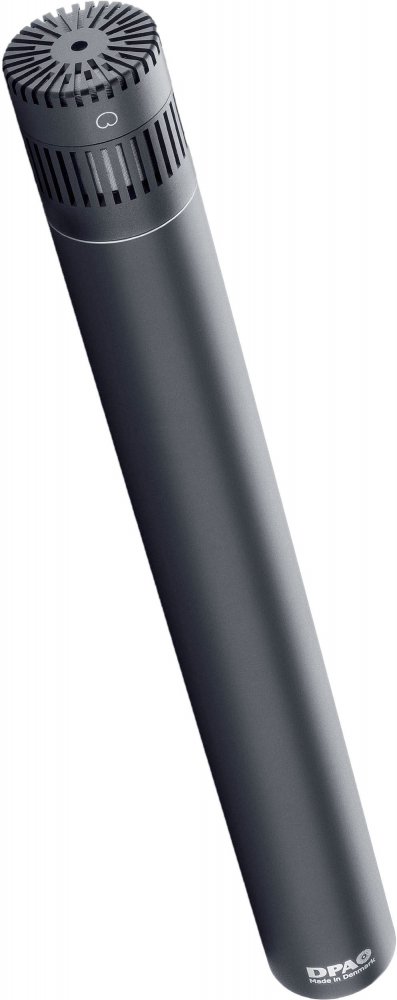

The d:dicate 4011A Cardioid Microphone is renowned in recording studios and live applications around the world as an exceptional mic. State-of-the-art components have been carefully selected to provide optimal neutrality, accuracy and extremely low distortion.
The microphone capsule
The principal appeal of the MMC4011 Cardioid Microphone Capsule is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.
It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the center of the XLR connector to attenuate the output of the microphone.
A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.
A truly flexible range
The 4011A Cardioid Microphone is part of the flexible d:dicate Microphone Series. The MMC4011 Cardioid Microphone Capsule coupled with the MMP-A Preamplifier is the worldwide reference standard for extreme sound level handling. For another option, match the MMC4011 Cardioid Microphone Capsule with the MMP-C Compact Preamplifier for compact and precise close-miking of the majority of instruments.
Close-mikingGreat for high sound levelsFactory-matched pair within ±1 dBAccurate soundColorless soundModular flexibility
Principle of operation: Pressure gradient
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ± 2 dB: 40 Hz - 20 kHz
Sensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, A-weighted: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)
Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peak
Dynamic range: Typ. 121 dB
Max. SPL, peak before clipping: 158 dB
Switchable attenuator, filters etc.: 0 dB / -20 dB
Output impedance: 200
Minimum load impedance: 2 k
Cable drive capability: 100 m (328 ft)
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection Ratio (CMRR): > 60 dB
Power supply: 48 V Phantom power (± 4 V)
Current consumption: 2.8 mA
Current consumption: Cardioid
Pin 1: shieldPin 2: signal + phasePin 3: - phase
Color: Matte black
Weight: 158 g (5.6 oz)
Microphone diameter: 19 mm (0.75 in)
Capsule diameter: 19 mm (0.75 in)
Microphone length: 170 mm (6.7 in)
Output voltage, RMS: 8 V
Polarity: +V at pin 2 for positive sound pressure
Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
Relative Humidity (RH): Up to 90%
Matching tolerance (frequency response and sensitivity): ± 1 dB
Phase deviation for kit: < 10°
Manufacturer Part Number : 4011-A
