MPN #4061-OC-C-B00
DPA 4061-OC-C-B00

$560.00

Free shipping in Canada. Conditions

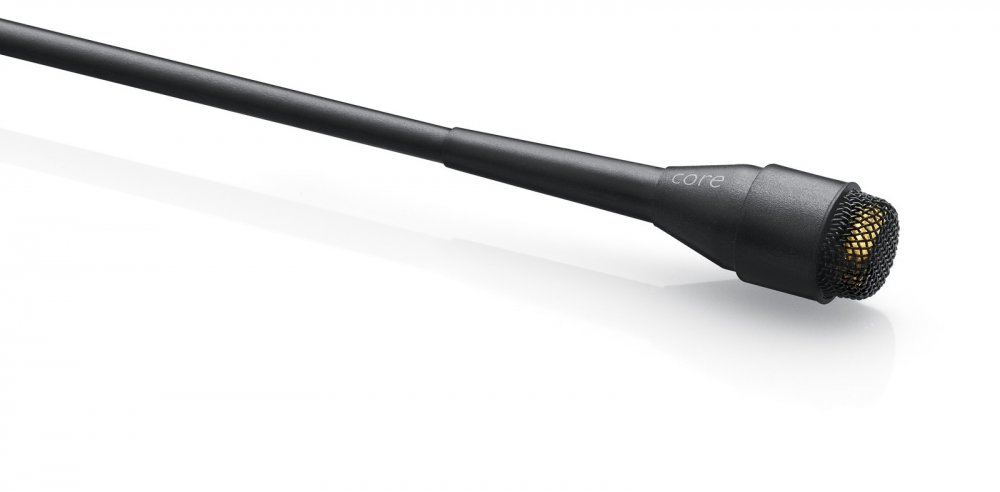

d:screet Core 4061 Miniature Omnidirectional Microphone, Loud SPL, with MicroDot Connector, Black color, no adapter included



The 4061-OC-C-B00 is designed for use with wireless systems in performance and theatrical presentations. The Core 4061 miniature microphone amplifier delivers a 4 dB increase in dynamic range and a 14 dB decrease in THD (total harmonic distortion) over the 4061 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.

The d:screet Core 4061 includes interchangeable capsule protection grids that alter the sonic character of the microphone. A high-boost grid creates a peak at 12 kHz, bringing an airy texture to audio signals. The soft-boost grid creates a subtle boost between 8 to 20 kHz, enhancing signal presence.

With an SPL rating of 144 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The Core 4061 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters, or power supplies with standard XLR outputs.
  • Rugged and reliable
  • Natural audio quality
  • Low-noise
  • Large selection of accessories
  • Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
    Distortion, THD < 1% - CORE: 134 dB SPL RMS, 137 dB SPL peak
    Dynamic range - CORE: Typ. 111 dB
    Max. SPL, THD 10%: 144 dB SPL peak
    Rated output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
    Power supply (for full performance):
    For wireless systems Min. 5 V - max. 10 V through DPA adapter
    With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
    Current consumption Typ.: 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

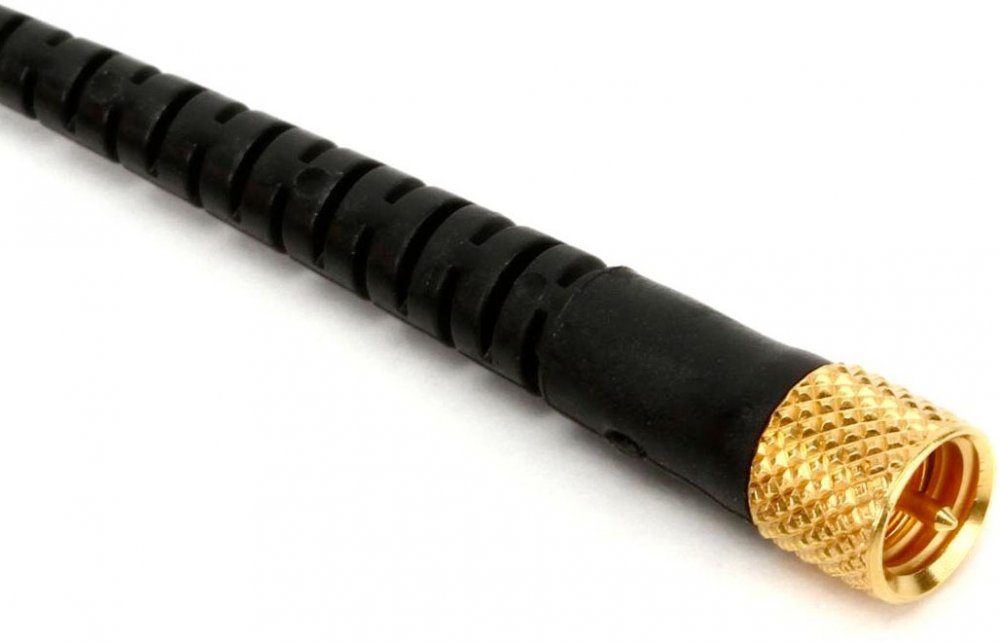

    Connector: MicroDot
    Color: Black,
    Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
    Microphone diameter: 5.4 mm (0.21 in)
    Microphone length: 12.7 mm (0.5 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%
    Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
