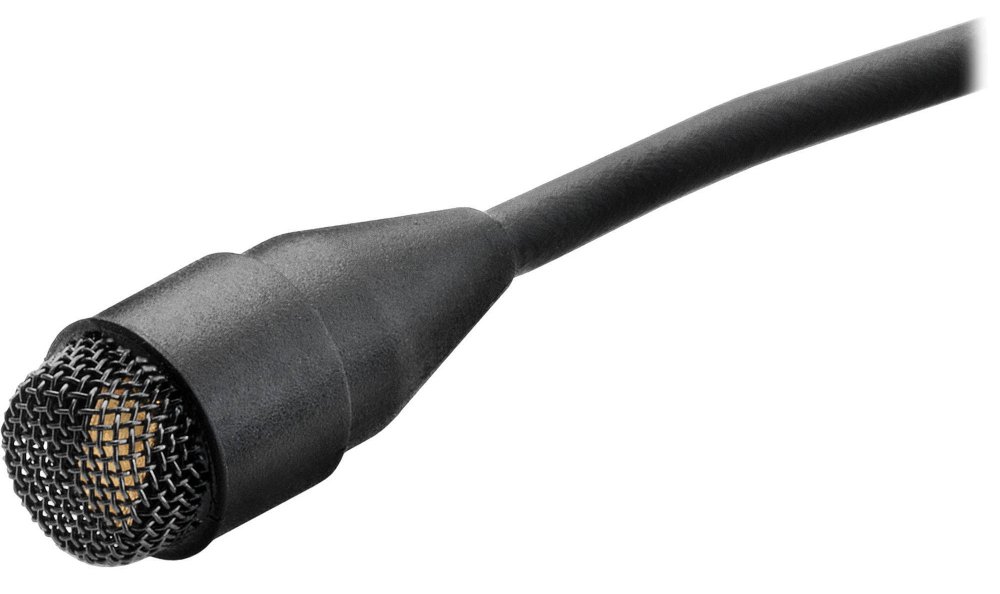

d:screet Legacy 4062 Miniature Omnidirectional Microphone, Extreme SPL, Black with 3-pin LEMO Connector

The 4062-OL-C-B00 is designed for use with wireless systems in performance and theatrical presentations. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.

Caractéristiques

  • Rugged and reliable
  • Natural audio quality
  • Low-noise
  • Large selection of accessories
  • Spécifications

    Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
    Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
    Distortion, THD < 1% - Legacy: 120 dB SPL RMS, 123 dB SPL peak
    Dynamic range - Legacy: Typ. 100 dB
    Max. SPL, peak before clipping: 154 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)
    Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
    Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
    Connector: 3-pin LEMO
    Color: Black
    Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
    Microphone diameter: 5.4 mm (0.21 in)
    Microphone length: 12.7 mm (0.5 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%

    In the Box:
  • DPA Microphones d:screet Legacy 4062 Miniature Omnidirectional Microphone with 3-pin LEMO Connector (Extreme SPL, Black)
  • High-Boost Protection Grid
  • Soft-Boost Protection Grid
