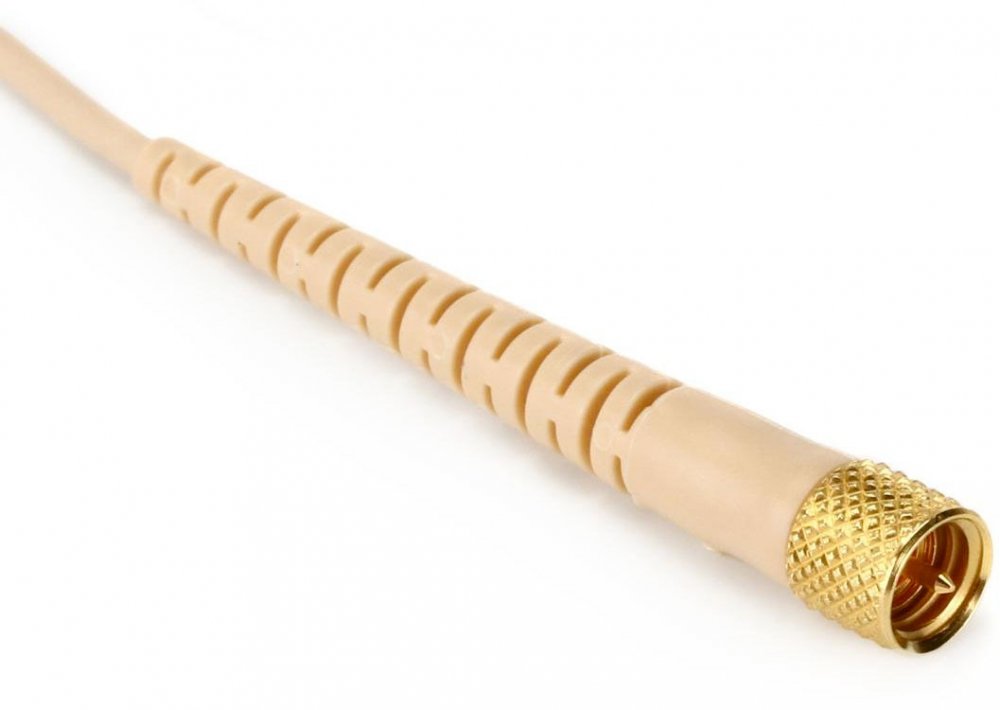

d:fineTM Core 4066 Omnidirectional Headset Mic, Beige, MicroDot termination, no connector included

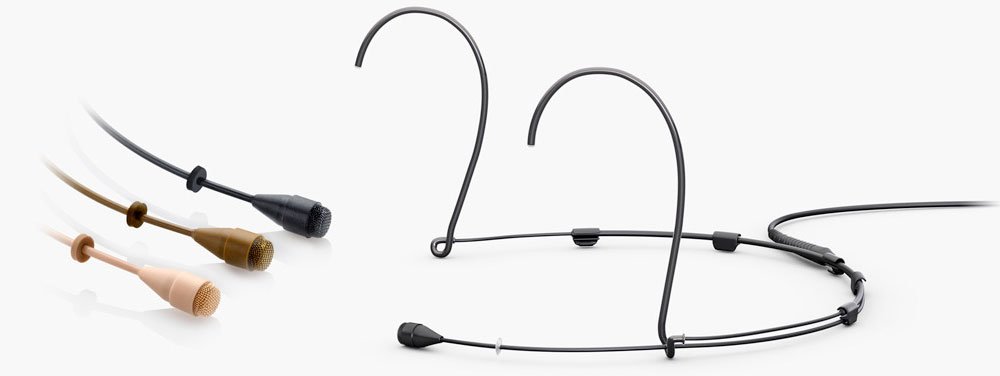

The headset construction is unique. You can detach the mic boom from the headset mount to switch it to either the left or right side and then reattach it. Humidity, often an issue in theatrical applications is not a problem. This microphone is constructed with a double-vent protection system and a drop stopper on the microphone boom. Also, the materials inside the mic are water resistant. These design elements make it very difficult for the microphone to fail due to humidity. In addition, the headset surface is matte-gold plated and the ear hooks are covered with a silicone hose.
The microphone's sensitivity is 6 mV/Pa. This matches the level of the human voice to the general input sensitivity of most wireless transmitters. If powered correctly, the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine?, d:screet? and d:vote? series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.
Find the adapter that fits your wireless system.
Resistant to humidityAvailable in three colors and three sizesModular adapter system fits most professional wireless systemsDouble-vent protection system
Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHzHigh boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
Total harmonic distortion (THD) - Legacy: < 1% THD up to 123 dB SPL peak, < 1% THD up to 120 dB SPL RMS sine
Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
Dynamic range - Legacy: Typ. 97 dB
Dynamic range - CORE: Typ. 111 dB
Max. SPL, peak before clipping: 144 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 50 V through DPA adapter.With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Weight: 14 g (0.5 oz) incl. Cable and Connector
Microphone diameter: 5.4 mm (0.21 in)
Cable length: 1.2 m (3.9 ft)
Cable diameter: 1.6 mm (0.06 in)
Polarity Positively: increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40°C to 45°C (-40°F to 113°F)
Relative humidity: (RH) Up to 90%
