MPN #4080-DC-D-B00

$715.00

Financing available
Free shipping in Canada. Conditions

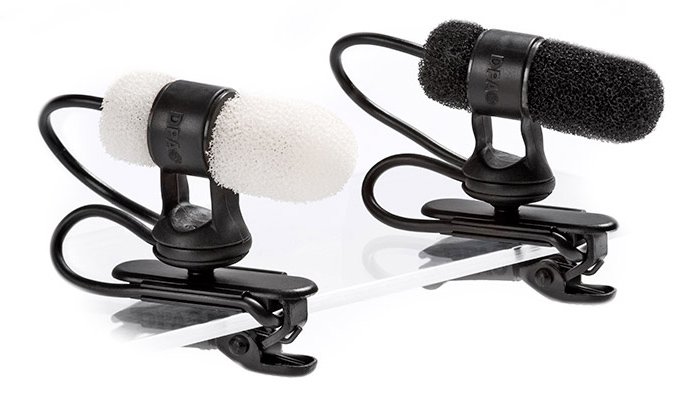

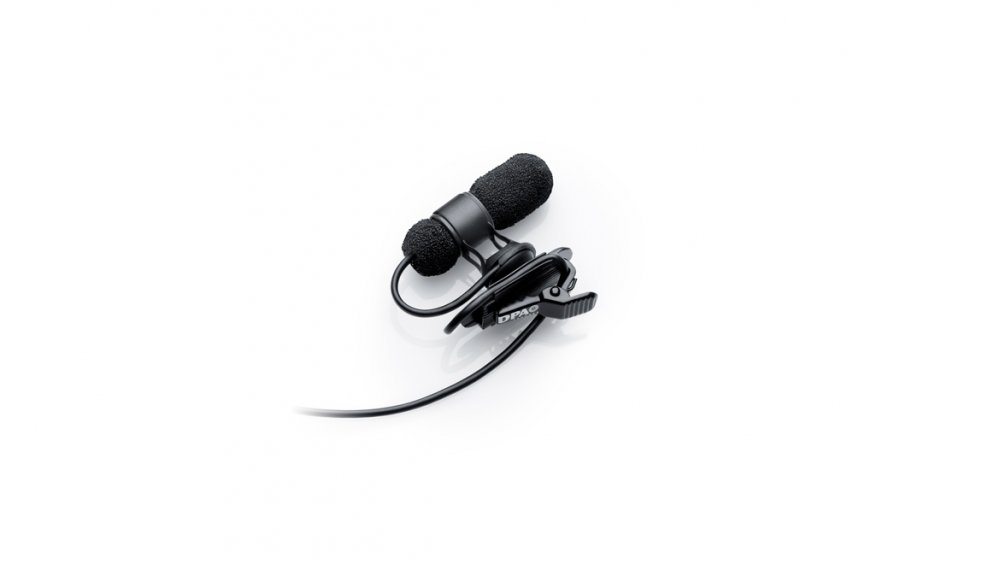

DPA Microphones d:screet Core 4080 Miniature Cardioid Lavalier Microphone with a Microdot Termination (Black)



The 4080-DC-D-B00 Miniature Cardioid Lavalier Microphone is designed for speech reproduction in broadcast, conference, and live applications in the studio or the field. It features a pre-EQ'd 4dB presence boost to help accentuate vocals and the speaking range. The 4080 can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.

This Core 4080 microphone captures the human voice with a high degree of definition and offers maximum side rejection and natural sonic focus on the subject. The microphone cable is 3.9' in length and terminates to a MicroDot connector that is compatible with MicroDot-equiped wireless systems. It can be clipped to both left- and right-buttoned shirts and includes black and white pop filters.
  • Excellent speech reproduction
  • Discreet, compact design
  • Fist both left and right buttoned shirts
  • Includes both black and white pop filters
  • Modular adapter system fits most professional wireless systems
  • Pre-EQ'd 4 dB Presence Boost
  • Directional characteristics: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency range, ± 2 dB: 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
  • Sensitivity, nominal, ±3 dB at 1 kHz:: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
  • S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 71 dB(A)
  • Total harmonic distortion (THD): < 1 % up to 123 dB SPL peak, < 1 % up to 120 dB SPL RMS sine
  • Dynamic range: Typ. 100 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: 30 - 40 ohm
  • Power supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance.
  • Connector: MicroDot
  • Color: Black
  • Microphone weight: 15 g (0.5 oz) incl. cable and MicroDot connector
  • Microphone diameter: 10 mm (0.4 in)
  • Capsule diameter: 5.4 mm (0.2 in)
  • Microphone length: 30 mm (1.2 in)
  • Cable length: 1.2 m (4 ft)
  • Cable color: Black
  • Cable diameter: 1.6 mm (0.06 in)
  • Cable drive capability: Up to 300 m (984 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin

  • In the Box
  • DPA Microphones d:screet Core 4080 Miniature Cardioid Lavalier Microphone with MicroDot Connector, Black color
  • Black Pop Filter
  • White Pop Filter
