DPA 4099-DC-1
MPN #4099-DC-1
Single mic, CORE plus technology, loud SPL handling, 145 dB peak, supercardioid pattern, wide frequency range, enhanced isolation, MicroLock connector, black finish.

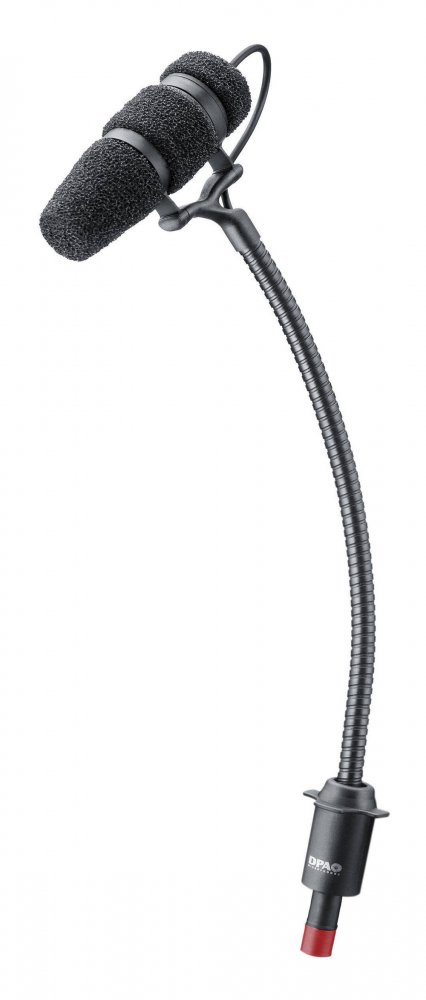

The DPA 4099-DC-1 is a versatile, high-SPL instrument microphone designed for musicians and engineers who require pristine sound capture across a wide range of acoustic instruments. Featuring a supercardioid pickup pattern and DPA's CORE technology, it delivers exceptional clarity, low distortion, and a wide dynamic range, making it ideal for both live and studio applications. Its compact form factor and flexible gooseneck allow for precise positioning, ensuring optimal sound capture without interfering with performance.
The 4099-DC-1 is compatible with DPA's extensive range of mounting clips, allowing it to be securely attached to various instruments such as guitars, violins, cellos, and more. Its MicroDot connector enables seamless integration with both wired and wireless systems, providing flexibility for different setups. Whether you're close-miking a delicate string instrument or capturing the robust tones of brass, the 4099-DC-1 offers a reliable solution that maintains the natural character of the instrument.
Features
Captures natural, detailed sound from acoustic instrumentsCORE+ technology ensures enhanced clarity and wider dynamic rangeHandles loud instruments with ease (up to 145 dB peak)Supercardioid pattern offers excellent isolation and feedback rejectionMicroLock connector and upgraded shock mount improve reliability and reduce handling noiseCompatible with DPA's flexible clip system for mounting on a variety of instrumentsLightweight and discreet design fits seamlessly into any performance setting
Specifications
Microphone Type
Prepolarized condenserPressure gradient principle
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range +/-2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per PaSensitivity tolerance +/-3 dB at 1 kHz
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
<0.5 percent: 135 dB SPL RMS, 138 dB SPL peak<1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL (THD 10 percent): 145 dB SPL peak
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith XLR Adapter DAD9099 or DAD9001: 100 ohm
Cable Drive Capability
Up to 300 meters with XLR adapter
Output Balance Principle
Signal balanced with XLR adapter
Common Mode Rejection Ratio
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired: P48 phantom power, will function from 12 V
Current Consumption
1.5 mA for microphone3.5 mA with XLR adapter
Connector
MicroLock
Dimensions
Microphone diameter: 5.7 mmMicrophone length: 50 mmCable length: 1.8 metersGooseneck length: 140 mmCable diameter: 1.6 mm and 2.2 mm
Weight
Microphone: 18 g
Environmental Conditions
Temperature range: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Technology and Design
CORE Plus technologyRed marking on gooseneck for Loud SPLIP58 certifiedEnhanced shock mount and gooseneck mountCompatible with a range of instrument clipsDetachable cable with MicroLock connectorDesigned for high SPL applications with wide dynamic range and low distortion
