DPA 4099-DP-1-101-CM
MPN #4099-DP-1-101-CM
CORE plus clarity, 145 dB peak, clamp mount included, loud SPL capture, supercardioid pattern, wide dynamic range, MicroLock connector, enhanced isolation.
The DPA 4099-DP-1-101-CM brings the exceptional clarity and sonic fidelity of the CORE+ series to a convenient, instrument-friendly setup. Specifically tailored for louder acoustic instruments, this model includes the 4099 CORE+ microphone with a Loud SPL rating-able to handle up to 145 dB peak SPL-making it a perfect match for everything from percussion and brass to woodwinds and amplified acoustic guitars.

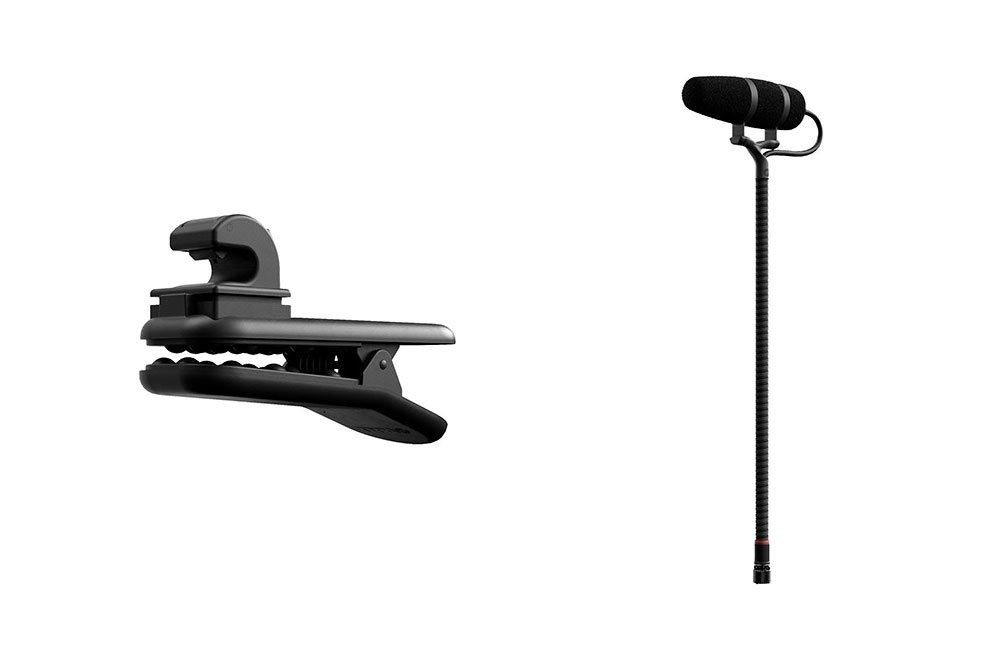

Included with this package is the CM-CLIP, a versatile clamp mount that attaches securely to various instrument bodies without causing damage, allowing for precise mic placement with minimal setup time. The microphone's supercardioid pattern ensures excellent isolation from nearby sources, while the upgraded shock mount and gooseneck design offer enhanced stability and easy, one-handed positioning.
The 4099-DP-1-101-CM is a reliable and flexible choice for both stage and studio, combining DPA's natural sound reproduction with smart mounting solutions for high-SPL environments. Whether you're performing live or recording intricate instrumental passages, this system ensures that every nuance is captured with clarity and balance.
Features
Captures natural, high-quality sound from loud acoustic instrumentsHandles peak sound pressure up to 145 dB without distortionClamp mount securely attaches to a wide range of instrumentsSupercardioid pattern offers focused pickup with strong off-axis rejectionCORE+ technology improves clarity, dynamic range, and headroomGooseneck with locking system allows precise, stable mic placementMicroLock connector ensures reliable cable connection and wireless compatibilityEnhanced shock mount design minimizes handling and vibration noiseIdeal for use on brass, drums, percussion, and other high-SPL instruments
Specifications
Microphone Type
Prepolarized condenserPressure gradient principle
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range plusminus 2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per Pa
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
Less than 0 point 5 percent: 135 dB SPL RMS, 138 dB SPL peakLess than 1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL at 10 percent THD: 145 dB SPL peak
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith DAD9099 or DAD9001 XLR Adapter: 100 ohm
Cable Drive Capability
Up to 300 meters with DAD9099 or DAD9001
Output Balance
Balanced with XLR Adapter
CMRR
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired with XLR: P48 phantom power minimum 12 V
Current Consumption
Microphone: 1 point 5 mAWith XLR Adapter: 3 point 5 mA
Connector
MicroLock
Mount Type
Clamp Mount (CMCLIP)Weight of CMCLIP: 16 g
Dimensions
Microphone diameter: 5 point 7 mmMicrophone length: 50 mmGooseneck length: 140 mmCable length: 1 point 8 mCable diameter: 1 point 6 mm and 2 point 2 mm
Weight
Microphone: 18 gMicrophone with Clamp Mount: 34 g
Environmental
Temperature range: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Identification
Red marking on gooseneck for Loud SPL
Technology
CORE PlusMicroLock connectorIP58 certifiedEnhanced gooseneck and shock mount system for vibration isolation
