DPA 4099-DP-1-101-P
MPN #4099-DP-1-101-P
Stereo piano system, 2 CORE plus mics, loud SPL handling, 145 dB peak, +/-1 dB sensitivity match, supercardioid pattern, MicroLock connectors, piano clips included.
The DPA 4099-DP-1-101-P is a premium stereo microphone solution for piano, tailored for live performances and studio applications where accurate, high-SPL capture is essential. This CORE+ stereo system includes two matched 4099 CORE+ microphones, each engineered for Loud SPL handling (up to 145 dB peak SPL), ensuring distortion-free, natural sound even under dynamic playing conditions.

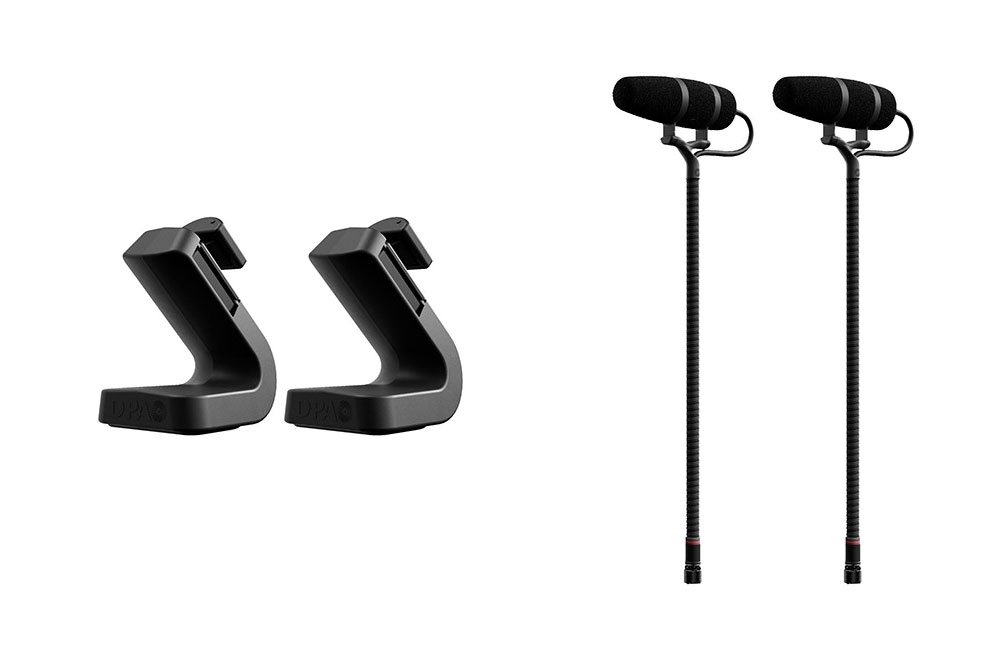

Designed specifically for grand and upright pianos, this stereo kit features DPA's refined gooseneck mounts and updated P-CLIP piano clips, offering secure and precise mic positioning on the instrument's frame or body. The supercardioid polar pattern of each mic provides excellent rejection of ambient noise and nearby instruments, delivering a focused, detailed piano image with remarkable depth and dimensionality.
With DPA's CORE+ technology at its heart, this system enhances dynamic range and sonic authenticity, making it an ideal choice for demanding classical performances, jazz ensembles, or high-end studio recording. The 4099-DP-1-101-P ensures a clean, expressive piano sound that remains faithful to the instrument's true character, all while offering superior mounting flexibility and reliability.
Caractéristiques
Stereo microphone system designed specifically for close-miking grand or upright pianosIncludes two matched 4099 CORE+ mics with loud SPL handling for rich, detailed piano soundCaptures natural tone with high clarity and low distortion, even at high volume levelsCORE+ technology enhances dynamic range and increases headroom for accurate performanceSupercardioid pattern ensures excellent isolation from nearby instruments and stage noiseFlexible goosenecks with secure mounting system allow precise mic positioning inside the pianoLow-profile, discreet design blends seamlessly into live or studio environmentsReliable MicroLock connector for easy setup and wireless system compatibilityIdeal for classical, jazz, and contemporary live or recorded piano performances
Spécifications
Microphone Type
Prepolarized condenserPressure gradient principle
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range plusminus 2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per PaStereo pair matched within plusminus 1 dB at 1 kHz
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
Less than 0 point 5 percent: 135 dB SPL RMS, 138 dB SPL peakLess than 1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL at 10 percent THD: 145 dB SPL peak
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith DAD9099 or DAD9001 XLR Adapter: 100 ohm
Cable Drive Capability
Up to 300 meters with DAD9099 or DAD9001
Output Balance
Balanced with XLR Adapter
CMRR
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired with XLR: P48 phantom power minimum 12 V
Current Consumption
Microphone: 1 point 5 mAWith XLR Adapter: 3 point 5 mA
Connector
MicroLock
Mount Type
PCLIP Piano MountMount weight: 20 g per clip
Dimensions
Microphone diameter: 5 point 7 mmMicrophone length: 50 mmGooseneck length: 140 mmCable length: 1 point 8 mCable diameter: 1 point 6 mm and 2 point 2 mm
Weight
Microphone: 18 g each
Environmental
Temperature range: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Identification
Red marking on gooseneck for Loud SPL
Technology
CORE PlusStereo pair matchedMicroLock connectorIP58 certifiedIncludes dual piano mounting systemEnhanced gooseneck and shock mount for vibration isolation
