DPA 4099-DP-1-199-S
MPN #4099-DP-1-199-S
CORE plus mic, loud SPL handling, 145 dB peak, supercardioid pattern, MicroLock connector, saxophone clip included, high isolation, clear natural sound.
The DPA 4099-DP-1-199-S CORE+ microphone is a premium solution for close-miking saxophones in both live and studio environments. Designed to handle Loud SPLs up to 145 dB, it effortlessly captures the full tonal depth and expressive dynamics of the saxophone without distortion or coloration.

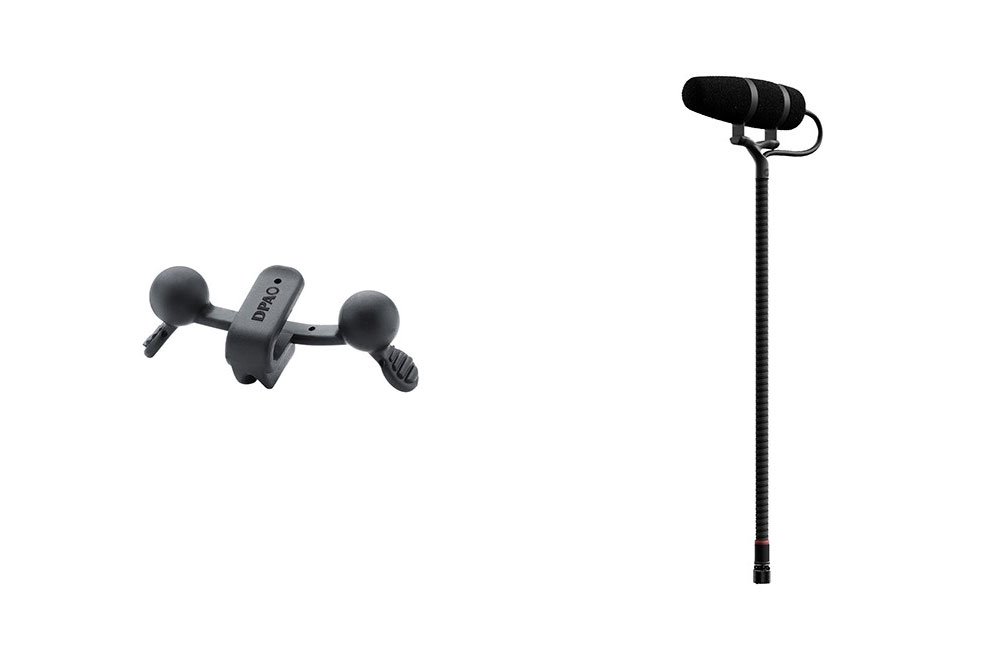

This model includes the STC4099 clip, purpose-built for saxophones and other wind instruments. It provides a secure yet instrument-friendly mounting, ensuring optimal mic placement and stability-even during energetic performances. The supercardioid pickup pattern offers focused sound capture with excellent rejection of off-axis noise, making it ideal for high-volume stages or tightly mic'd ensemble settings.
With CORE+ technology inside, this microphone delivers an expanded dynamic range and improved clarity, ensuring that every nuance of your performance is preserved. The 4099-DP-1-199-S is the ideal choice for saxophonists who demand pristine sound quality, reliable mounting, and minimal visual footprint.
Features
Precision microphone designed specifically for saxophone and similar wind instrumentsCORE+ technology ensures natural, detailed sound with enhanced clarity and dynamic rangeLoud SPL version captures strong sound levels without distortion or loss of nuanceSupercardioid pattern offers excellent off-axis rejection for clear isolation in live settingsIncludes dedicated saxophone clip for secure, instrument-safe mounting and easy repositioningFlexible gooseneck allows optimal mic placement while staying out of the performer's wayMicroLock connector provides stable connection and wireless system compatibilityPerfect for stage, studio, and touring use with consistent, professional-grade results
Specifications
Microphone Type
Prepolarized condenserPressure gradient operation
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range plusminus 2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per Pa
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
Less than 0 point 5 percent: 135 dB SPL RMS, 138 dB SPL peakLess than 1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL at 10 percent THD: 145 dB SPL peak
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith DAD9099 or DAD9001 XLR Adapter: 100 ohm
Cable Drive Capability
Up to 300 meters with XLR adapter
Output Balance
Balanced signal with XLR adapter
CMRR
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired: P48 phantom power, minimum 12 V
Current Consumption
1 point 5 mA for microphone3 point 5 mA with XLR adapter
Connector
MicroLock
Mount Type
STC4099 Saxophone ClipClip weight: 7 g
Dimensions
Microphone diameter: 5 point 7 mmMicrophone length: 50 mmGooseneck length: 140 mmCable length: 1 point 8 metersCable diameter: 1 point 6 mm and 2 point 2 mm
Weight
Microphone: 18 g
Environmental
Operating temperature: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Identification
Red marking on gooseneck for Loud SPL
Technology
CORE PlusMicroLock connectorIP58 certifiedEnhanced shock mount and gooseneck stabilityDesigned for saxophone with optimized isolation and clarity
