DPA 4166-OC-F-C00-LH

$860.00

Free shipping in Canada. Conditions

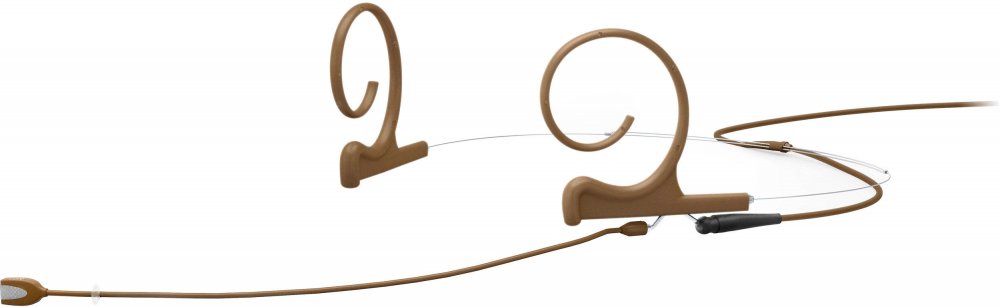

The d:fine Flex 4166 Omnidirectional Headset Microphone offers clean and transparent sound quality with lots of headroom. Brown, MicroDot termination, no adapter included.



The 4166 combines the legendary sound of the 4066 headset microphone with a lightweight and flexible headset system, this condenser mic is easy and fast to adjust and offers clean and transparent sound quality with lots of headroom.

Features

  • Resistant to humidity
  • Double-vent protection system
  • Available in three colors and three sizes
  • Modular adapter system fits most professional wireless systems
  • Boom length is 110 mm (4.3 in) (the standard choice for most users)
  • Specifications

    Directional pattern: Omnidirectional
    Boom Length: Long (110 mm)
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz

    Frequency range, ±2 dB
  • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
  • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

  • Sensitivity, nominal, ±3 dB at 1 kHz:: 6 mV/Pa; -44 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
    Total harmonic distortion (THD) - Legacy: < 1% THD up to 123 dB SPL peak, < 1% THD up to 120 dB SPL RMS sine
    Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
    Dynamic range - Legacy: Typ. 97 dB
    Dynamic range - CORE: Typ. 111 dB
    Max. SPL, peak before clipping: 144 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)

    Power supply (for full performance)
  • For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
  • With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance

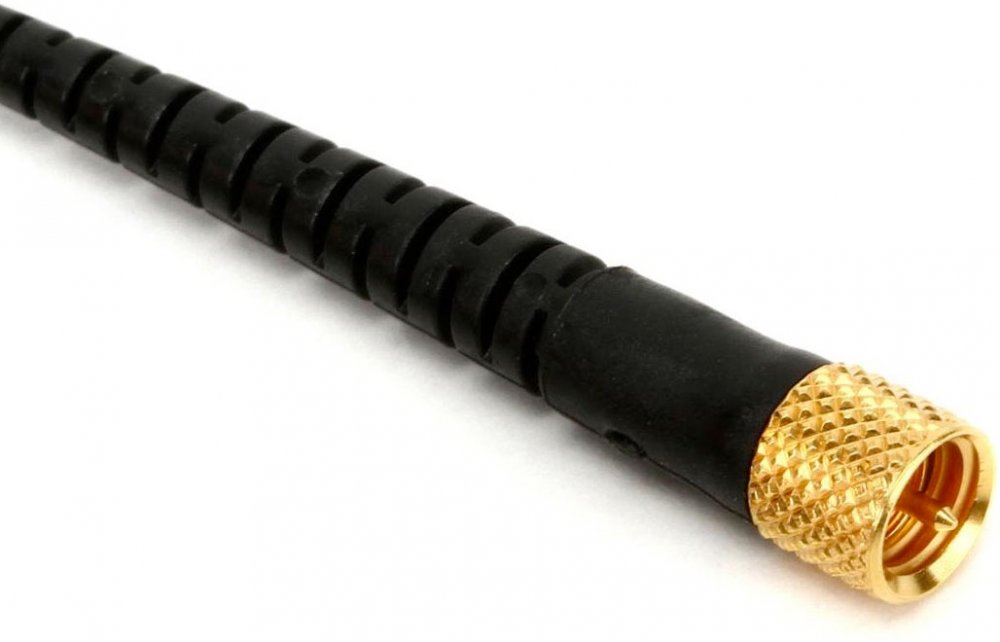

  • Connector: MicroDot
    Color: Brown
    Weight: 14 g (0.5 oz) incl. Cable and Connector
    Microphone diameter: 5.4 mm (0.21 in)
    Cable length: 1.2 m (3.9 ft)
    Cable diameter: 1.6 mm (0.06 in)
    Polarity Positively: increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity: (RH) Up to 90%
    Manufacturer Part Number : 4166-OC-F-C00-LH
